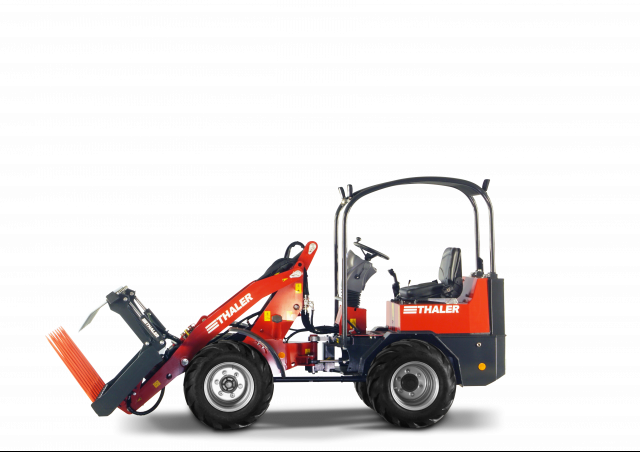

2231 H Thaler 2231 H Specifications & Technical Data (2016—2020)
Technical specs - 2231 H Thaler
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.67 t
- operating weight
- 1.87 t
- Standard tyres
- 10.0/75-15.3
- Tipping load
- 1100 kg
- Wheel base
- 1.572 m
- Travel speed
- 18 km/h
- Steering mode
- KL
- max. height at the shovel pivot point
- 2.935 m
- Max. discharge height
- 2.22 m
- Turning radius outside
- 2.1 m
- Turning radius inside
- 1.03 m
- Transport length
- 3.42 m
- Transport width
- 1.12 m
- Transport height
- 2.21 m
- Engine manuf.
- Yanmar
- Engine type
- k.A.
- Engine power
- 23 kW
- Displacement
- 1.33 l
- Revolutions at max torque
- 3000 rpm
- No. of cylinders
- 3
- Emission level
- IIIA
More technical details, like: overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
