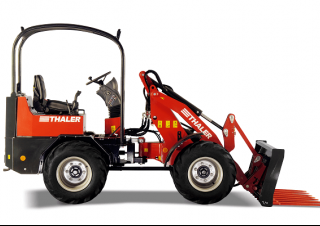

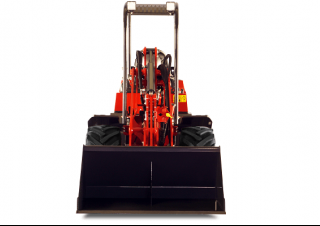

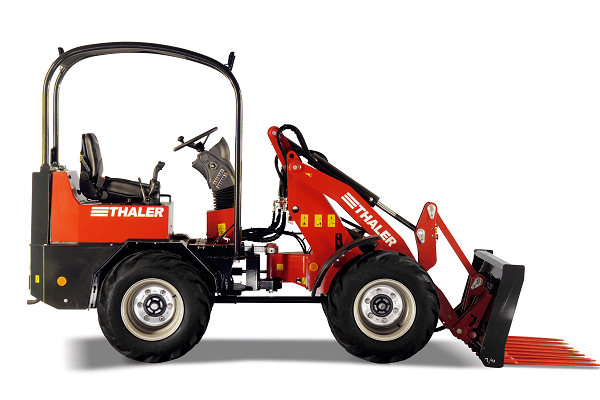

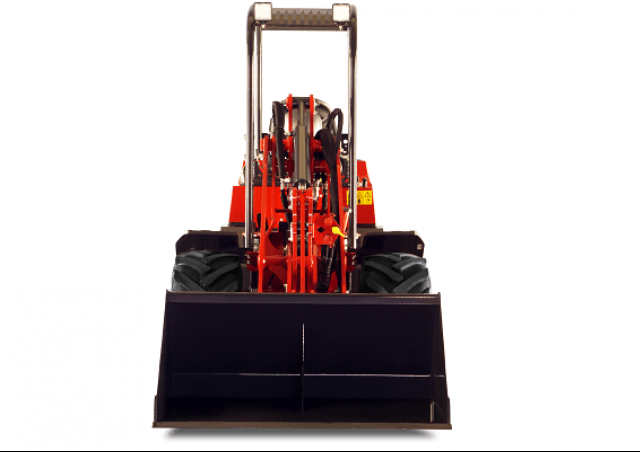

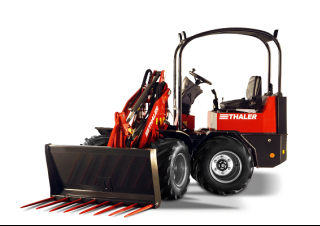

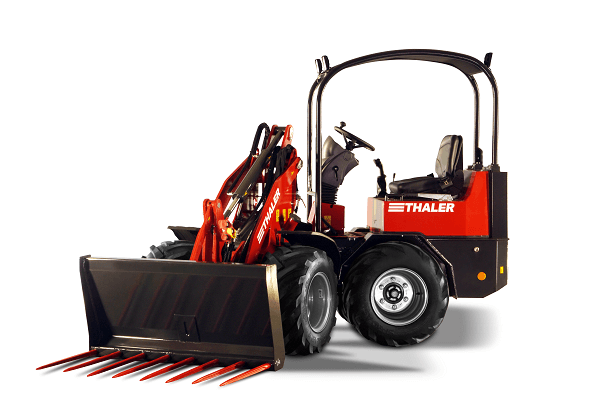

2230 S Thaler 2230 S Specifications & Technical Data (2020—2026)

Weight: 1.6t – operating weight: 1.82t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 900kg – Wheel base: 1.572m – Travel speed: 16km/h

Technical specs - 2230 S Thaler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.6 t
operating weight
1.82 t
Standard tyres
10.0/75-15.3 AS
Tipping load
900 kg
Wheel base
1.572 m
Travel speed
16 km/h
Steering mode
KL
max. height at the shovel pivot point
2.76 m
Overcharging height
2.58 m
Max. discharge height
2.04 m
Turning radius outside
2.1 m
Turning radius inside
1.03 m
Transport length
3.11 m
Transport width
1.12 m
Transport height
2.21 m
Engine manuf.
Yanmar
Engine type
k.A.
Engine power
18.9 kW
Displacement
1.331 l
Revolutions at max torque
2800 rpm
Max. torque
86.8/1200 Nm
No. of cylinders
3
Emission level
V

More technical details, like: model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Thaler 2230 S FAQ

When did production of the Thaler 2230 S start?

The Thaler 2230 S was first produced in 2020.

What are the weight specifications for the Thaler 2230 S?

The Thaler 2230 S has a standard weight of 1.6 tonnes and an operating weight of 1.82 tonnes.

What are the transport dimensions of the Thaler 2230 S?

The Thaler 2230 S has a transport length of 3.11 meters, a transport width of 1.12 meters, and a transport height of 2.21 meters.

What is the travel speed of the Thaler 2230 S yard loader?

The Thaler 2230 S yard loader has a travel speed of 16 km/h.

What are the maneuverability specifications of the Thaler 2230 S?

The Thaler 2230 S features articulated-frame steering with an outside turning radius of 2.1 meters and an inside turning radius of 1.03 meters.

What are the standard tyre specifications for the Thaler 2230 S?

The Thaler 2230 S is equipped with standard tyres sized 10.0/75-15.3 AS.

What is the wheelbase of the Thaler 2230 S yard loader?

The Thaler 2230 S has a wheelbase of 1.572 meters.

What is the mass capacity of the Thaler 2230 S?

The Thaler 2230 S has a tipping load capacity of 900 kilograms.

What are the working height and reach specifications of the Thaler 2230 S?

The Thaler 2230 S has an overcharging height of 2.58 meters, a maximum discharge height of 2.04 meters, and a maximum height at the shovel pivot point of 2.76 meters.
