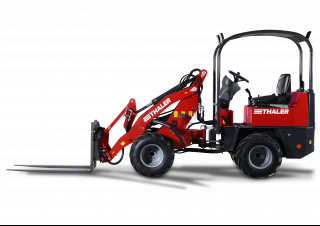

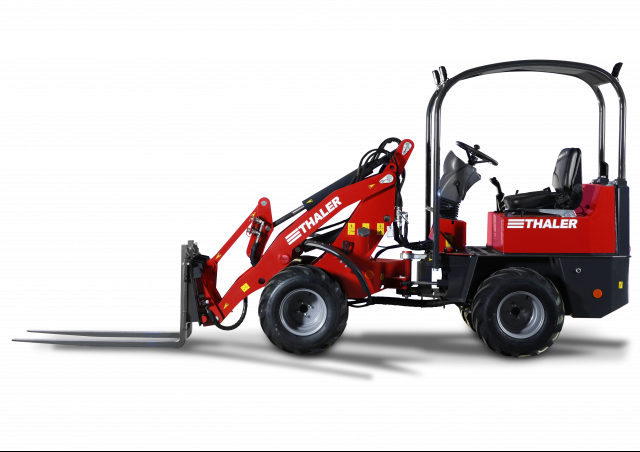

2226 H Thaler 2226 H Specifications & Technical Data (2016—2026)
Technical specs - 2226 H Thaler
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.5 t
- operating weight
- 1.66 t
- Standard tyres
- 7.00-12
- Tipping load
- 700 kg
- Wheel base
- 1.523 m
- Travel speed
- 12 km/h
- Steering mode
- KL
- max. height at the shovel pivot point
- 2.87 m
- Overcharging height
- 2.66 m
- Max. discharge height
- 2.14 m
- Turning radius outside
- 1.955 m
- Turning radius inside
- 1 m
- Transport length
- 3.325 m
- Transport width
- 0.92 m
- Transport height
- 2.16 m
- Engine manuf.
- Yanmar
- Engine type
- k.A.
- Engine power
- 14.6 kW
- Displacement
- 0.9 l
- Revolutions at max torque
- 3000 rpm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
