9640 T-3 Schäffer 9640 T-3 Specifications & Technical Data (2025—2026)

Weight: 9.7t – Standard tyres: 460/70R24 AS – Tipping load: 5940kg – Wheel base: 2.615m – Travel speed: 20km/h – Steering mode: KL

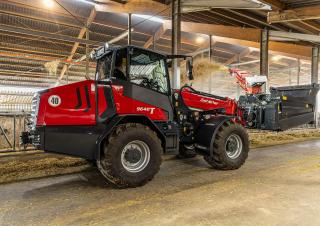

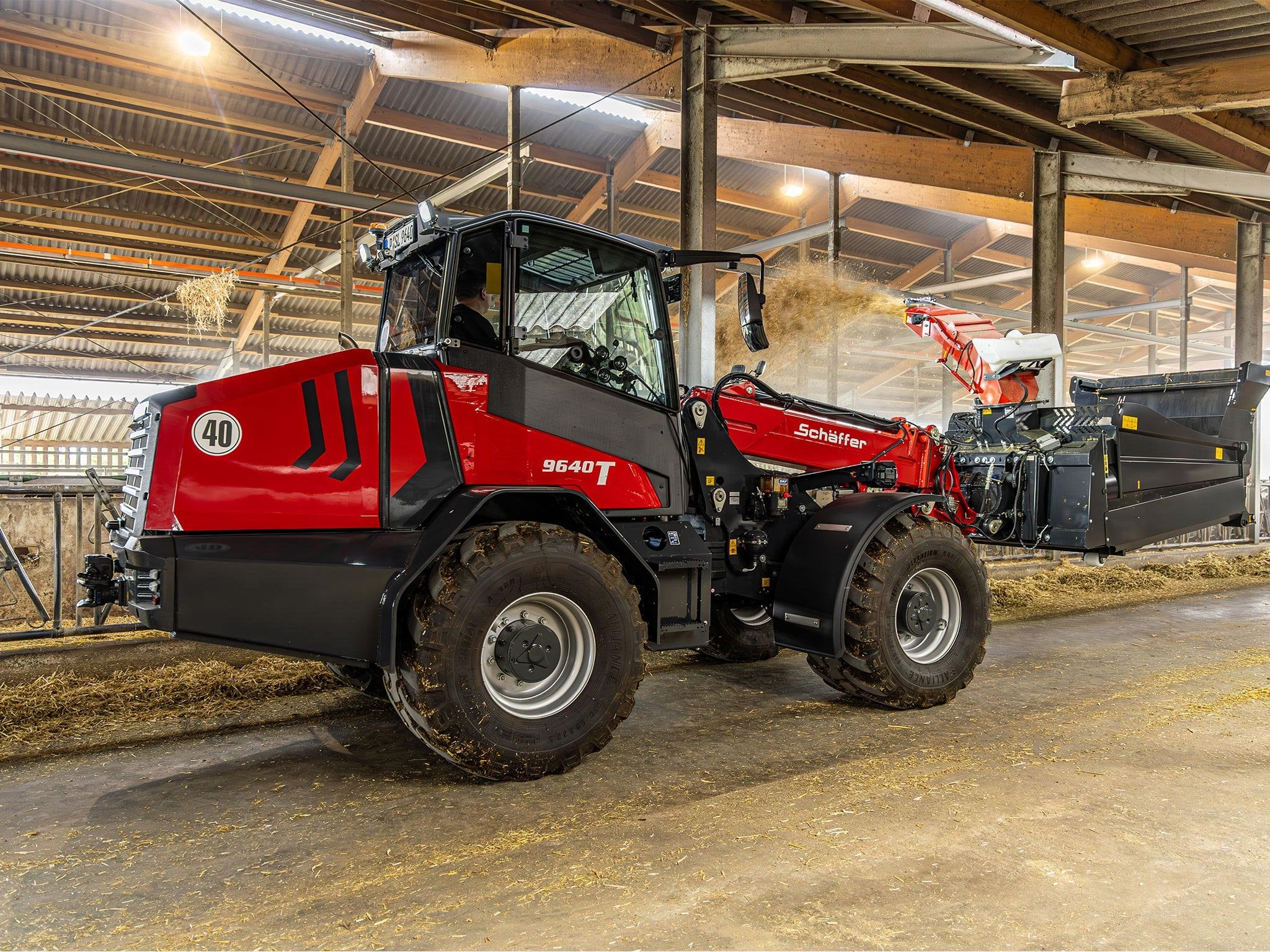

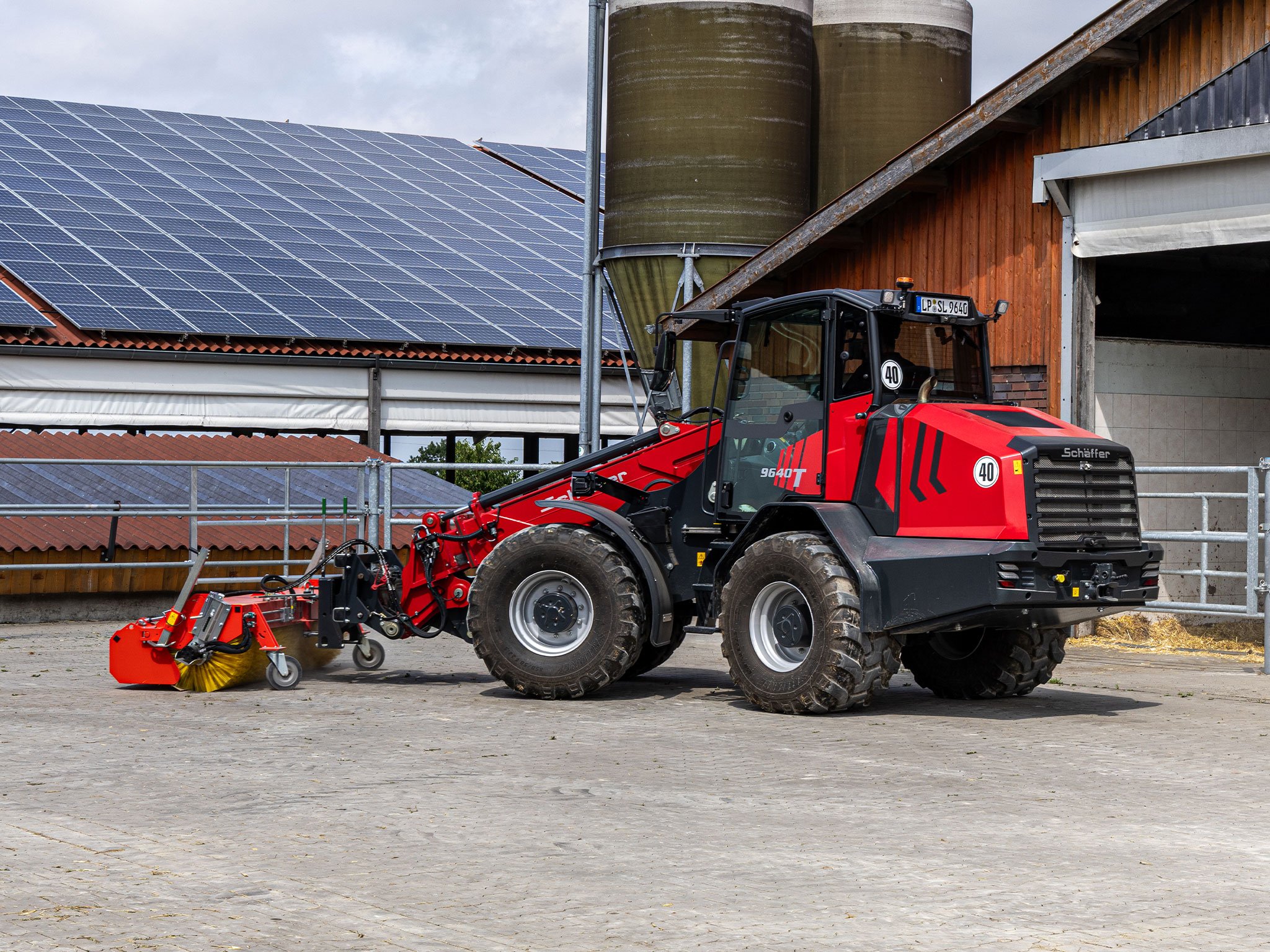

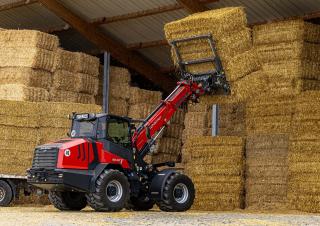

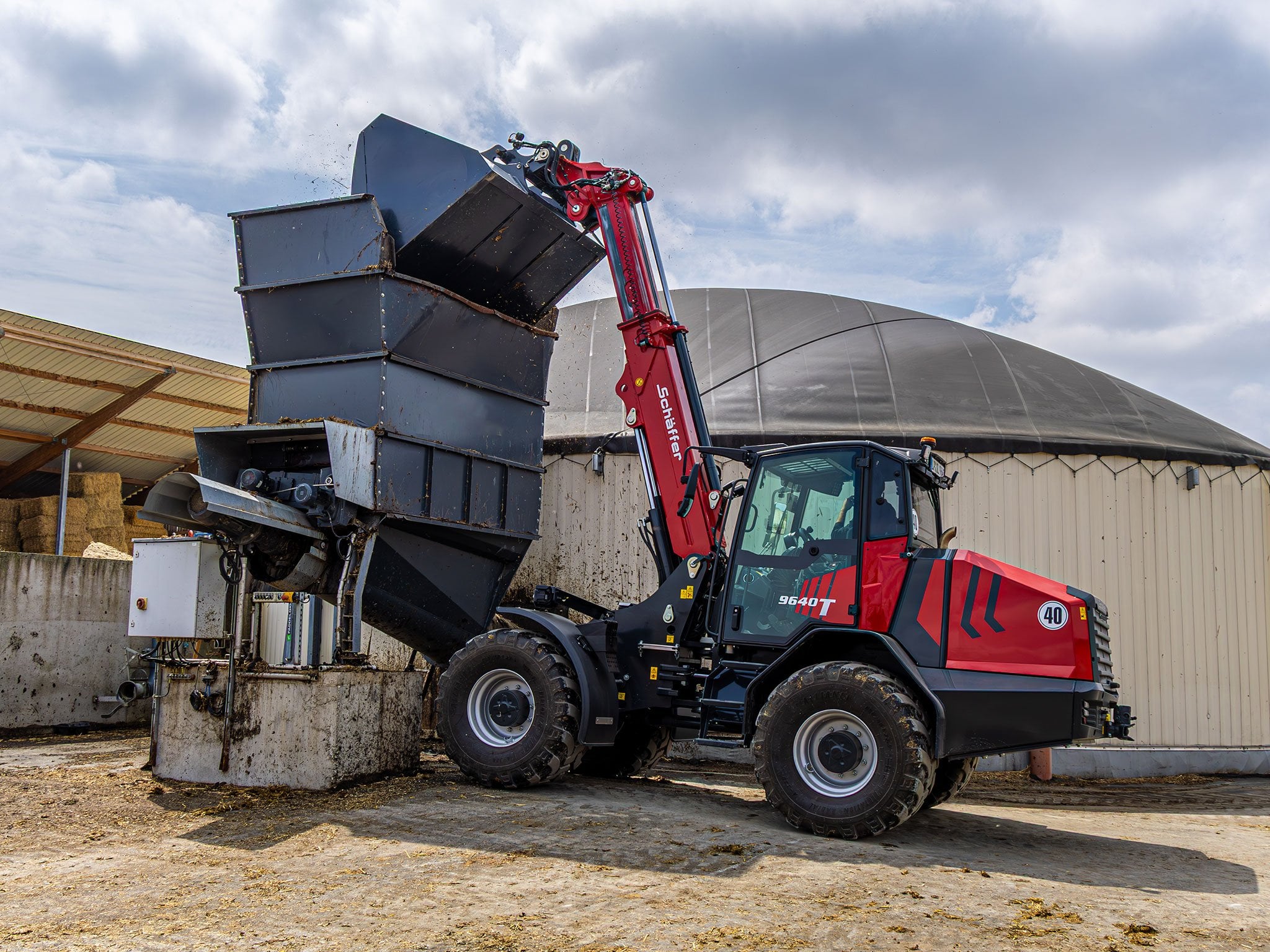

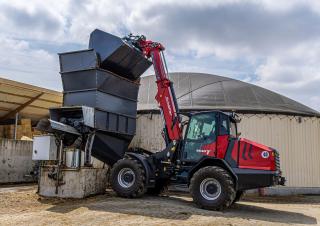

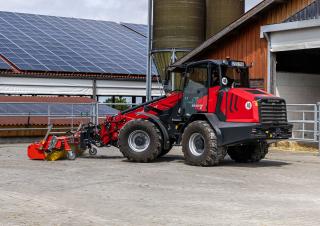

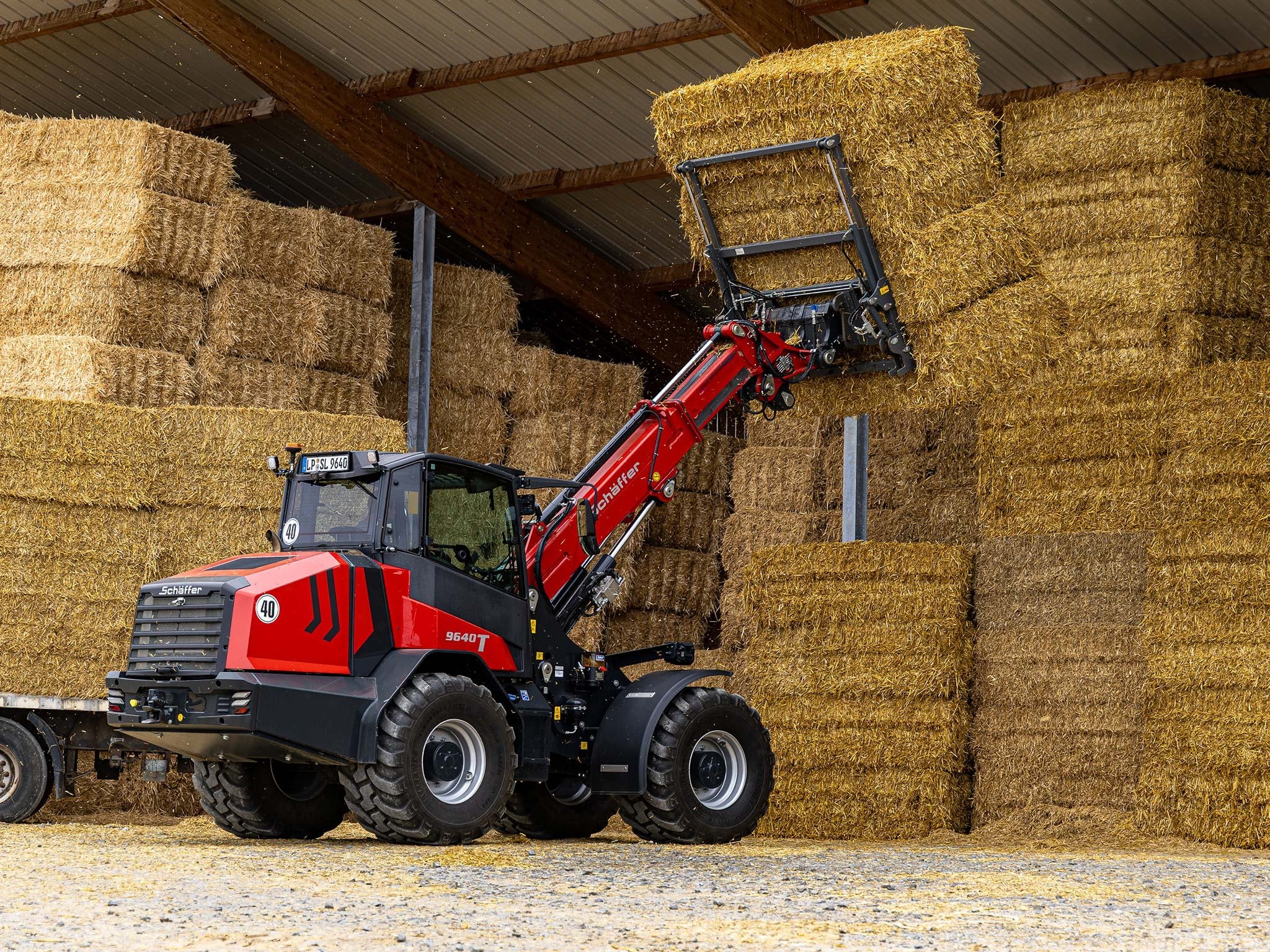

Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3
Yard loader Schäffer 9640 T-3

Technical specs - 9640 T-3 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.7 t
Standard tyres
460/70R24 AS
Tipping load
5940 kg
Wheel base
2.615 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
5.4 m
Overcharging height
5.178 m
Max. discharge height
4.574 m
Turning radius outside
5.11 m
Turning radius inside
2.22 m
Transport length
6.26 m
Transport width
2.38 m
Transport height
2.83 m
Engine manuf.
Deutz
Engine type
TCD3.6
Engine power
105 kW
Displacement
3.621 l
No. of cylinders
4
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
