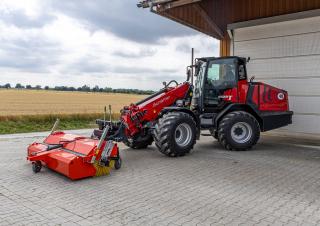

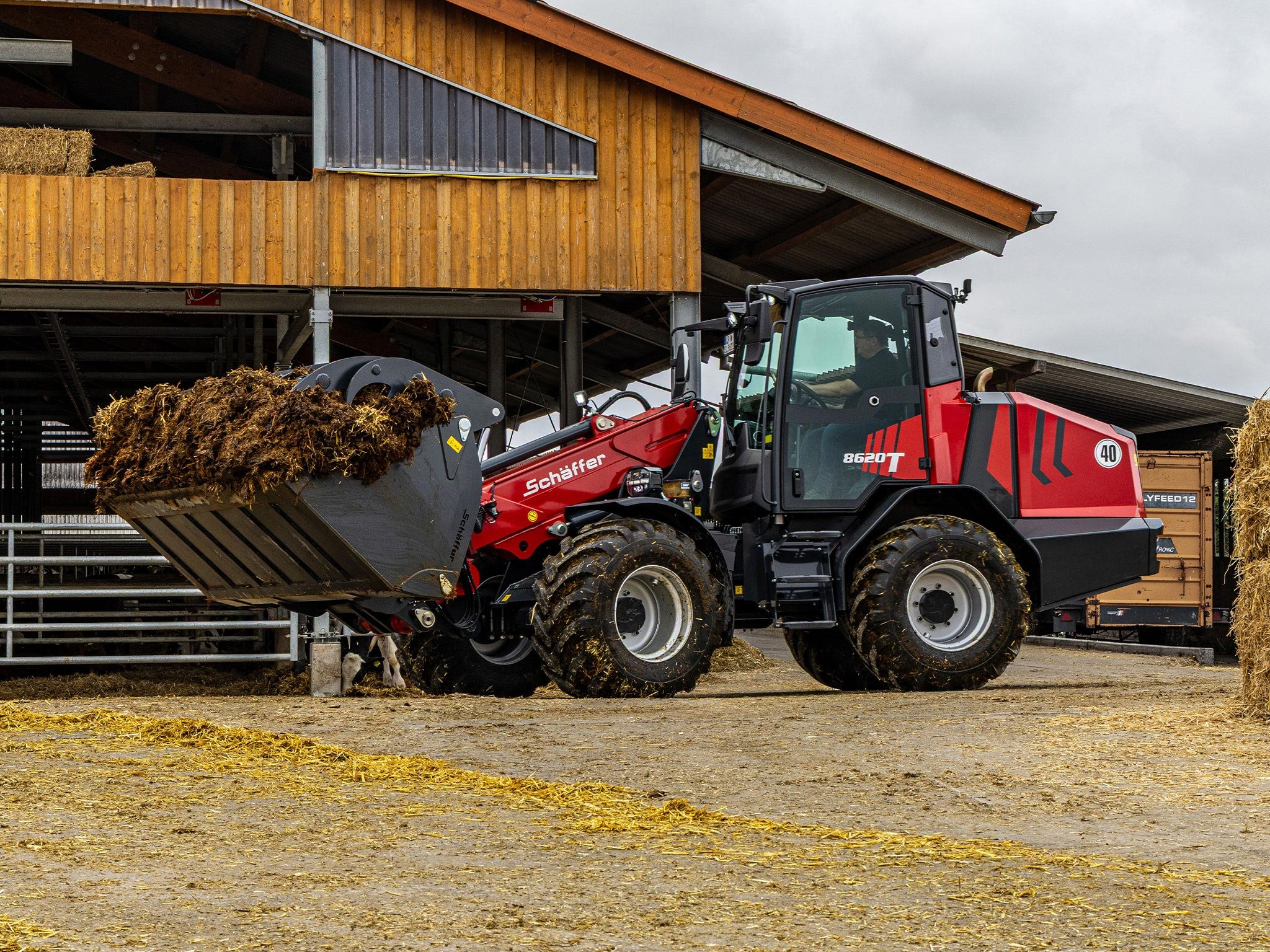

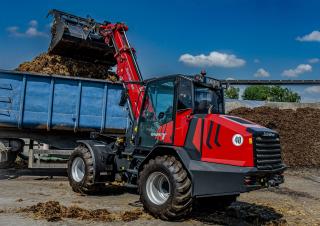

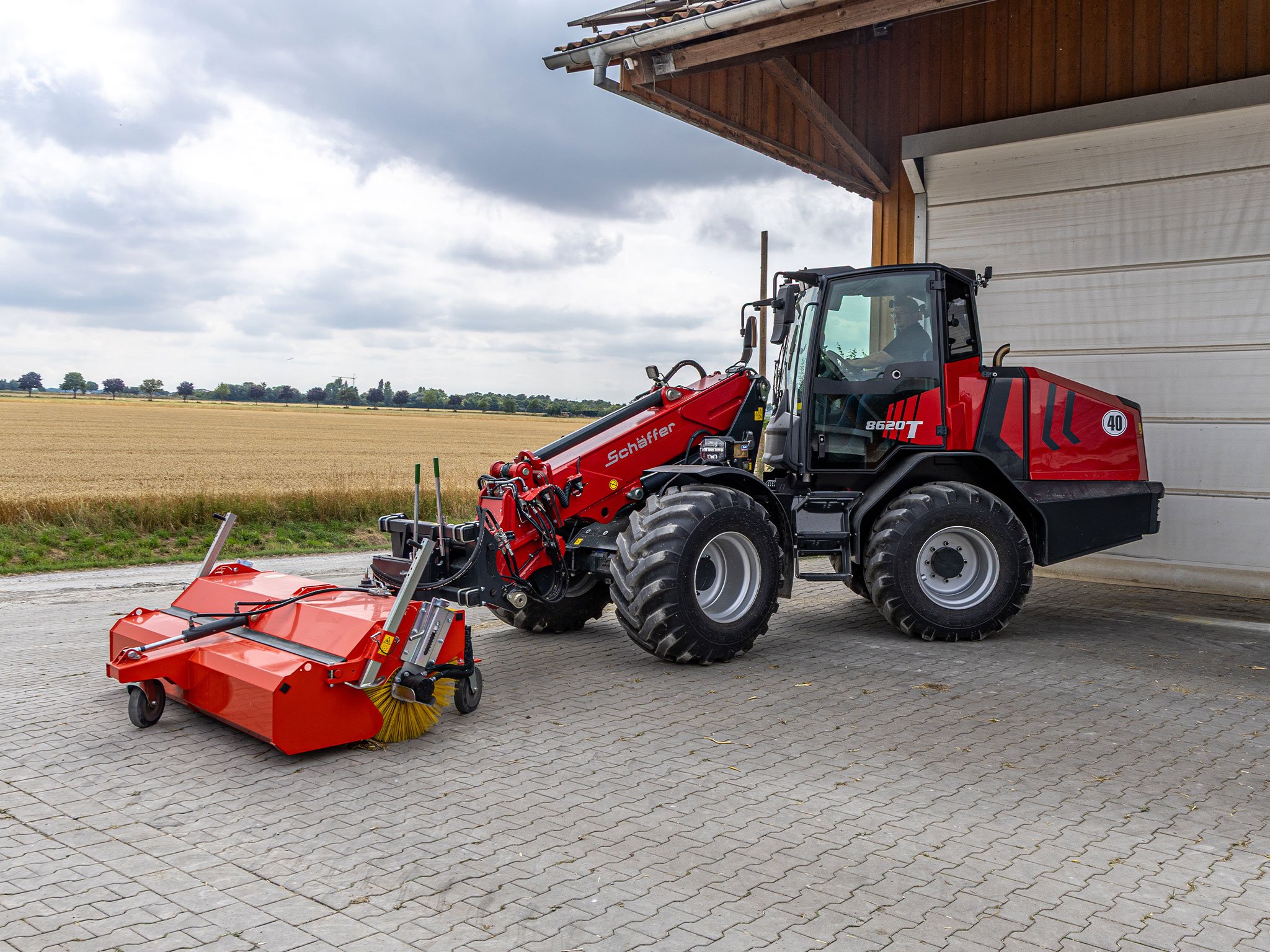

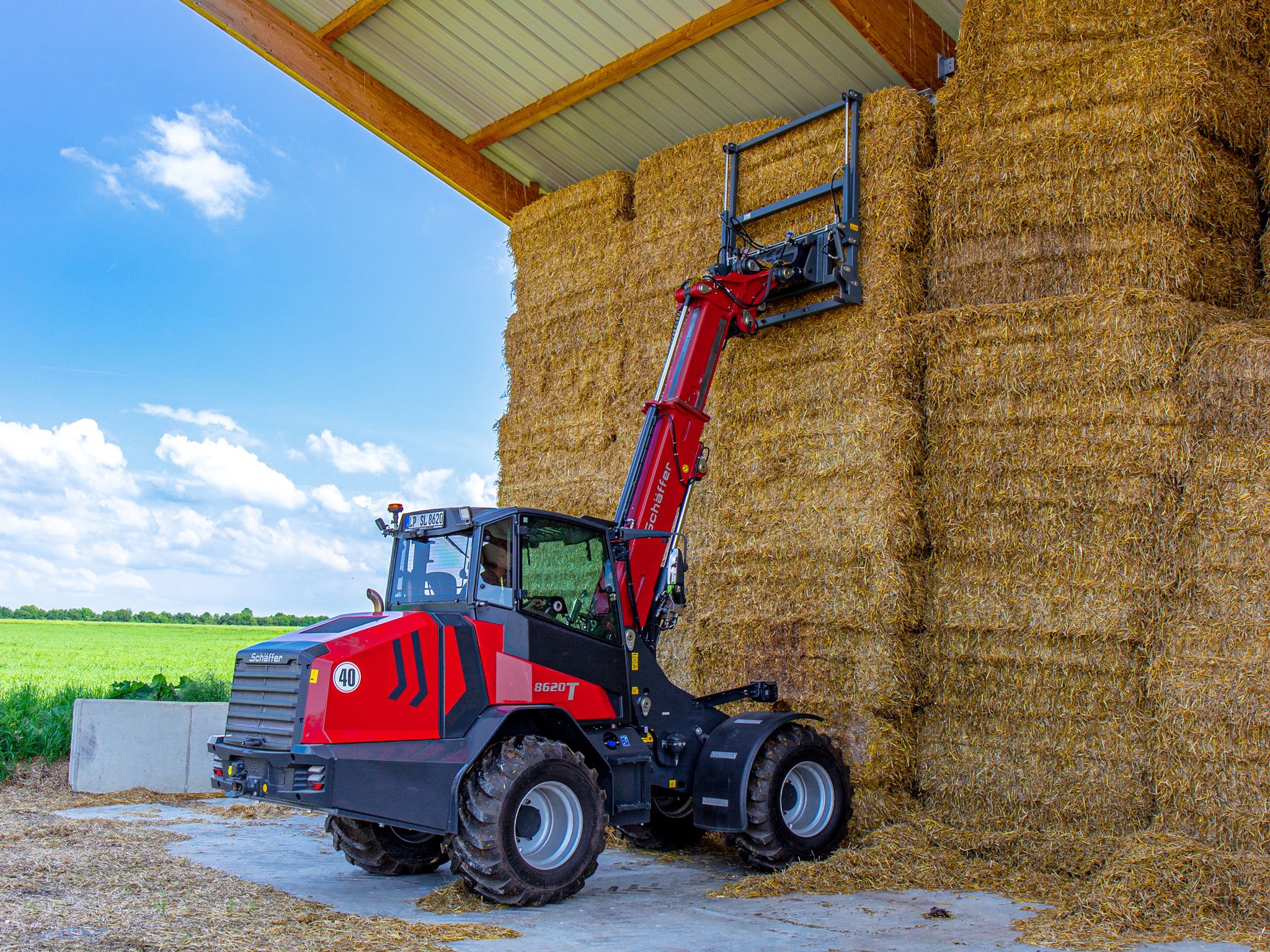

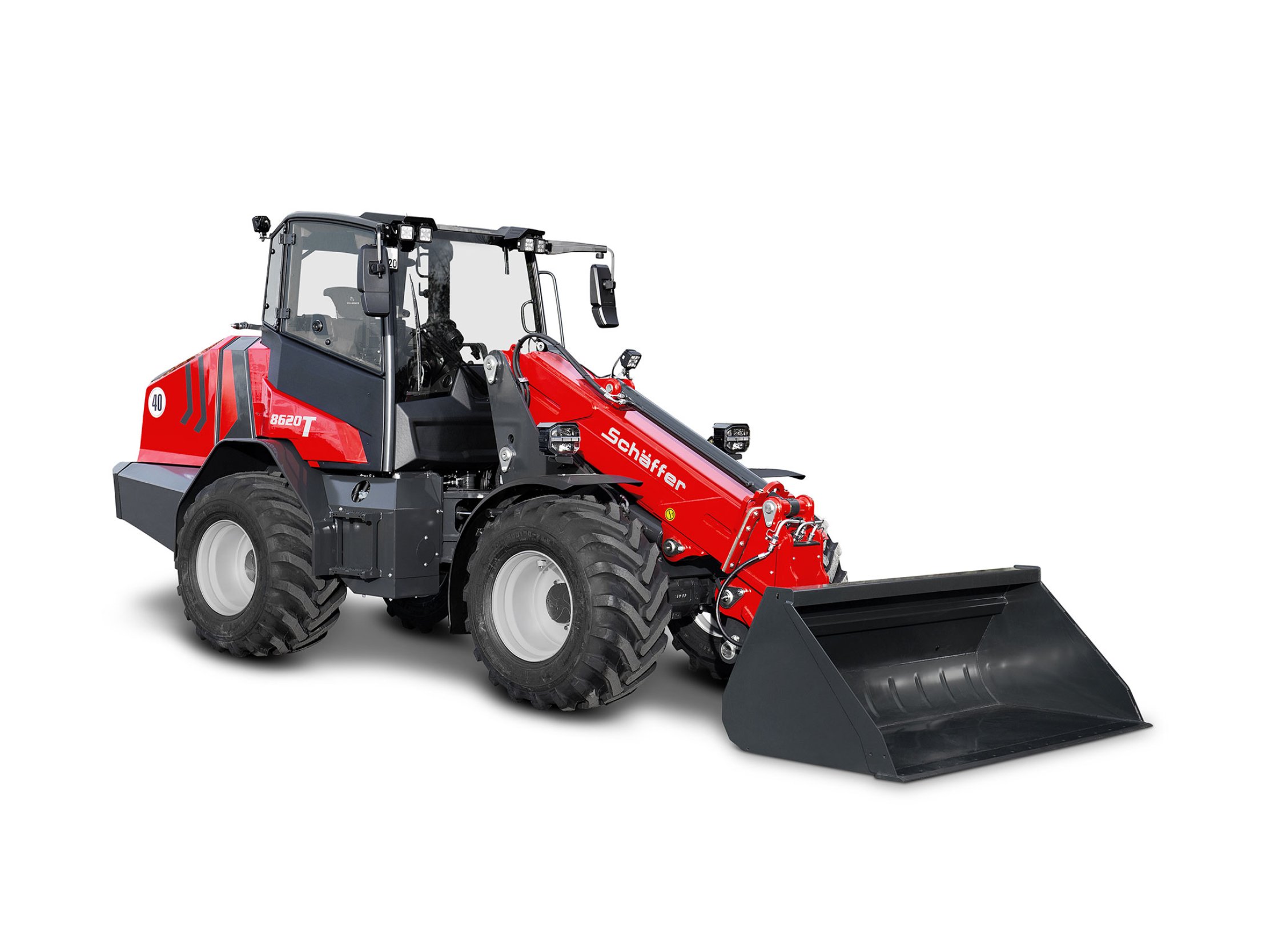

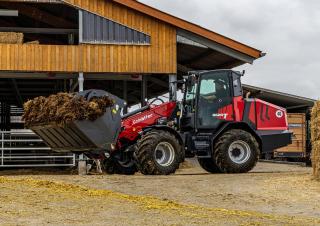

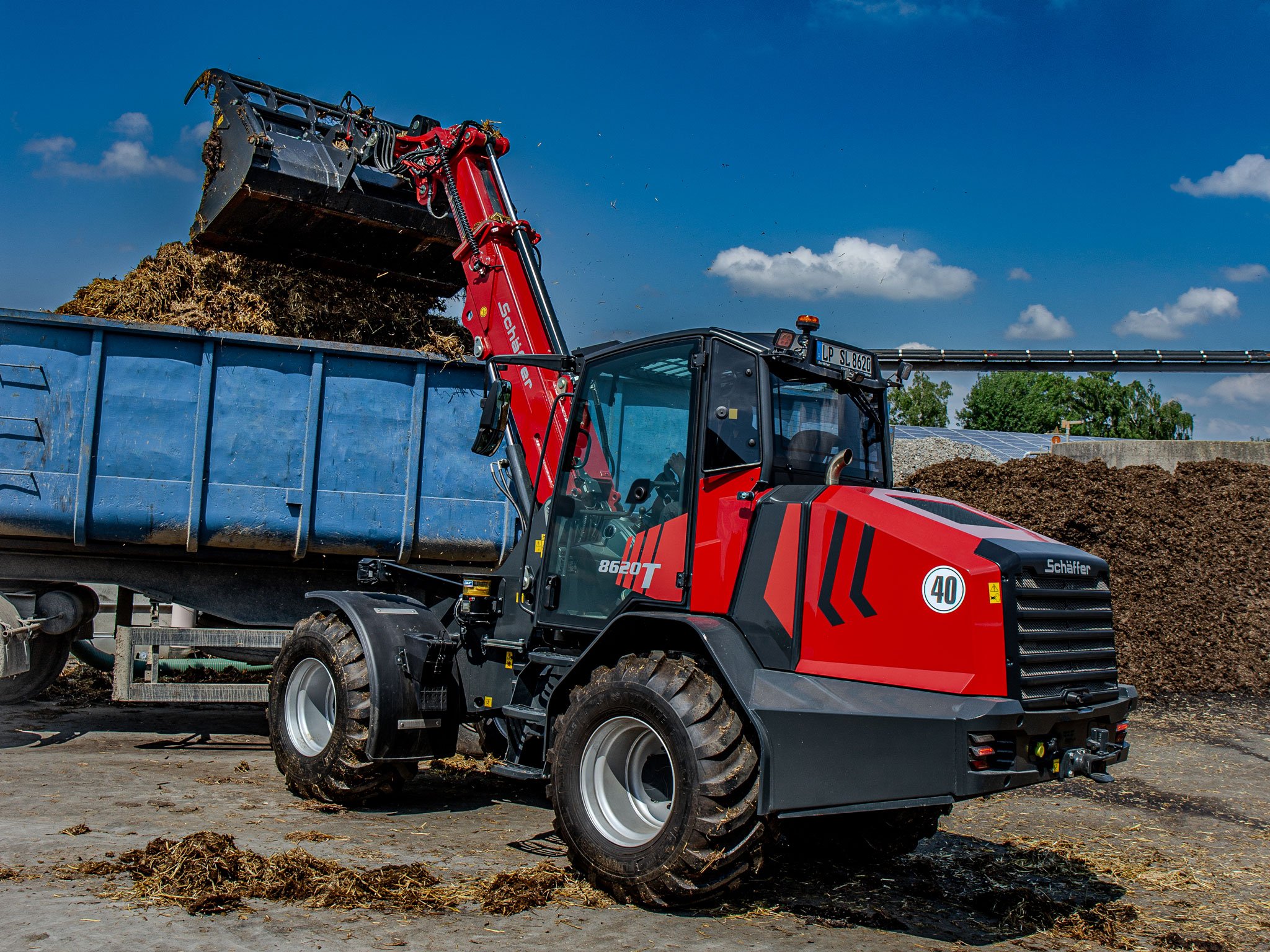

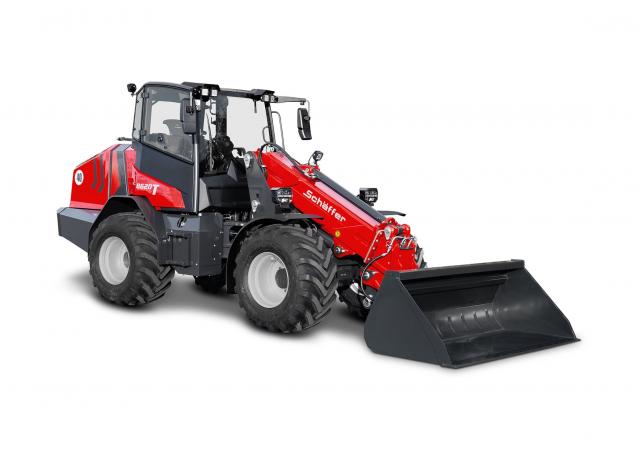

8620 T-3 Schäffer 8620 T-3 Specifications & Technical Data (2025—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Schäffer live at
Technical specs - 8620 T-3 Schäffer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.95 t
- Standard tyres
- 18-22.5 MP590
- Tipping load
- 5480 kg
- Wheel base
- 2.535 m
- Travel speed
- 20 km/h
- Steering mode
- KL
- max. height at the shovel pivot point
- 5.2 m
- Overcharging height
- 4.96 m
- Max. discharge height
- 4.35 m
- Turning radius outside
- 4.92 m
- Turning radius inside
- 2.31 m
- Transport length
- 6.031 m
- Transport width
- 2.26 m
- Transport height
- 2.77 m
- Engine manuf.
- Deutz
- Engine type
- TCD3.6 L04
- Engine power
- 95 kW
- Displacement
- 3.62 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: operating weight, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
Yes
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
