6680 T-3 Schäffer 6680 T-3 Specifications & Technical Data (2025—2026)

Weight: 6.3t – Standard tyres: 400/70-20 AS – Tipping load: 3820kg – Wheel base: 2.45m – Travel speed: 20km/h – Steering mode: KL

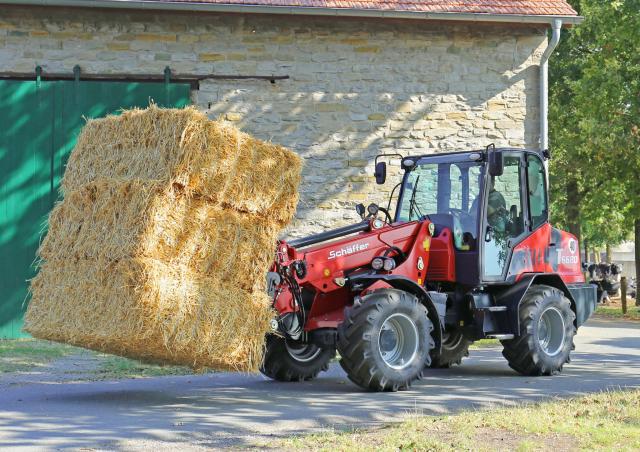

Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3
Yard loader Schäffer 6680 T-3

Technical specs - 6680 T-3 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.3 t
Standard tyres
400/70-20 AS
Tipping load
3820 kg
Wheel base
2.45 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
4.95 m
Overcharging height
4.7 m
Max. discharge height
3.98 m
Turning radius outside
4.4 m
Turning radius inside
1.96 m
Transport length
5.78 m
Transport width
2.07 m
Transport height
2.63 m
Engine manuf.
Deutz
Engine type
TCD2.9
Engine power
55 kW
Displacement
2.9 l
No. of cylinders
4
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 6680 T-3 FAQ

When was the Schu00e4ffer 6680 T-3 manufactured?

The Schu00e4ffer 6680 T-3 was first produced in 2025.

What is the weight of the Schu00e4ffer 6680 T-3?

The Schu00e4ffer 6680 T-3 has a weight of 6.3 tonnes.

What are the physical dimensions of the Schu00e4ffer 6680 T-3 yard loader?

The Schu00e4ffer 6680 T-3 yard loader has a transport length of 5.78 meters, a transport width of 2.07 meters, and a transport height of 2.63 meters.

What is the travel speed of the Schu00e4ffer 6680 T-3 yard loader?

The Schu00e4ffer 6680 T-3 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 6680 T-3?

The Schu00e4ffer 6680 T-3 features articulated-frame steering and has an outside turning radius of 4.4 meters.

What are the standard tyre specifications for the Schu00e4ffer 6680 T-3?

The Schu00e4ffer 6680 T-3 comes equipped with standard tyres sized 400/70-20 AS.

What is the maximum discharge height of the Schu00e4ffer 6680 T-3?

The Schu00e4ffer 6680 T-3 has a maximum discharge height of 3.98 meters.

How much is a Schu00e4ffer 6680 T-3 Yard loader (2025u20132025) worth?

The residual value of the Schu00e4ffer 6680 T-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
