5680 Z Schäffer 5680 Z Specifications & Technical Data (2025—2026)

Weight: 4.39t – Standard tyres: 15.5/60-18 AT-621 – Tipping load: 3098kg – Wheel base: 1.96m – Travel speed: 30km/h – Steering mode: KL

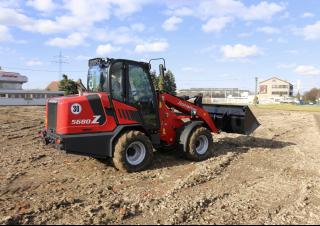

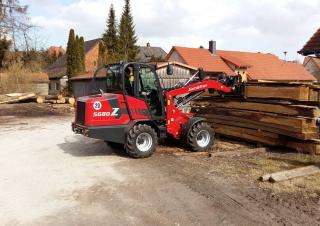

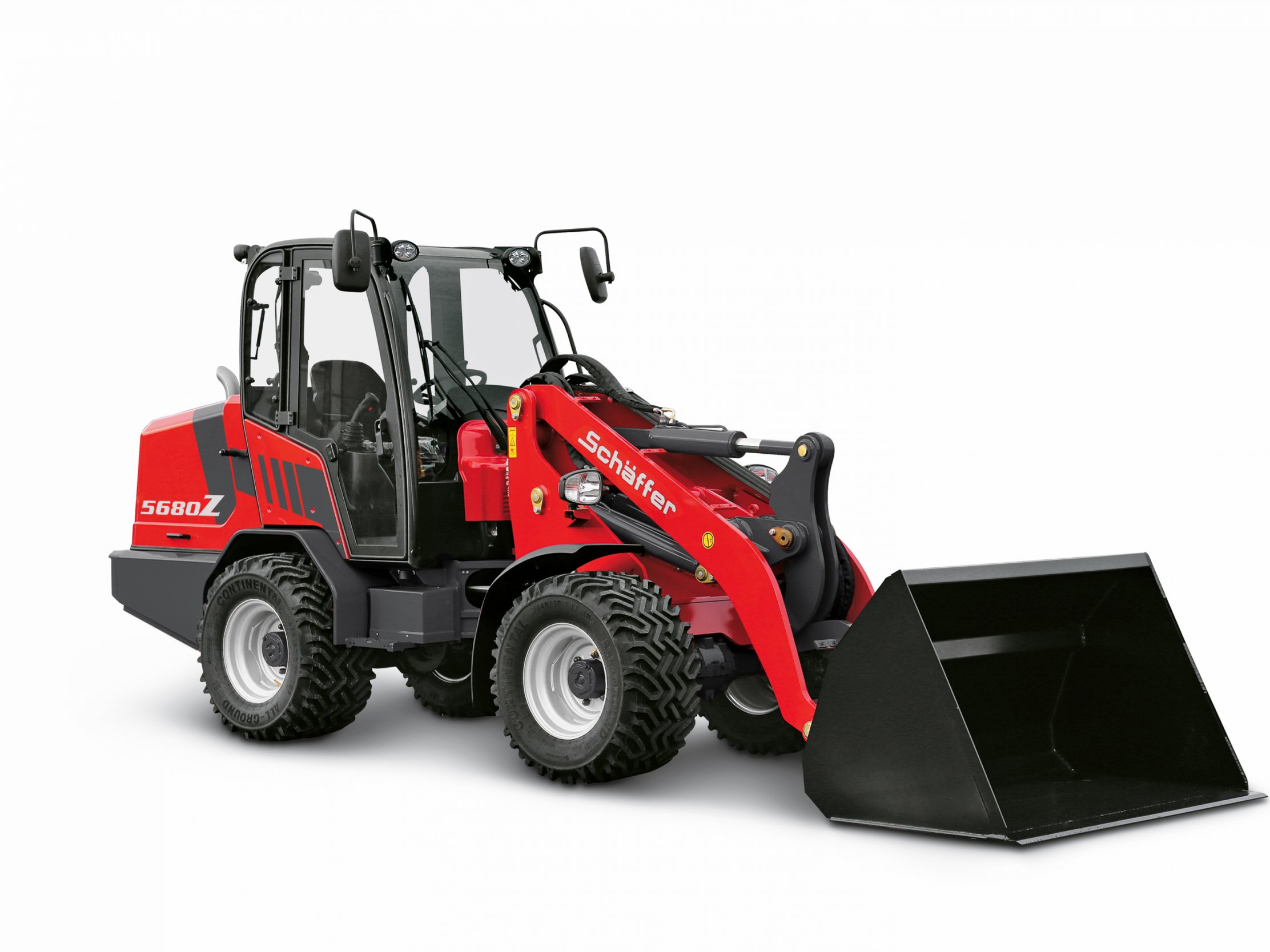

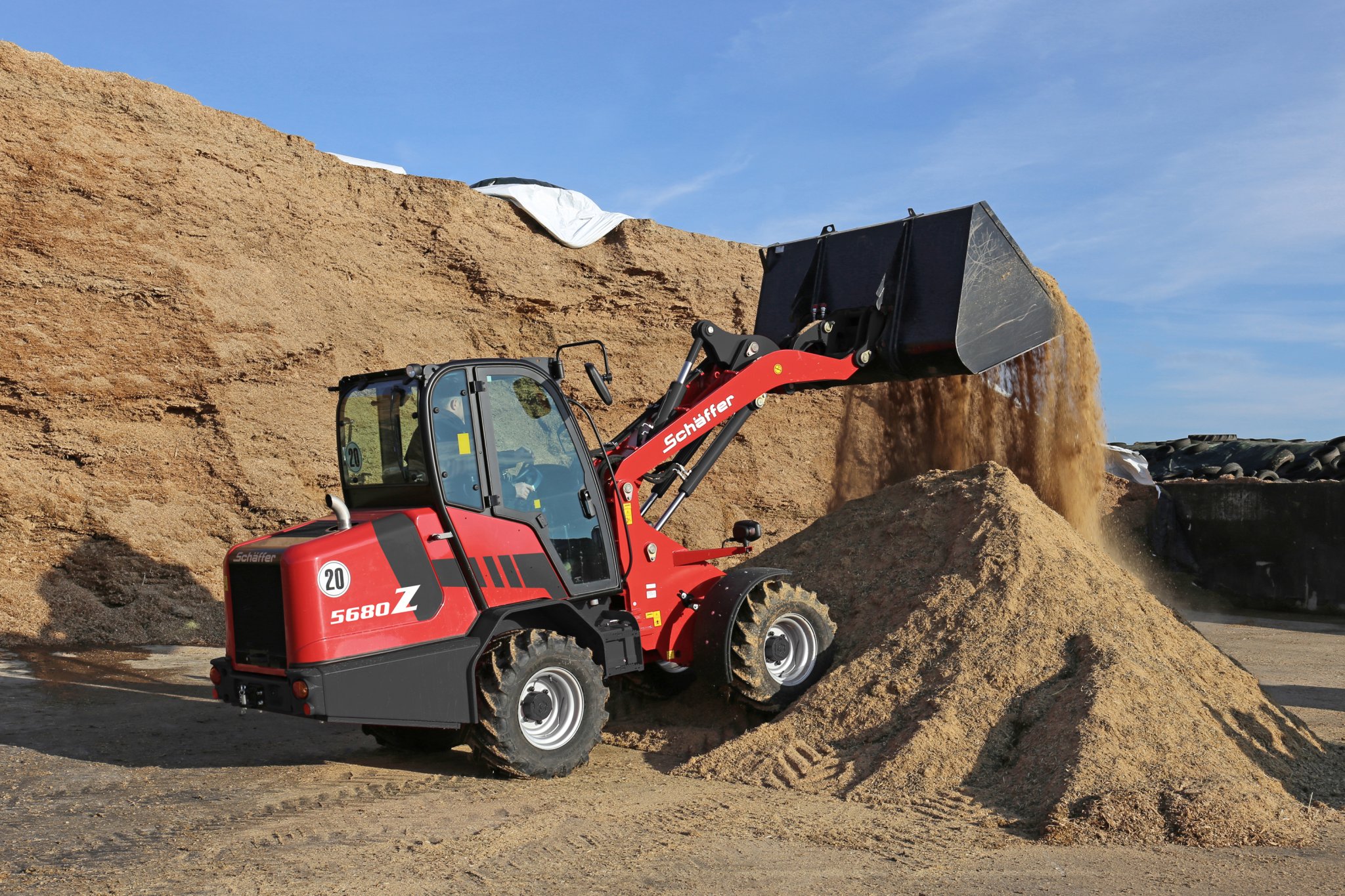

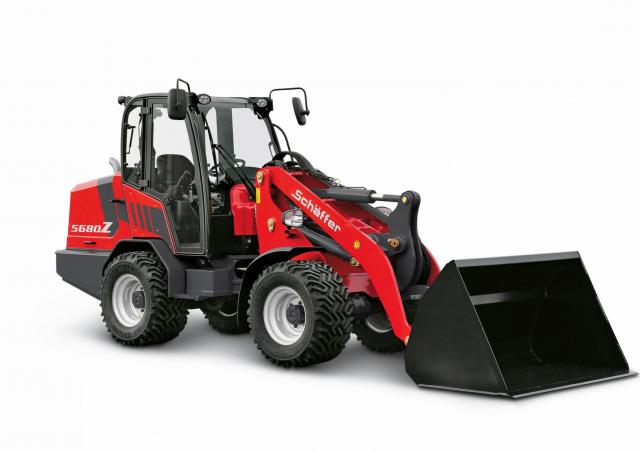

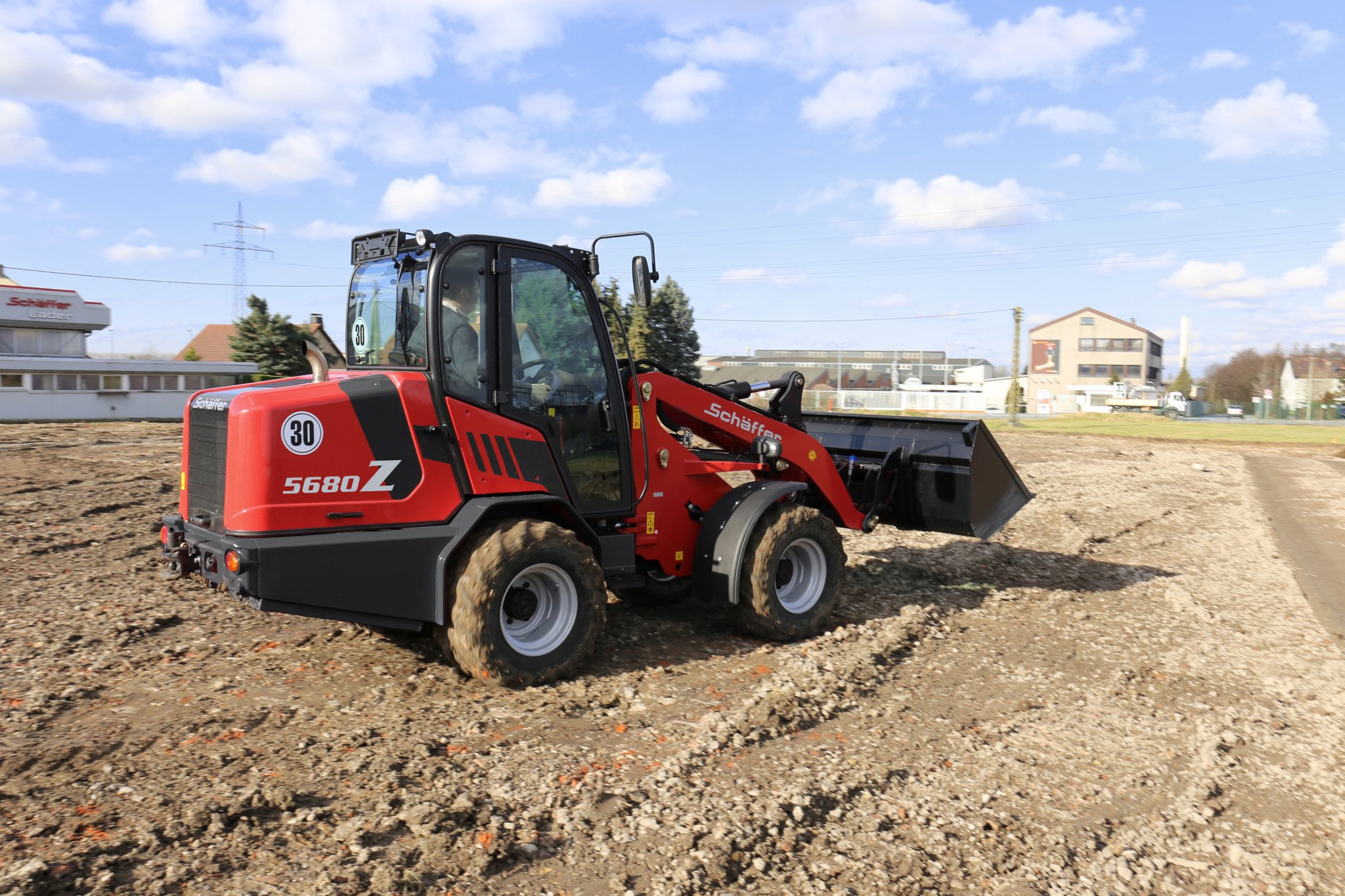

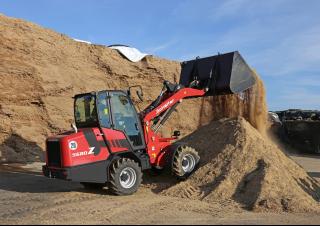

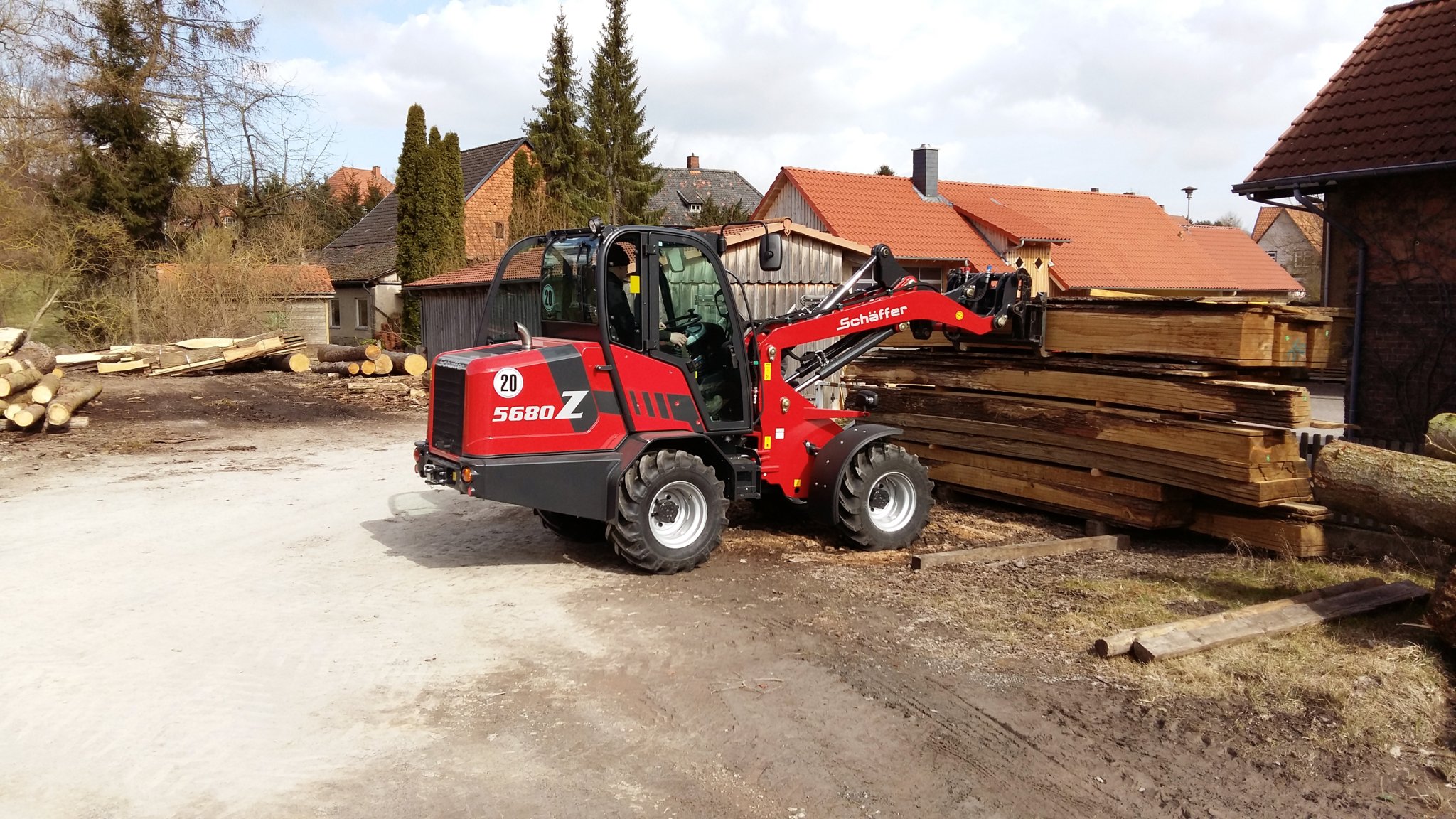

Yard loader Schäffer 5680 Z
Yard loader Schäffer 5680 Z
Yard loader Schäffer 5680 Z
Yard loader Schäffer 5680 Z
Yard loader Schäffer 5680 Z
Yard loader Schäffer 5680 Z
Yard loader Schäffer 5680 Z
Yard loader Schäffer 5680 Z

Technical specs - 5680 Z Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.39 t
Standard tyres
15.5/60-18 AT-621
Tipping load
3098 kg
Wheel base
1.96 m
Travel speed
30 km/h
Steering mode
KL
max. height at the shovel pivot point
3.4 m
Overcharging height
3.175 m
Max. discharge height
2.7 m
Turning radius outside
4.11 m
Turning radius inside
1.83 m
Transport length
5.12 m
Transport width
1.82 m
Transport height
2.53 m
Engine manuf.
Deutz
Engine type
TD2.9
Engine power
55 kW
Displacement
2.925 l
No. of cylinders
4
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
