5680 T-3 Schäffer 5680 T-3 Specifications & Technical Data (2025—2026)

Weight: 4.84t – Standard tyres: 15.5/60-18 AT-621 – Tipping load: 2660kg – Wheel base: 2.12m – Travel speed: 20km/h – Steering mode: KL

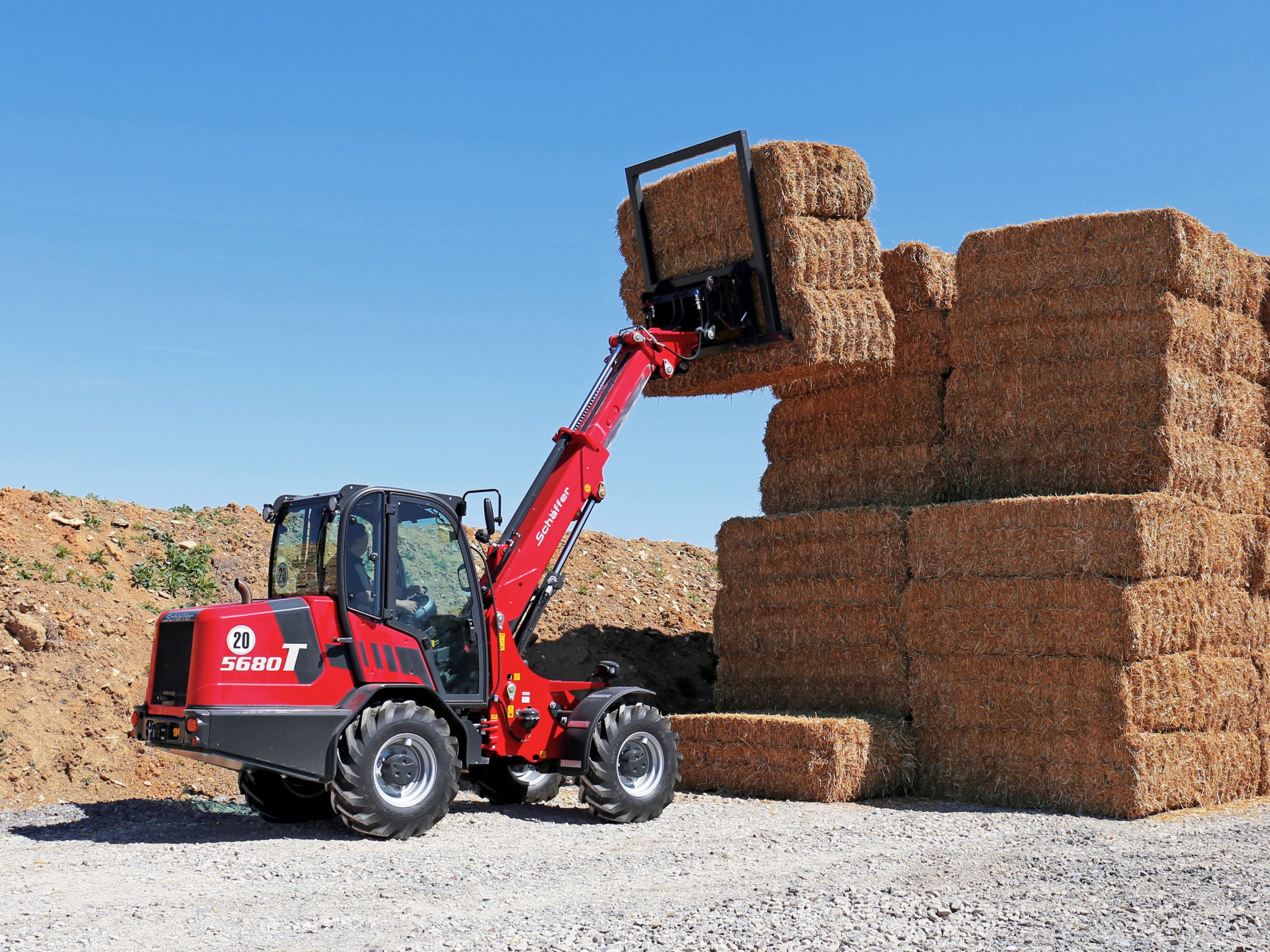

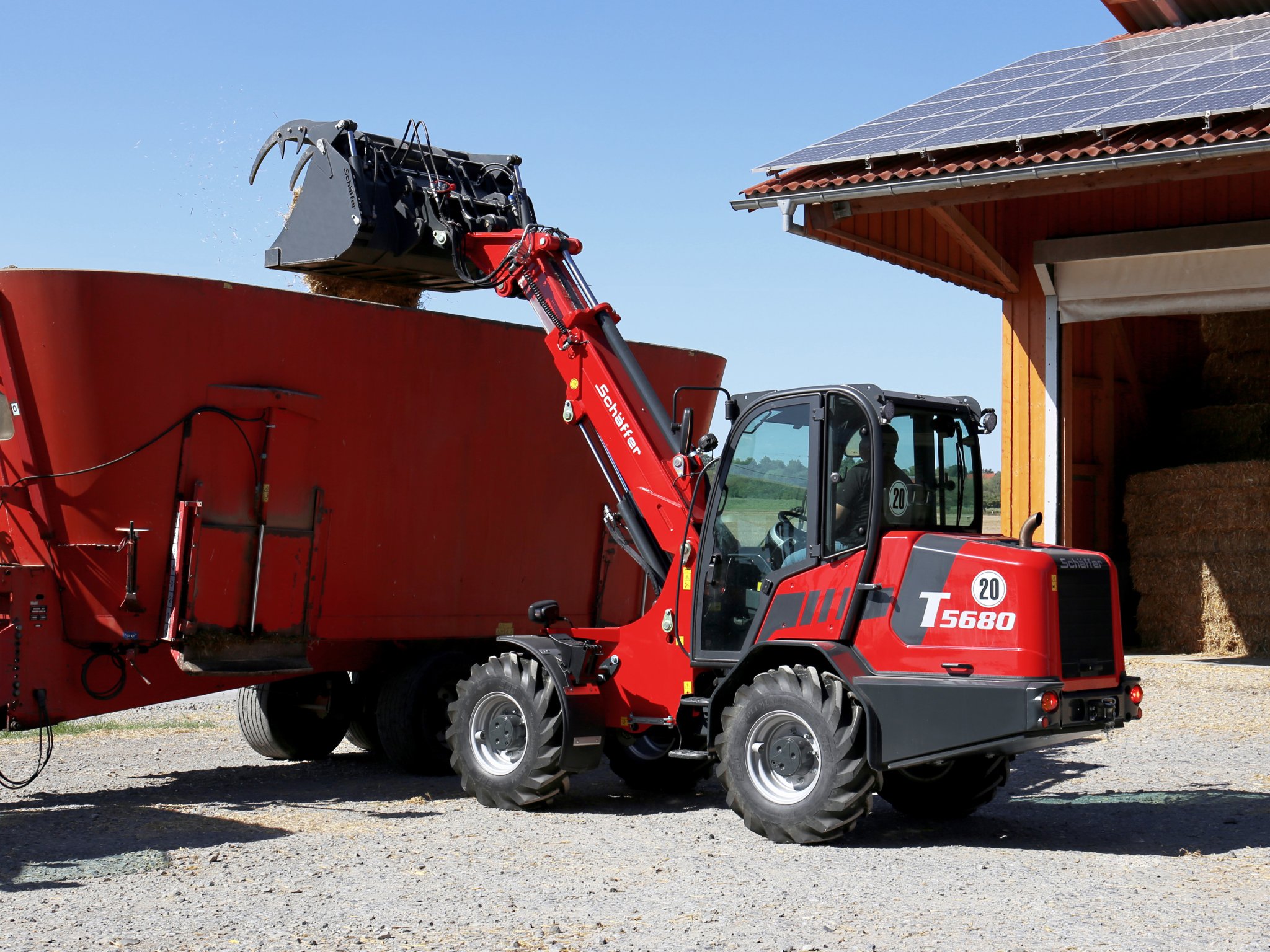

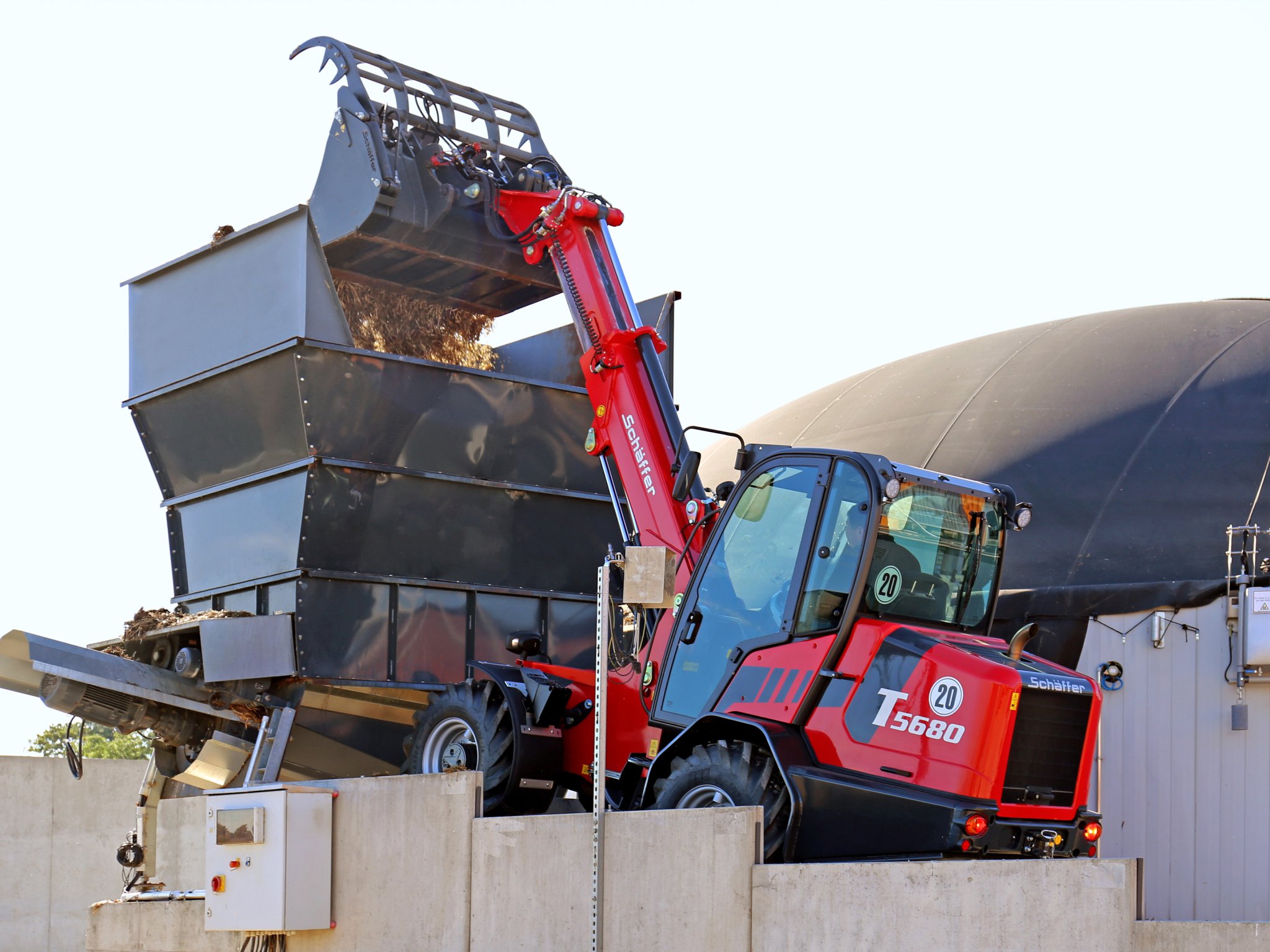

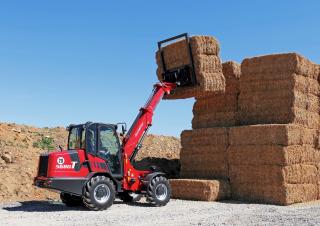

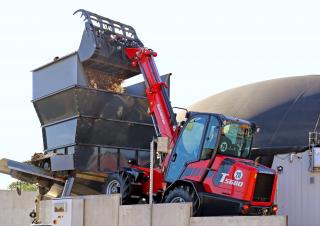

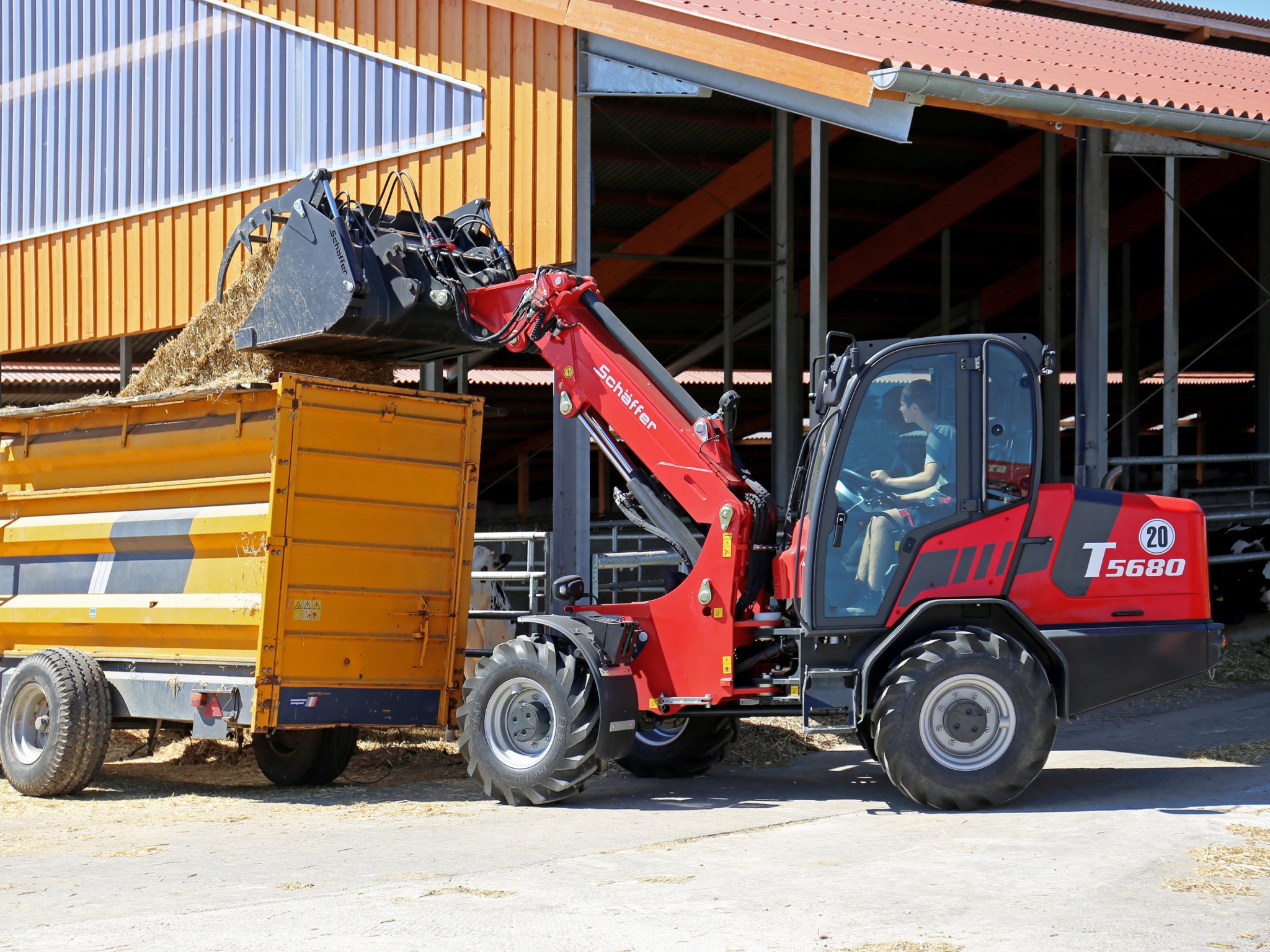

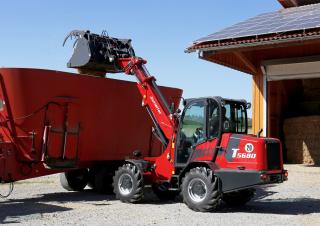

Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3
Yard loader Schäffer 5680 T-3

Technical specs - 5680 T-3 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.84 t
Standard tyres
15.5/60-18 AT-621
Tipping load
2660 kg
Wheel base
2.12 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
4.74 m
Overcharging height
4.49 m
Max. discharge height
3.862 m
Turning radius outside
3.98 m
Turning radius inside
1.74 m
Transport length
5.432 m
Transport width
1.82 m
Transport height
2.53 m
Engine manuf.
Deutz
Engine type
TCD2.9
Engine power
55 kW
Displacement
2.9 l
No. of cylinders
4
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 5680 T-3 FAQ

When was the Schu00e4ffer 5680 T-3 manufactured?

The Schu00e4ffer 5680 T-3 was first produced in 2025.

What is the weight of the Schu00e4ffer 5680 T-3 yard loader?

The Schu00e4ffer 5680 T-3 yard loader has a weight of 4.84 tonnes.

What are the transport dimensions of the Schu00e4ffer 5680 T-3 yard loader?

The Schu00e4ffer 5680 T-3 has a transport length of 5.432 meters, a transport width of 1.82 meters, and a transport height of 2.53 meters.

What is the travel speed of the Schu00e4ffer 5680 T-3 yard loader?

The Schu00e4ffer 5680 T-3 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 5680 T-3?

The Schu00e4ffer 5680 T-3 features articulated-frame steering and has an outside turning radius of 3.98 meters.

What are the standard tyre specifications for the Schu00e4ffer 5680 T-3?

The Schu00e4ffer 5680 T-3 is equipped with standard tyres sized 15.5/60-18 AT-621.

What is the maximum discharge height of the Schu00e4ffer 5680 T-3 yard loader?

The Schu00e4ffer 5680 T-3 has a maximum discharge height of 3.862 meters.

How much is a Schu00e4ffer 5680 T-3 Yard loader (2025u20132025) worth?

The residual value of the Schu00e4ffer 5680 T-3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
