4670 Schäffer 4670 Specifications & Technical Data (2019—2026)

Weight: 3.3t – Standard tyres: 11.5/80-15.3 AS – Tipping load: 2301kg – Wheel base: 1.84m – Travel speed: 20km/h – Steering mode: KL

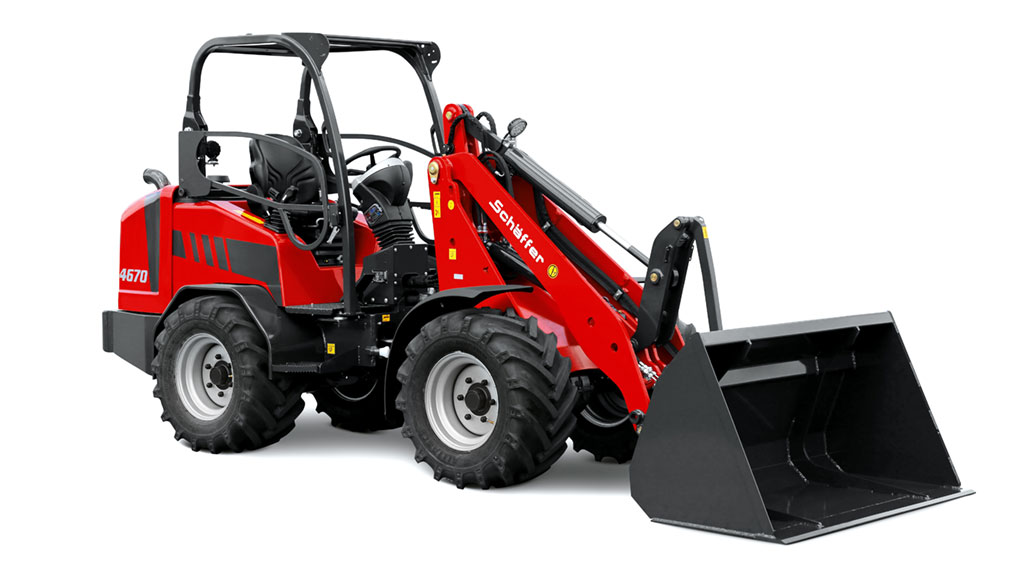

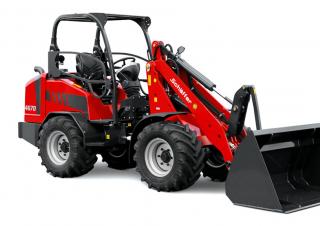

Yard loader Schäffer 4670

Technical specs - 4670 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.3 t
Standard tyres
11.5/80-15.3 AS
Tipping load
2301 kg
Wheel base
1.84 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
3.25 m
Overcharging height
3.07 m
Max. discharge height
2.42 m
Turning radius outside
2.53 m
Turning radius inside
1.29 m
Transport length
3.71 m
Transport width
1.73 m
Transport height
2.22 m
Engine manuf.
Kubota
Engine type
N/A
Engine power
37.4 kW
No. of cylinders
4

More technical details, like: operating weight, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 4670 FAQ

When was the Schu00e4ffer 4670 first produced?

The Schu00e4ffer 4670 was first produced in 2019.

What is the weight of the Schu00e4ffer 4670 yard loader?

The Schu00e4ffer 4670 yard loader has a weight of 3.3 tonnes.

What are the physical dimensions of the Schu00e4ffer 4670 yard loader?

The Schu00e4ffer 4670 has a transport length of 3.71 meters, a transport width of 1.73 meters, and a transport height of 2.22 meters.

What is the travel speed of the Schu00e4ffer 4670 yard loader?

The Schu00e4ffer 4670 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 4670 yard loader?

The Schu00e4ffer 4670 features articulated-frame steering and has an outside turning radius of 2.53 meters.

What are the standard tyre specifications for the Schu00e4ffer 4670 yard loader?

The Schu00e4ffer 4670 yard loader is equipped with standard tyres sized 11.5/80-15.3 AS.

What is the maximum discharge height of the Schu00e4ffer 4670 yard loader?

The Schu00e4ffer 4670 yard loader has a maximum discharge height of 2.42 meters.
