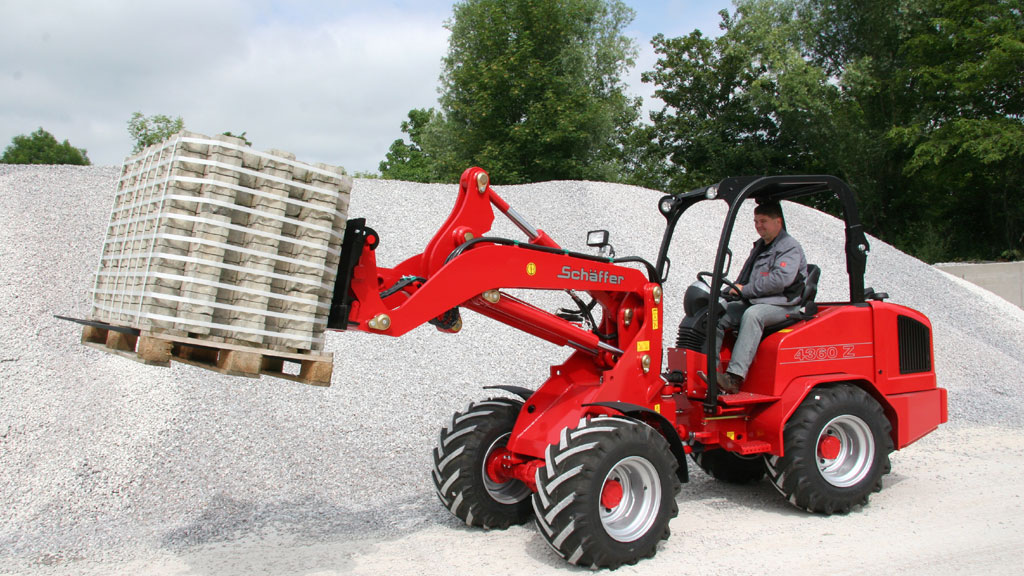

4350 Z Schäffer 4350 Z Specifications & Technical Data (2016—2018)

Weight: 3.52t – Standard tyres: 11.5/80-15.3 AS – Tipping load: 2149kg – Wheel base: 2m – Travel speed: 20km/h – Steering mode: KL

4350 Z

Years of manufacture: 2016—2018

Data sheet
Valuate & Sell
Spare parts
Transport
News

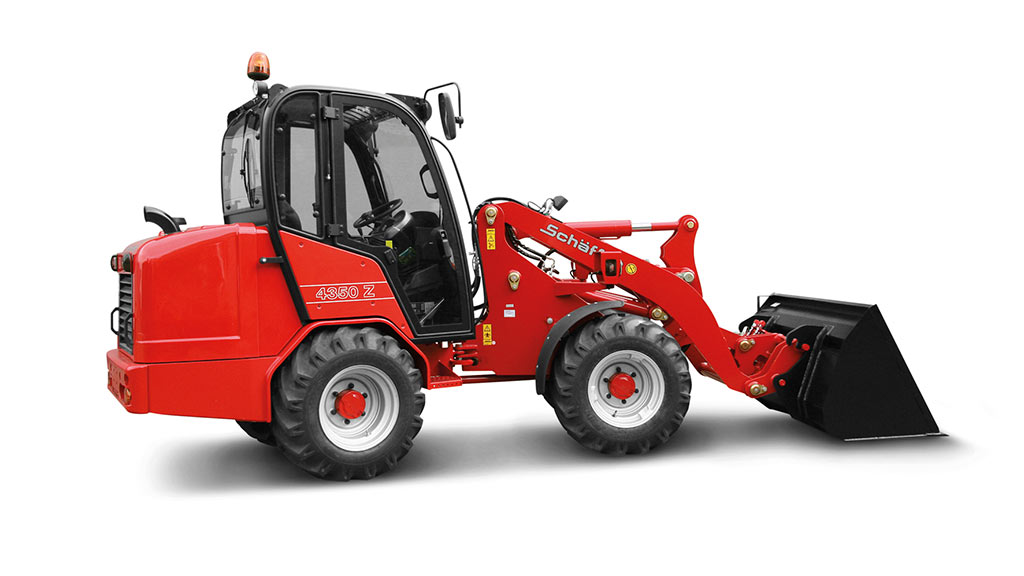

Technical specs - 4350 Z Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.52 t

Standard tyres: 11.5/80-15.3 AS

Tipping load: 2149 kg

Wheel base: 2 m

Travel speed: 20 km/h

Steering mode: KL

Max. discharge height: 2.5 m

Turning radius outside: 3.01 m

Transport length: 4.05 m

Transport width: 1.71 m

Transport height: 2.27 m

Engine manuf.: Kubota

Engine type: k.A.

Engine power: 37 kW

No. of cylinders: 4

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, turning radius inside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

4350 Z Schäffer Specification for Europe (DE)

Schäffer 4350 Z FAQ

When was the Schu00e4ffer 4350 Z manufactured?

The Schu00e4ffer 4350 Z was manufactured from 2016 to 2018.

What is the weight of the Schu00e4ffer 4350 Z yard loader?

The Schu00e4ffer 4350 Z yard loader has a weight of 3.52 tonnes.

What are the physical dimensions of the Schu00e4ffer 4350 Z yard loader?

The Schu00e4ffer 4350 Z has a transport length of 4.05 meters, a transport width of 1.71 meters, and a transport height of 2.27 meters.

What is the travel speed of the Schu00e4ffer 4350 Z yard loader?

The Schu00e4ffer 4350 Z yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 4350 Z?

The Schu00e4ffer 4350 Z features articulated-frame steering and has an outside turning radius of 3.01 meters.

What are the standard tyre specifications for the Schu00e4ffer 4350 Z?

The Schu00e4ffer 4350 Z is equipped with standard tyres sized 11.5/80-15.3 AS.

What are the chassis specifications of the Schu00e4ffer 4350 Z?

The Schu00e4ffer 4350 Z has a wheel base of 2 meters.

What is the mass capacity of the Schu00e4ffer 4350 Z?

The Schu00e4ffer 4350 Z has a tipping load of 2149 kilograms.

What is the maximum discharge height of the Schu00e4ffer 4350 Z yard loader?

The Schu00e4ffer 4350 Z has a maximum discharge height of 2.5 meters.

How much is a Schu00e4ffer 4350 Z Yard loader (2016u20132018) worth?

The residual value of the Schu00e4ffer 4350 Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
