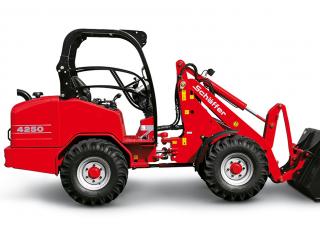

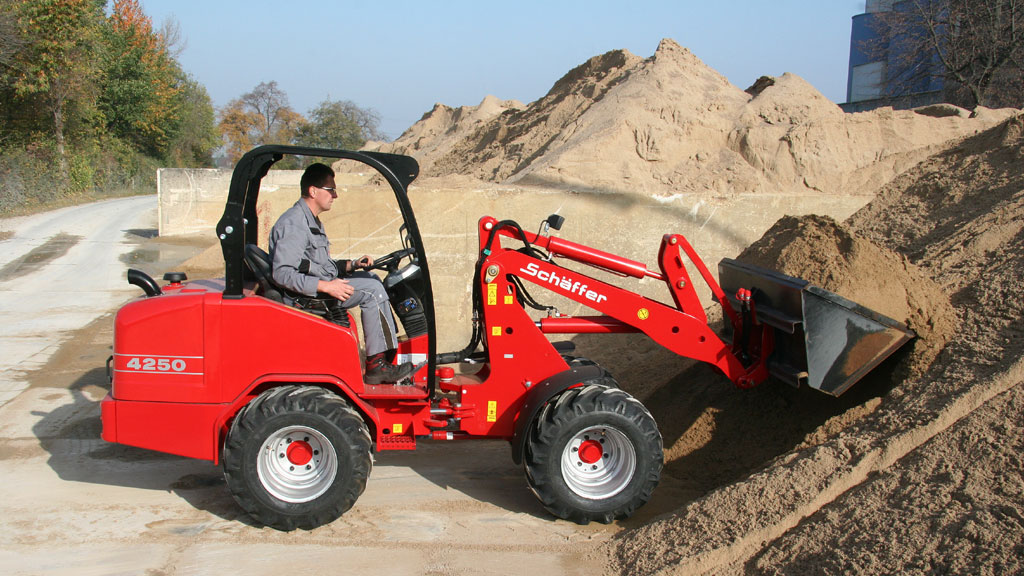

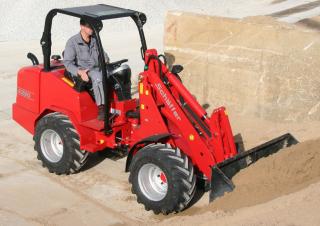

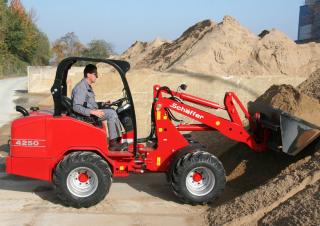

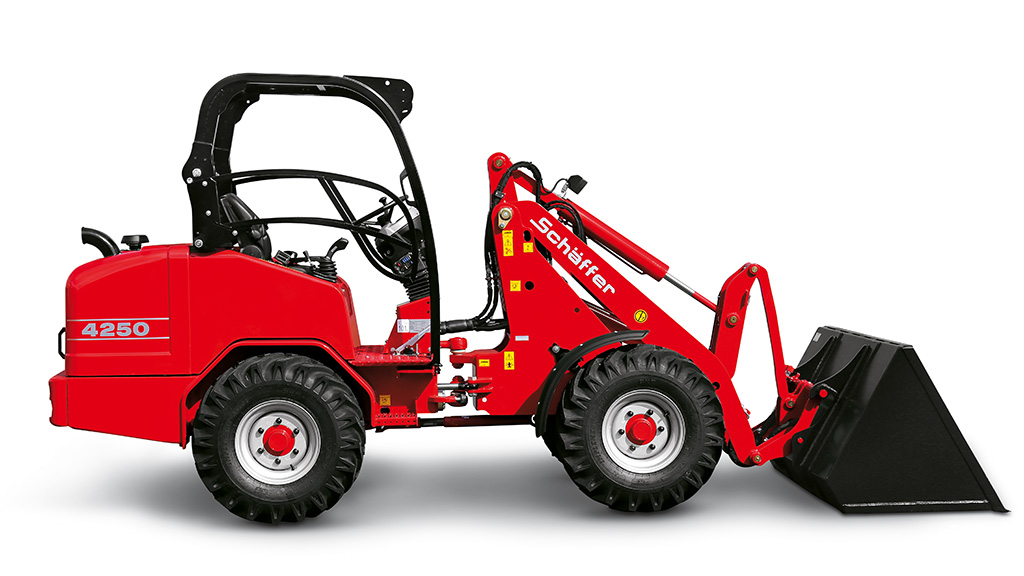

4250 Schäffer 4250 Specifications & Technical Data (2016—2018)

Weight: 3.3t – Standard tyres: 11.5/80-15.3 AS – Tipping load: 1913kg – Wheel base: 1.84m – Travel speed: 20km/h – Steering mode: KL

4250

Years of manufacture: 2016—2018

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - 4250 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 3.3 t

Standard tyres: 11.5/80-15.3 AS

Tipping load: 1913 kg

Wheel base: 1.84 m

Travel speed: 20 km/h

Steering mode: KL

Max. discharge height: 2.42 m

Turning radius outside: 2.88 m

Transport length: 3.68 m

Transport width: 1.68 m

Transport height: 2.27 m

Engine manuf.: Kubota

Engine type: k.A.

Engine power: 37 kW

No. of cylinders: 4

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, turning radius inside, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

4250 Schäffer Specification for Europe (DE)

Schäffer 4250 FAQ

When was the Schu00e4ffer 4250 manufactured?

The Schu00e4ffer 4250 was manufactured from 2016 to 2018.

What is the weight of the Schu00e4ffer 4250 yard loader?

The Schu00e4ffer 4250 yard loader has a weight of 3.3 tonnes.

What are the physical dimensions of the Schu00e4ffer 4250 yard loader?

The Schu00e4ffer 4250 yard loader has a transport length of 3.68 meters, a transport width of 1.68 meters, and a transport height of 2.27 meters.

What is the travel speed of the Schu00e4ffer 4250 yard loader?

The Schu00e4ffer 4250 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 4250 yard loader?

The Schu00e4ffer 4250 yard loader features articulated-frame steering and has an outside turning radius of 2.88 meters.

What are the standard tyre specifications for the Schu00e4ffer 4250?

The Schu00e4ffer 4250 is equipped with standard tyres sized 11.5/80-15.3 AS.

What is the wheel base of the Schu00e4ffer 4250 yard loader?

The Schu00e4ffer 4250 yard loader has a wheel base of 1.84 meters.

What is the mass capacity of the Schu00e4ffer 4250 yard loader?

The Schu00e4ffer 4250 yard loader has a tipping load of 1913 kilograms.

What is the maximum discharge height of the Schu00e4ffer 4250 yard loader?

The Schu00e4ffer 4250 has a maximum discharge height of 2.42 meters.

How much is a Schu00e4ffer 4250 Yard loader (2016u20132018) worth?

The residual value of the Schu00e4ffer 4250 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
