3650 T Schäffer 3650 T Specifications & Technical Data (2025—2026)

Weight: 3.8t – Standard tyres: 15.0/55-17 AS – Tipping load: 1710kg – Wheel base: 1.92m – Travel speed: 20km/h – Steering mode: KL

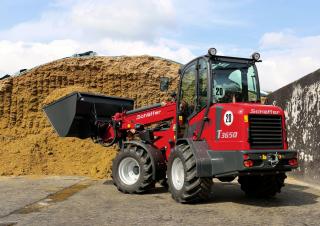

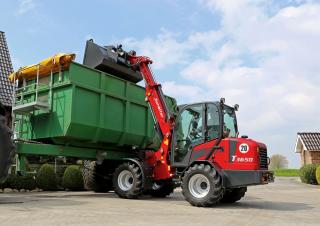

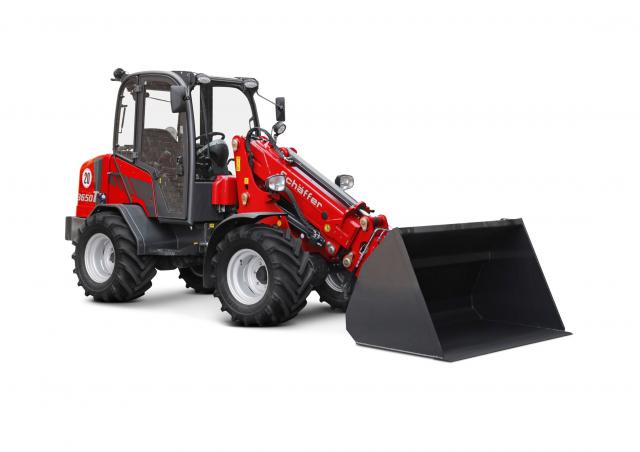

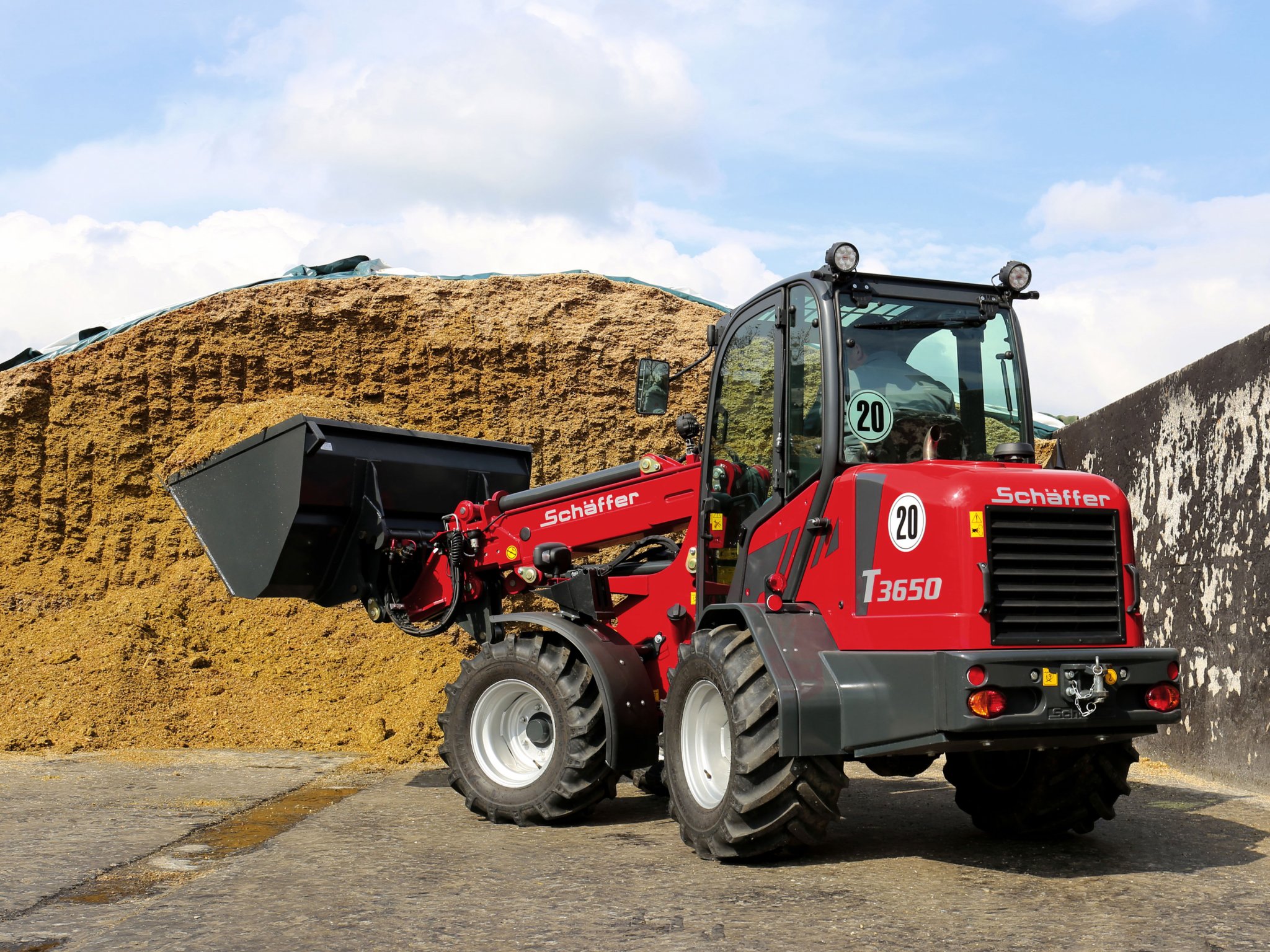

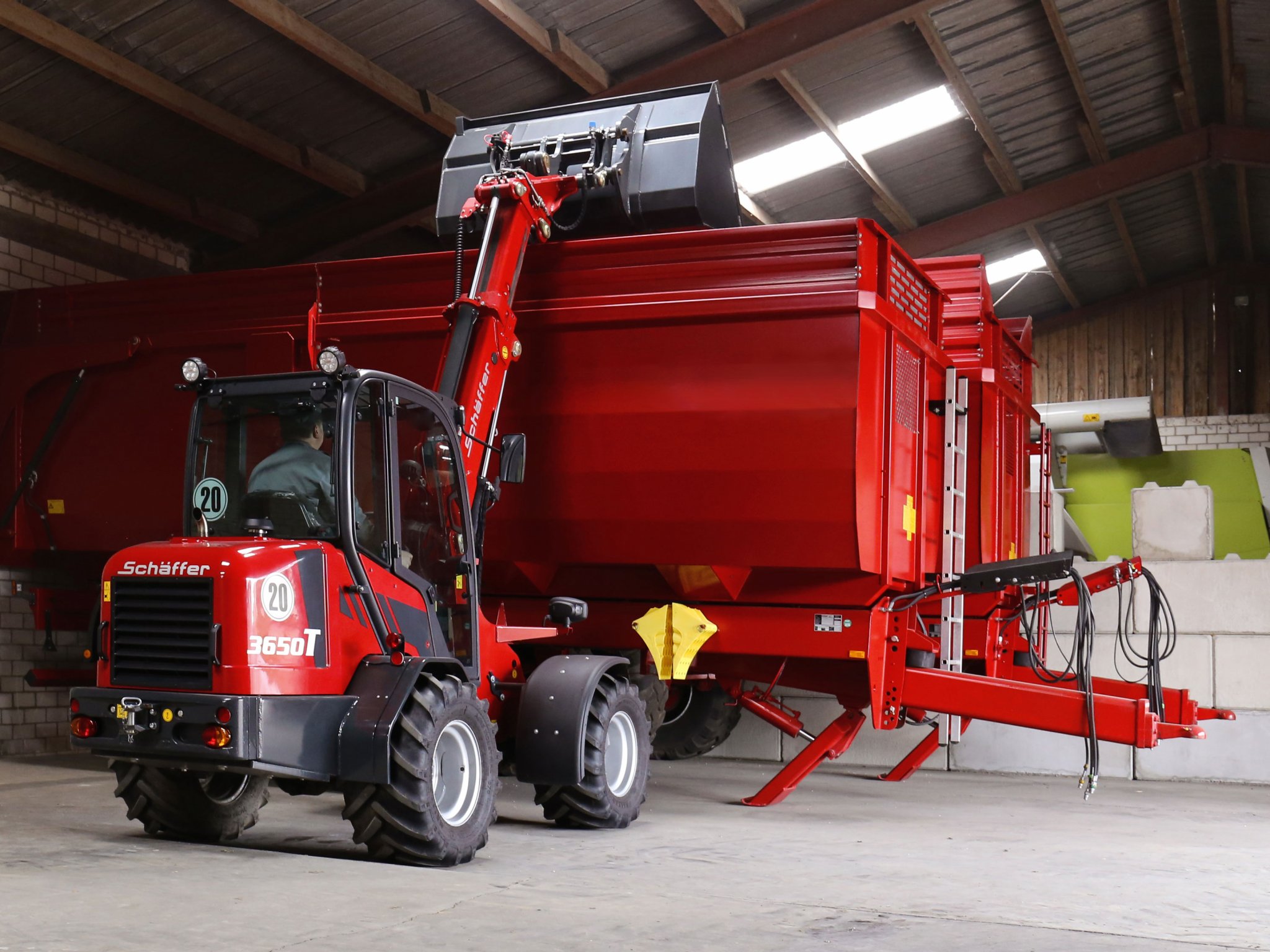

Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T
Yard loader Schäffer 3650 T

Visit Schäffer live at

Technical specs - 3650 T Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Standard tyres
15.0/55-17 AS
Tipping load
1710 kg
Wheel base
1.92 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
3.85 m
Overcharging height
3.58 m
Max. discharge height
3.01 m
Turning radius outside
3.06 m
Turning radius inside
2.71 m
Transport length
4.735 m
Transport width
1.73 m
Transport height
2.21 m
Engine manuf.
Kubota
Engine type
D1803-CR-T
Engine power
37 kW
No. of cylinders
3
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
