3650 SLT Schäffer 3650 SLT Specifications & Technical Data (2021—2026)

Weight: 2.7t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 1580kg – Wheel base: 1.8m – Travel speed: 20km/h – Steering mode: KL

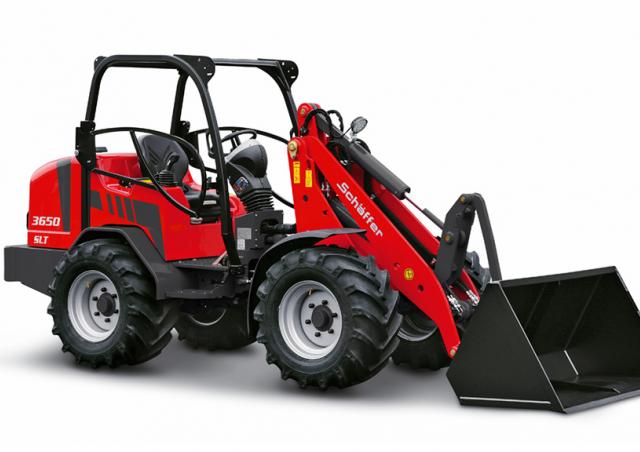

Yard loader Schäffer 3650 SLT

Technical specs - 3650 SLT Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.7 t
Standard tyres
10.0/75-15.3 AS
Tipping load
1580 kg
Wheel base
1.8 m
Travel speed
20 km/h
Steering mode
KL
max. height at the shovel pivot point
2.95 m
Overcharging height
2.81 m
Max. discharge height
2.14 m
Turning radius outside
2.33 m
Turning radius inside
1.23 m
Transport length
3.485 m
Transport width
1.57 m
Transport height
2.035 m
Engine manuf.
Kubota
Engine type
D1803-CR
Engine power
28 kW
No. of cylinders
3
Emission level
V

More technical details, like: operating weight, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 3650 SLT FAQ

When was the Schu00e4ffer 3650 SLT manufactured?

The Schu00e4ffer 3650 SLT was first produced in 2021.

What is the weight of the Schu00e4ffer 3650 SLT?

The Schu00e4ffer 3650 SLT has a weight of 2.7 tonnes.

What are the transport dimensions of the Schu00e4ffer 3650 SLT?

The Schu00e4ffer 3650 SLT has a transport length of 3.49 meters, a transport width of 1.57 meters, and a transport height of 2.04 meters.

What is the travel speed of the Schu00e4ffer 3650 SLT yard loader?

The Schu00e4ffer 3650 SLT yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 3650 SLT yard loader?

The Schu00e4ffer 3650 SLT features articulated-frame steering with an outside turning radius of 2.33 meters and an inside turning radius of 1.23 meters.

What are the standard tyre specifications for the Schu00e4ffer 3650 SLT?

The Schu00e4ffer 3650 SLT is equipped with standard tyres sized 10.0/75-15.3 AS.

What is the wheelbase of the Schu00e4ffer 3650 SLT yard loader?

The Schu00e4ffer 3650 SLT has a wheelbase of 1.8 meters.

What is the tipping load capacity of the Schu00e4ffer 3650 SLT yard loader?

The Schu00e4ffer 3650 SLT has a tipping load capacity of 1580 kilograms.

What is the maximum discharge height of the Schu00e4ffer 3650 SLT yard loader?

The Schu00e4ffer 3650 SLT has a maximum discharge height of 2.14 meters.

How much is a Schu00e4ffer 3650 SLT Yard loader (2021u20132025) worth?

The residual value of the Schu00e4ffer 3650 SLT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
