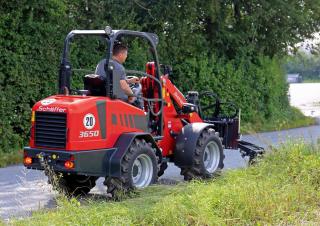

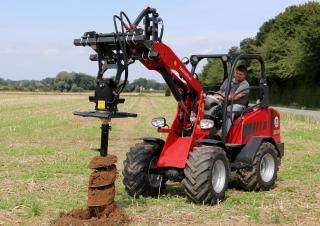

3650 Schäffer 3650 Specifications & Technical Data (2025—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Schäffer live at
Technical specs - 3650 Schäffer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.7 t
- Standard tyres
- 10.0/75-15.3 AS
- Tipping load
- 1980 kg
- Wheel base
- 1.8 m
- Travel speed
- 20 km/h
- Steering mode
- KL
- max. height at the shovel pivot point
- 2.95 m
- Overcharging height
- 2.81 m
- Max. discharge height
- 2.14 m
- Turning radius outside
- 3.02 m
- Turning radius inside
- 1.23 m
- Transport length
- 4.185 m
- Transport width
- 1.57 m
- Transport height
- 2.23 m
- Engine manuf.
- Kubota
- Engine type
- D1803-CR-T
- Engine power
- 37 kW
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: operating weight, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
