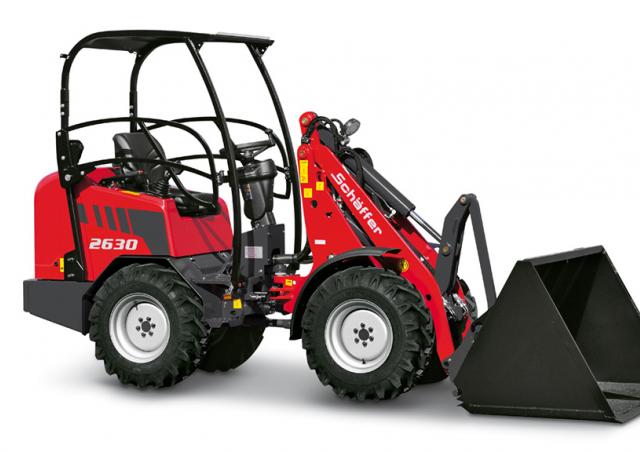

2630 Schäffer 2630 Specifications & Technical Data (2019—2026)
Technical specs - 2630 Schäffer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.1 t
- Standard tyres
- 10.0/75-15.3 AS
- Tipping load
- 1124 kg
- Wheel base
- 1.47 m
- Travel speed
- 20 km/h
- Steering mode
- KL
- Max. discharge height
- 2.09 m
- Turning radius outside
- 2.04 m
- Turning radius inside
- 1.2 m
- Transport length
- 2.95 m
- Transport width
- 1.3 m
- Transport height
- 2.18 m
- Engine manuf.
- Kubota
- Engine type
- D1703-M-DI
- Engine power
- 18.5 kW
- Displacement
- 1.647 l
- Revolutions at max torque
- 2400 rpm
- No. of cylinders
- 3
- Emission level
- V
More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
Schäffer 2630 FAQ
What is the weight of the Schu00e4ffer 2630 yard loader?
What are the physical dimensions of the Schu00e4ffer 2630 yard loader?
What is the travel speed of the Schu00e4ffer 2630 yard loader?
What are the maneuverability specifications of the Schu00e4ffer 2630 yard loader?
What are the standard tyre specifications for the Schu00e4ffer 2630 yard loader?
What is the wheelbase of the Schu00e4ffer 2630 yard loader?
What is the tipping load capacity of the Schu00e4ffer 2630 yard loader?
What is the maximum discharge height of the Schu00e4ffer 2630 yard loader?
How much is a Schu00e4ffer 2630 Yard loader (2019u20132025) worth?
Buy & Rent
Compare Schäffer 2630 with similar Yard loader
Schäffer 2630
- Weight:
- 2.1 t
- Standard tyres:
- 10.0/75-15.3 AS
- Tipping load:
- 1124 kg
- Wheel base:
- 1.47 m
Weidemann 1240 P 26
- Weight:
- 1.74 t
- Standard tyres:
- 27x8.50-15
Ostler K 2
- Weight:
- 1.75 t
- Standard tyres:
- 7.00-12
Sauerburger SH 200
- Weight:
- 1.875 t
- Standard tyres:
- 7.5 L 15 AS
- Tipping load:
- 1921 kg
- Wheel base:
- 1.4 m
Multione 7.3 SD
- Weight:
- 1.7 t
- Standard tyres:
- 23x10.50-12
- Tipping load:
- 1580 kg
