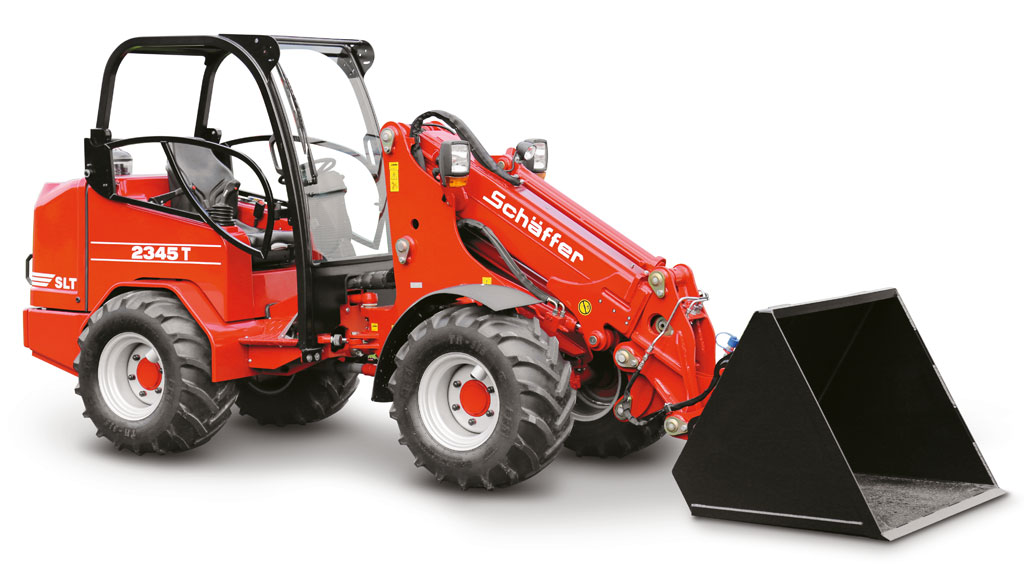

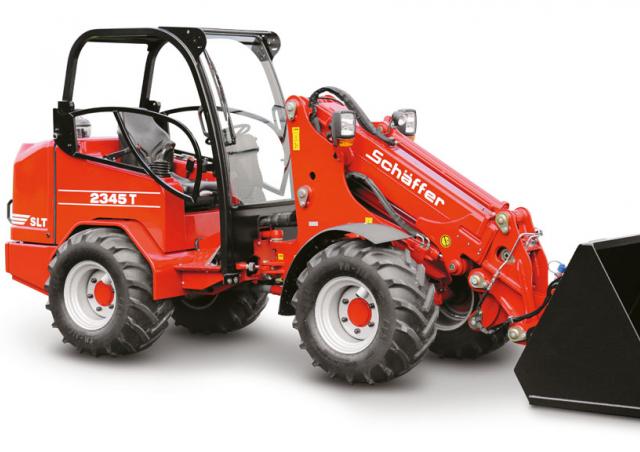

2345 T-SLT Schäffer 2345 T-SLT Specifications & Technical Data (2016—2021)

Weight: 2.9t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 1650kg – Wheel base: 1.91m – Travel speed: 20km/h – Steering mode: KL

2345 T-SLT

Years of manufacture: 2016—2021

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2345 T-SLT Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.9 t

Standard tyres: 10.0/75-15.3 AS

Tipping load: 1650 kg

Wheel base: 1.91 m

Travel speed: 20 km/h

Steering mode: KL

Max. discharge height: 3.01 m

Turning radius outside: 2.58 m

Turning radius inside: 0.98 m

Transport length: 3.932 m

Transport width: 1.48 m

Transport height: 1.95 m

Engine manuf.: Kubota

Engine type: N/A

Engine power: 33 kW

No. of cylinders: 4

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

2345 T-SLT Schäffer Specification for Europe (DE)

Schäffer 2345 T-SLT FAQ

When was the Schu00e4ffer 2345 T-SLT manufactured?

The Schu00e4ffer 2345 T-SLT was manufactured from 2016 to 2021.

What is the weight of the Schu00e4ffer 2345 T-SLT yard loader?

The Schu00e4ffer 2345 T-SLT yard loader weighs 2.9 tonnes.

What are the transport dimensions of the Schu00e4ffer 2345 T-SLT yard loader?

The Schu00e4ffer 2345 T-SLT has a transport length of 3.93 meters, a transport width of 1.48 meters, and a transport height of 1.95 meters.

What is the travel speed of the Schu00e4ffer 2345 T-SLT yard loader?

The Schu00e4ffer 2345 T-SLT yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 2345 T-SLT yard loader?

The Schu00e4ffer 2345 T-SLT features articulated-frame steering with an outside turning radius of 2.58 meters and an inside turning radius of 0.98 meters.

What are the standard tyre specifications for the Schu00e4ffer 2345 T-SLT?

The Schu00e4ffer 2345 T-SLT is equipped with standard tyres sized 10.0/75-15.3 AS.

What is the wheelbase of the Schu00e4ffer 2345 T-SLT yard loader?

The Schu00e4ffer 2345 T-SLT has a wheelbase of 1.91 meters.

What is the mass capacity of the Schu00e4ffer 2345 T-SLT?

The Schu00e4ffer 2345 T-SLT has a tipping load capacity of 1650 kilograms.

What is the maximum discharge height of the Schu00e4ffer 2345 T-SLT yard loader?

The Schu00e4ffer 2345 T-SLT has a maximum discharge height of 3.01 meters.
