2345 SLT Schäffer 2345 SLT Specifications & Technical Data (2016—2021)

Weight: 2.445t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 1321kg – Wheel base: 1.65m – Travel speed: 15km/h – Steering mode: KL

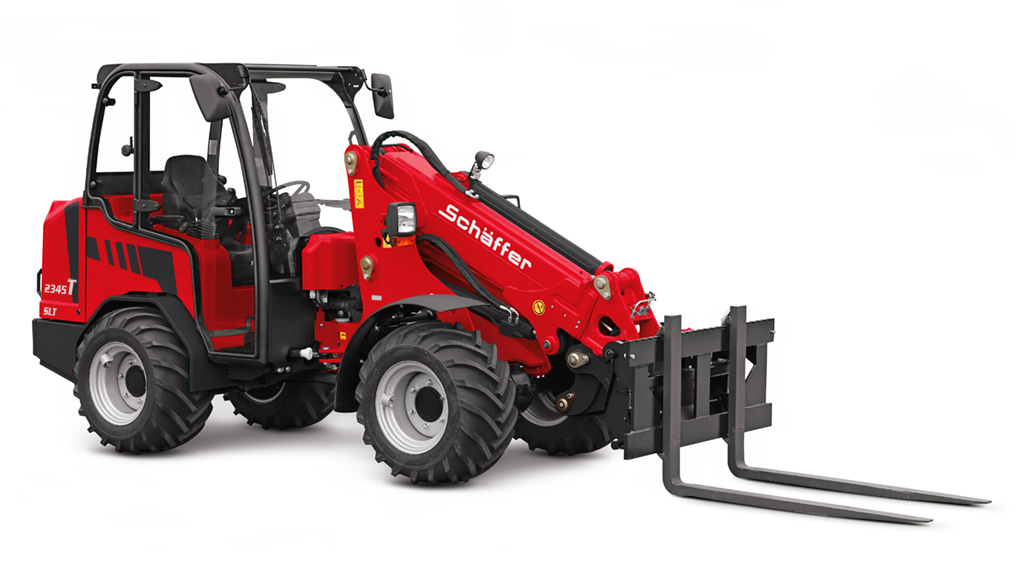

Yard loader Schäffer 2345 SLT

Technical specs - 2345 SLT Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.445 t
Standard tyres
10.0/75-15.3 AS
Tipping load
1321 kg
Wheel base
1.65 m
Travel speed
15 km/h
Steering mode
KL
Max. discharge height
2.045 m
Turning radius outside
1.89 m
Turning radius inside
0.87 m
Transport length
3.23 m
Transport width
1.57 m
Transport height
1.95 m
Engine manuf.
Kubota
Engine type
N/A
Engine power
33 kW
No. of cylinders
4

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Schäffer 2345 SLT FAQ

When was the Schu00e4ffer 2345 SLT manufactured?

The Schu00e4ffer 2345 SLT was manufactured from 2016 to 2021.

What is the weight of the Schu00e4ffer 2345 SLT?

The Schu00e4ffer 2345 SLT has a weight of 2.45 tonnes.

What are the transport dimensions of the Schu00e4ffer 2345 SLT yard loader?

The Schu00e4ffer 2345 SLT has a transport length of 3.23 meters, a transport width of 1.57 meters, and a transport height of 1.95 meters.

What is the travel speed of the Schu00e4ffer 2345 SLT yard loader?

The Schu00e4ffer 2345 SLT yard loader has a travel speed of 15 km/h.

What are the maneuverability specifications of the Schu00e4ffer 2345 SLT yard loader?

The Schu00e4ffer 2345 SLT features articulated-frame steering with an outside turning radius of 1.89 meters and an inside turning radius of 0.87 meters.

What are the standard tyre specifications for the Schu00e4ffer 2345 SLT?

The Schu00e4ffer 2345 SLT is equipped with standard tyres sized 10.0/75-15.3 AS.

What is the wheelbase of the Schu00e4ffer 2345 SLT yard loader?

The Schu00e4ffer 2345 SLT has a wheelbase of 1.65 meters.

What is the tipping load capacity of the Schu00e4ffer 2345 SLT yard loader?

The Schu00e4ffer 2345 SLT yard loader has a tipping load capacity of 1321 kilograms.

What is the maximum discharge height of the Schu00e4ffer 2345 SLT yard loader?

The Schu00e4ffer 2345 SLT has a maximum discharge height of 2.05 meters.

How much is a Schu00e4ffer 2345 SLT Yard loader (2016u20132021) worth?

The residual value of the Schu00e4ffer 2345 SLT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
