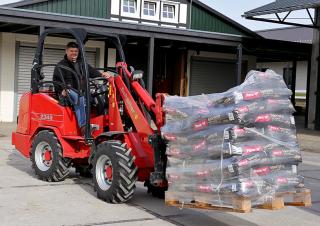

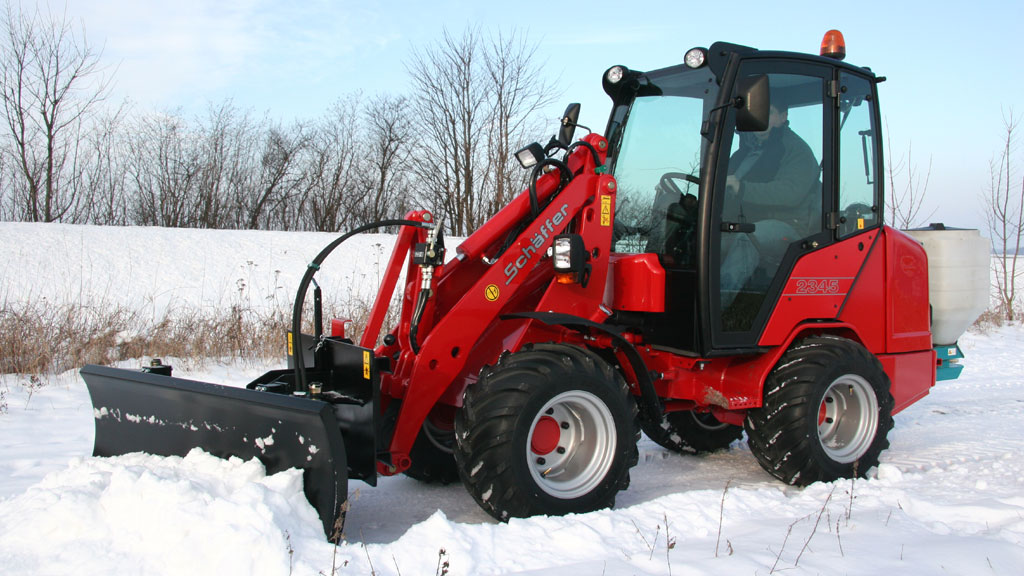

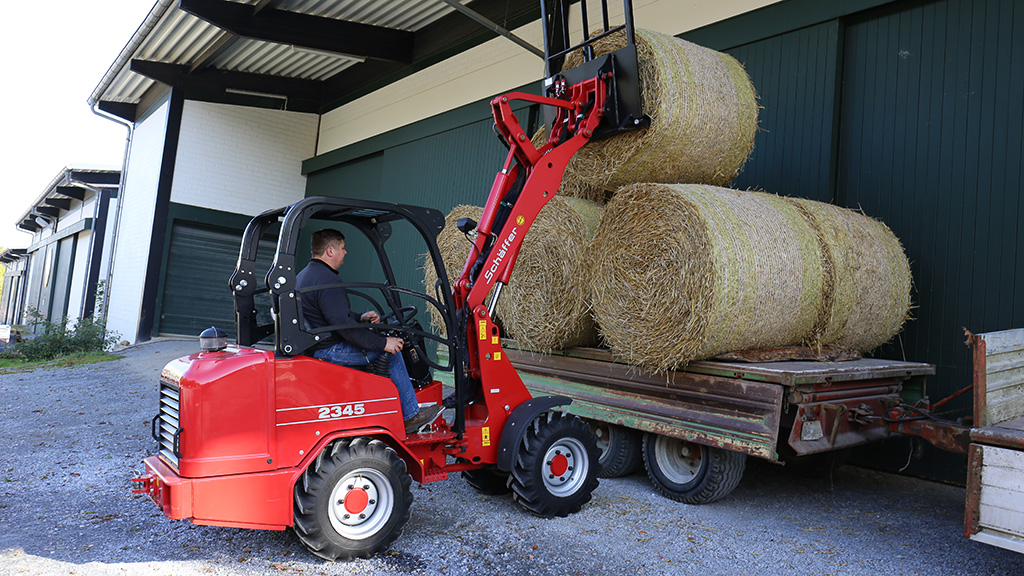

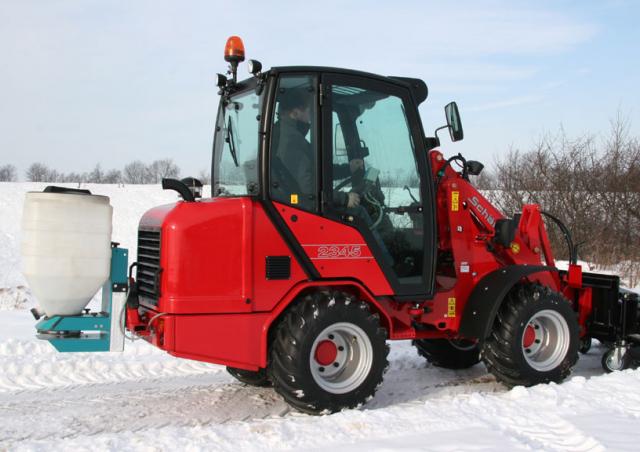

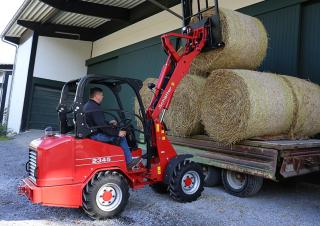

2345 Schäffer 2345 Specifications & Technical Data (2016—2021)

Weight: 2.55t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 1321kg – Wheel base: 1.55m – Travel speed: 20km/h – Steering mode: KL

2345

Years of manufacture: 2016—2021

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - 2345 Schäffer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.55 t

Standard tyres: 10.0/75-15.3 AS

Tipping load: 1321 kg

Wheel base: 1.55 m

Travel speed: 20 km/h

Steering mode: KL

Max. discharge height: 2.045 m

Turning radius outside: 1.855 m

Turning radius inside: 0.835 m

Transport length: 3.23 m

Transport width: 1.57 m

Transport height: 2.11 m

Engine manuf.: Kubota

Engine type: N/A

Engine power: 33 kW

No. of cylinders: 4

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Schäffer 2345 FAQ

When was the Schu00e4ffer 2345 manufactured?

The Schu00e4ffer 2345 was manufactured from 2016 to 2021.

What is the weight of the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader has a weight of 2.55 tonnes.

What are the physical dimensions of the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader has a transport length of 3.23 meters, a transport width of 1.57 meters, and a transport height of 2.11 meters.

What is the travel speed of the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader features articulated-frame steering with an outside turning radius of 1.855 meters and an inside turning radius of 0.835 meters.

What are the tyre specifications for the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader is equipped with standard tyres sized 10.0/75-15.3 AS.

What is the wheelbase of the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader has a wheelbase of 1.55 meters.

What is the tipping load capacity of the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader has a tipping load capacity of 1321 kilograms.

What is the maximum discharge height of the Schu00e4ffer 2345 yard loader?

The Schu00e4ffer 2345 yard loader has a maximum discharge height of 2.05 meters.

How much is a Schu00e4ffer 2345 Yard loader (2016u20132021) worth?

The residual value of the Schu00e4ffer 2345 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
