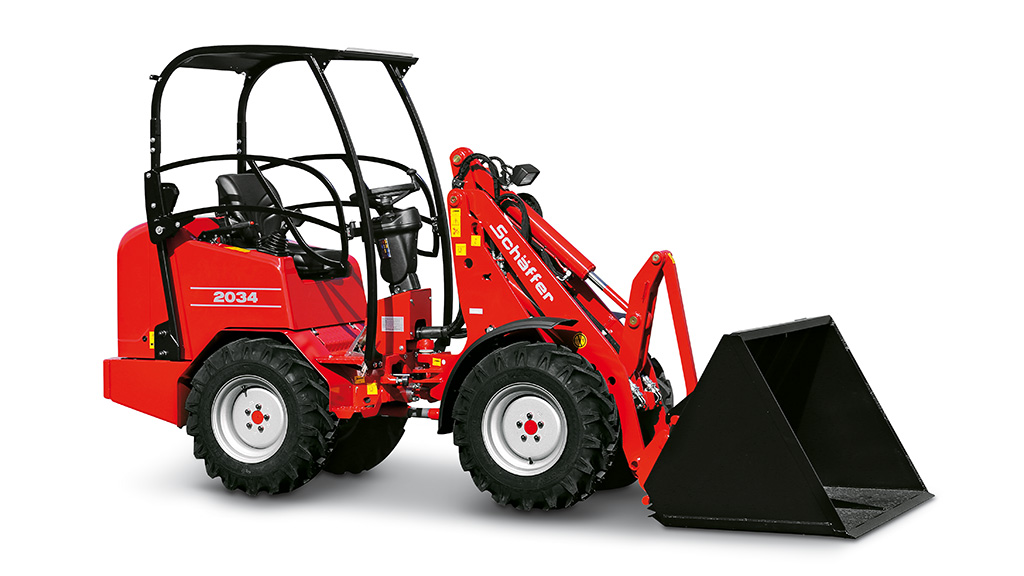

2034 Schäffer 2034 Specifications & Technical Data (2016—2021)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - 2034 Schäffer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 2.1 t
- Standard tyres
- 10.0/75-15.3 AS
- Tipping load
- 1124 kg
- Wheel base
- 1.44 m
- Travel speed
- 15 km/h
- Steering mode
- KL
- Max. discharge height
- 2.09 m
- Turning radius outside
- 2.04 m
- Turning radius inside
- 1.02 m
- Transport length
- 2.92 m
- Transport width
- 1.3 m
- Transport height
- 2.18 m
- Engine manuf.
- Kubota
- Engine type
- N/A
- Engine power
- 26 kW
More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
Yes
Download datasheets (PDF)
Schäffer 2034 FAQ
What is the weight of the Schu00e4ffer 2034 yard loader?
What are the transport dimensions of the Schu00e4ffer 2034 yard loader?
What is the travel speed of the Schu00e4ffer 2034 yard loader?
What are the maneuverability specifications of the Schu00e4ffer 2034 yard loader?
What are the standard tyre specifications for the Schu00e4ffer 2034 yard loader?
What is the chassis specification of the Schu00e4ffer 2034?
What is the mass capacity of the Schu00e4ffer 2034 yard loader?
What is the maximum discharge height of the Schu00e4ffer 2034 yard loader?
How much is a Schu00e4ffer 2034 Yard loader (2016u20132021) worth?
