2024 SLT Schäffer 2024 SLT Specifications & Technical Data (2016—2021)
.jpg)
.jpg)
Technical specs - 2024 SLT Schäffer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 1.75 t
- Standard tyres
- 7.00-12 AS
- Tipping load
- 939 kg
- Wheel base
- 1.64 m
- Travel speed
- 12 km/h
- Steering mode
- KL
- Max. discharge height
- 1.965 m
- Turning radius outside
- 1.85 m
- Turning radius inside
- 0.76 m
- Transport length
- 3.16 m
- Transport width
- 1.25 m
- Transport height
- 1.89 m
- Engine manuf.
- Kubota
- Engine type
- D1703-M-DI
- Engine power
- 18.5 kW
- Displacement
- 1.647 l
- Revolutions at max torque
- 2200 rpm
- No. of cylinders
- 3
- Emission level
- Tier 4b
More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
No
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
No
- Quick hitch mech.
-
No
Download datasheets (PDF)
Schäffer 2024 SLT FAQ
What is the weight of the Schu00e4ffer 2024 SLT yard loader?
What are the physical dimensions of the Schu00e4ffer 2024 SLT yard loader?
What is the travel speed of the Schu00e4ffer 2024 SLT yard loader?
What are the maneuverability specifications of the Schu00e4ffer 2024 SLT yard loader?
What are the standard tyre specifications for the Schu00e4ffer 2024 SLT?
What is the wheelbase of the Schu00e4ffer 2024 SLT yard loader?
What is the mass capacity of the Schu00e4ffer 2024 SLT?
What is the maximum discharge height of the Schu00e4ffer 2024 SLT yard loader?
How much is a Schu00e4ffer 2024 SLT Yard loader (2016u20132021) worth?
Buy & Rent
Compare Schäffer 2024 SLT with similar Yard loader
.jpg)

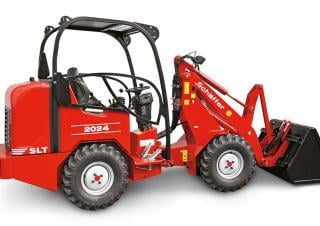

Schäffer 2024 SLT
