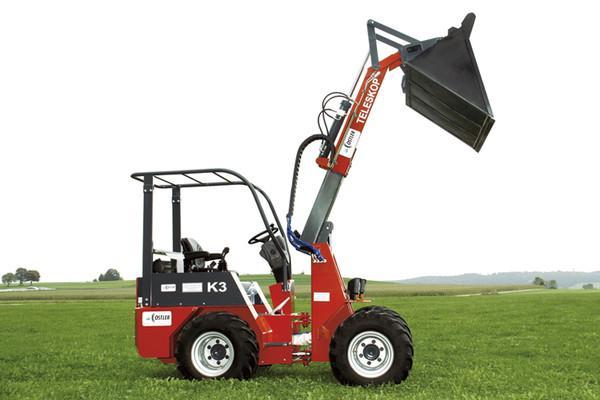

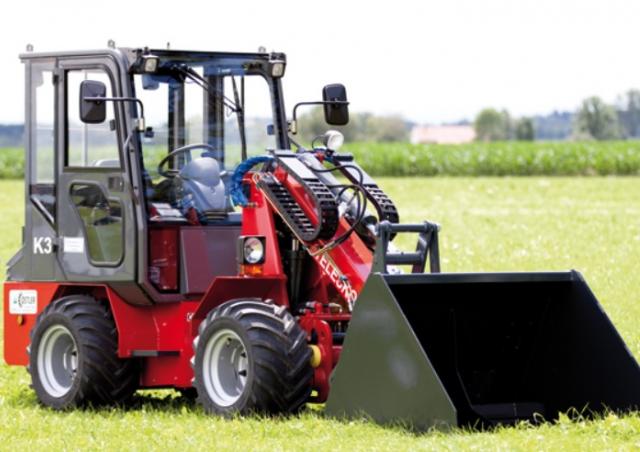

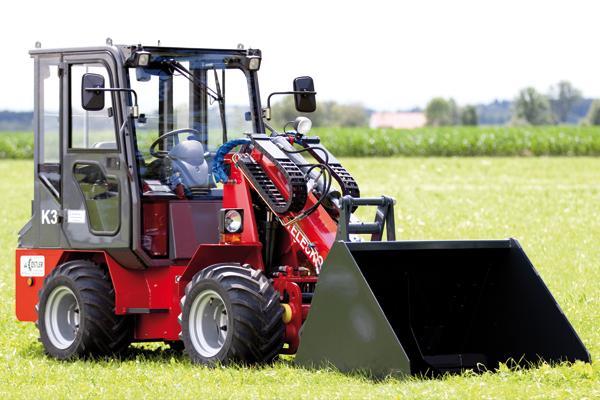

K3 Ostler K3 Specifications & Technical Data (2004—2021)

Weight: 2.28t – Standard tyres: 10.0/75-15.3 AS – Tipping load: 1600kg – Travel speed: 18km/h – Steering mode: KL – Max. discharge height: 3.3m

Years of manufacture: 2004—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - K3 Ostler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.28 t

Standard tyres: 10.0/75-15.3 AS

Tipping load: 1600 kg

Travel speed: 18 km/h

Steering mode: KL

Max. discharge height: 3.3 m

Turning radius outside: 2.56 m

Turning radius inside: 1.4 m

Transport length: 3 m

Transport width: 1.2 m

Transport height: 2.2 m

Engine manuf.: Perkins

Engine type: k.A.

Engine power: 36 kW

Displacement: 2.216 l

No. of cylinders: 4

More technical details, like: operating weight, wheel base, max. height at the shovel pivot point, overcharging height, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin: No
telescopic: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: Yes

Download datasheets (PDF)

Ostler K3 FAQ

When was the Ostler K3 manufactured?

The Ostler K3 was manufactured from 2004 to 2021.

What is the weight of the Ostler K3 yard loader?

The Ostler K3 yard loader has a weight of 2.28 tonnes.

What are the physical dimensions of the Ostler K3 yard loader?

The Ostler K3 yard loader has a transport length of 3 meters, a transport width of 1.2 meters, and a transport height of 2.2 meters.

What is the travel speed of the Ostler K3 yard loader?

The Ostler K3 yard loader has a travel speed of 18 km/h.

What are the maneuverability specifications of the Ostler K3 yard loader?

The Ostler K3 yard loader features articulated-frame steering with an outside turning radius of 2.56 meters and an inside turning radius of 1.4 meters.

What are the standard tyre specifications for the Ostler K3?

The Ostler K3 is equipped with standard tyres sized 10.0/75-15.3 AS.

What is the tipping load capacity of the Ostler K3 yard loader?

The Ostler K3 has a tipping load capacity of 1600 kilograms.

What is the maximum discharge height of the Ostler K3 yard loader?

The Ostler K3 yard loader has a maximum discharge height of 3.3 meters.

How much is a Ostler K3 Yard loader (2004u20132021) worth?

The residual value of the Ostler K3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
