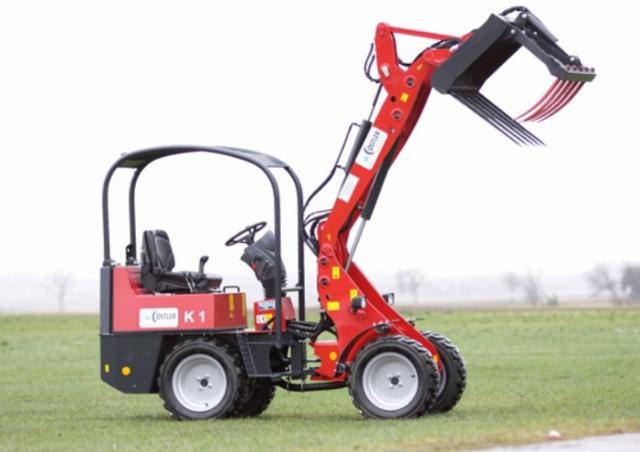

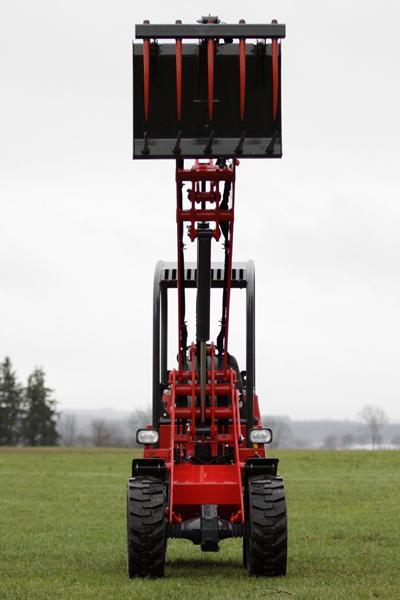

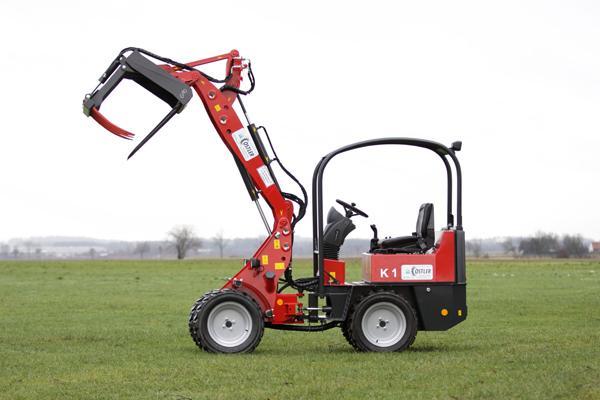

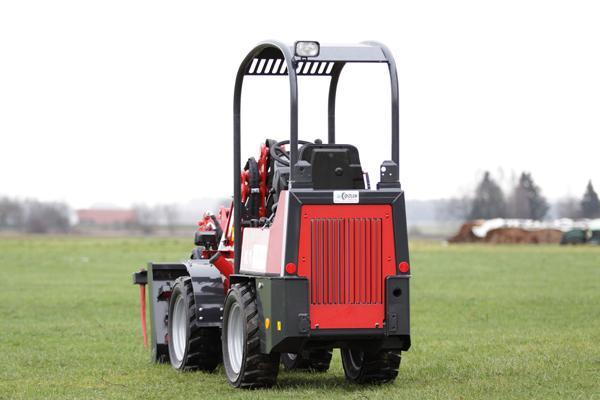

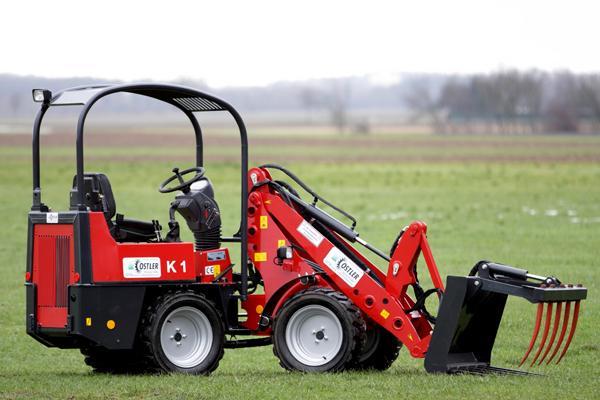

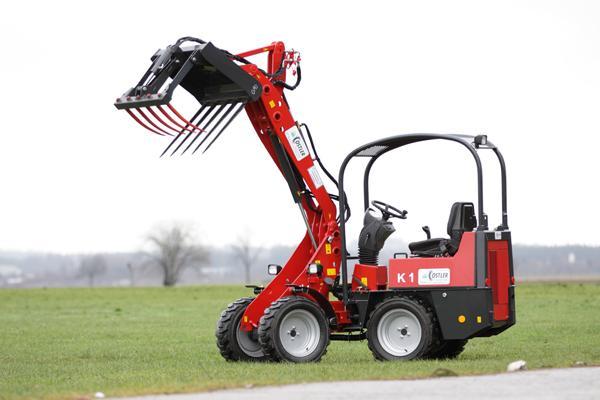

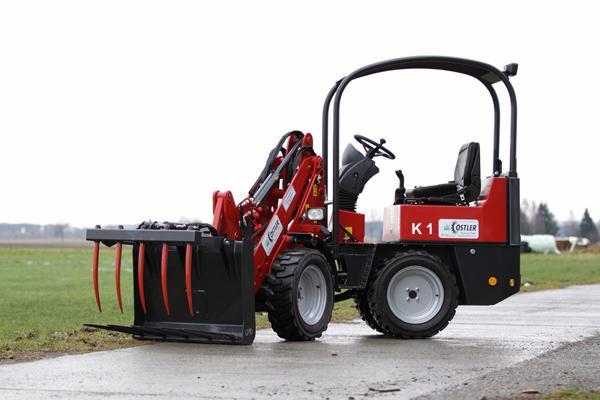

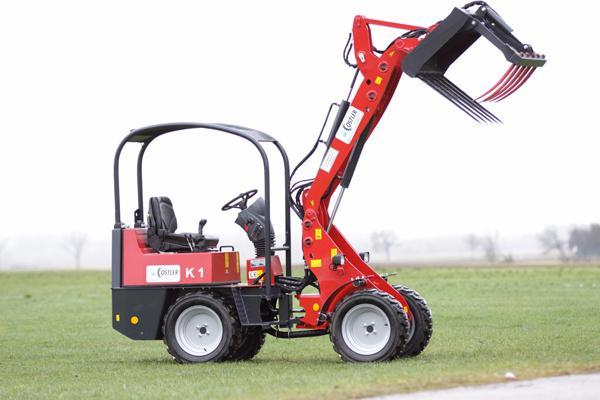

K1 Ostler K1 Specifications & Technical Data (2012—2019)

Weight: 1.38t – Standard tyres: 7.00-12AS – Travel speed: 12km/h – Steering mode: KL – Max. discharge height: 2.5m – Turning radius outside: 1.84m

Technical specs - K1 Ostler

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.38 t
Standard tyres
7.00-12AS
Travel speed
12 km/h
Steering mode
KL
Max. discharge height
2.5 m
Turning radius outside
1.84 m
Transport length
3 m
Transport width
0.9 m
Transport height
2.1 m
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
17.9 kW
Displacement
1.115 l
Revolutions at max torque
2500 rpm

More technical details, like: operating weight, tipping load, wheel base, max. height at the shovel pivot point, overcharging height, turning radius inside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
Yes

Download datasheets (PDF)

Ostler K1 FAQ

When was the Ostler K1 manufactured?

The Ostler K1 was manufactured from 2012 to 2019.

What is the weight of the Ostler K1 yard loader?

The Ostler K1 yard loader has a weight of 1.38 tonnes.

What are the transport dimensions of the Ostler K1 yard loader?

The Ostler K1 yard loader has a transport length of 3 meters, a transport width of 0.9 meters, and a transport height of 2.1 meters.

What is the travel speed of the Ostler K1 yard loader?

The Ostler K1 yard loader has a travel speed of 12 km/h.

What are the maneuverability specifications of the Ostler K1 yard loader?

The Ostler K1 yard loader features articulated-frame steering and has an outside turning radius of 1.84 meters.

What are the standard tyre specifications of the Ostler K1 yard loader?

The Ostler K1 yard loader is equipped with standard tyres sized 7.00-12AS.

What is the maximum discharge height of the Ostler K1 yard loader?

The Ostler K1 yard loader has a maximum discharge height of 2.5 meters.

How much is a Ostler K1 Yard loader (2012u20132019) worth?

The residual value of the Ostler K1 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
