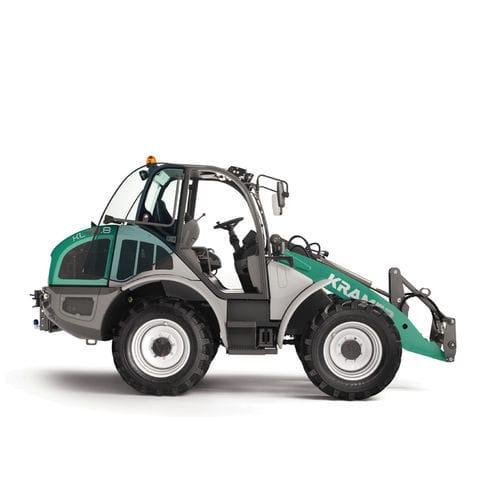

KL43.8 Kramer KL43.8 Specifications & Technical Data (2019—2026)
.png)
.png)
Technical specs - KL43.8 Kramer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- operating weight
- 6.05 t
- Standard tyres
- 405/70-24
- Tipping load
- 4250 kg
- Wheel base
- 2.15 m
- Travel speed
- 20 km/h
- Steering mode
- A
- max. height at the shovel pivot point
- 3.45 m
- Overcharging height
- 3.2 m
- Max. discharge height
- 2.65 m
- Turning radius outside
- 3 m
- Transport length
- 5.8 m
- Transport width
- 1.97 m
- Transport height
- 2.69 m
- Engine manuf.
- Deutz
- Engine type
- TCD2.9
- Engine power
- 55.4 kW
- Displacement
- 2.924 l
- Max. torque
- 300/1600 Nm
- Emission level
- V
More technical details, like: weight, turning radius inside, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Download datasheets (PDF)
Kramer KL43.8 FAQ
What is the operating weight of the Kramer KL43.8?
What are the transport dimensions of the Kramer KL43.8 yard loader?
What is the travel speed of the Kramer KL43.8?
What are the maneuverability specifications of the Kramer KL43.8 yard loader?
What are the tyre specifications of the Kramer KL43.8 yard loader?
What is the wheelbase of the Kramer KL43.8 yard loader?
What is the tipping load capacity of the Kramer KL43.8 yard loader?
What are the working height and reach specifications of the Kramer KL43.8 yard loader?
How much is a Kramer KL43.8 Yard loader (2019u20132025) worth?
Buy & Rent
Compare Kramer KL43.8 with similar Yard loader
.png)

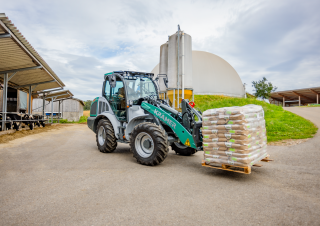

Kramer KL43.8
