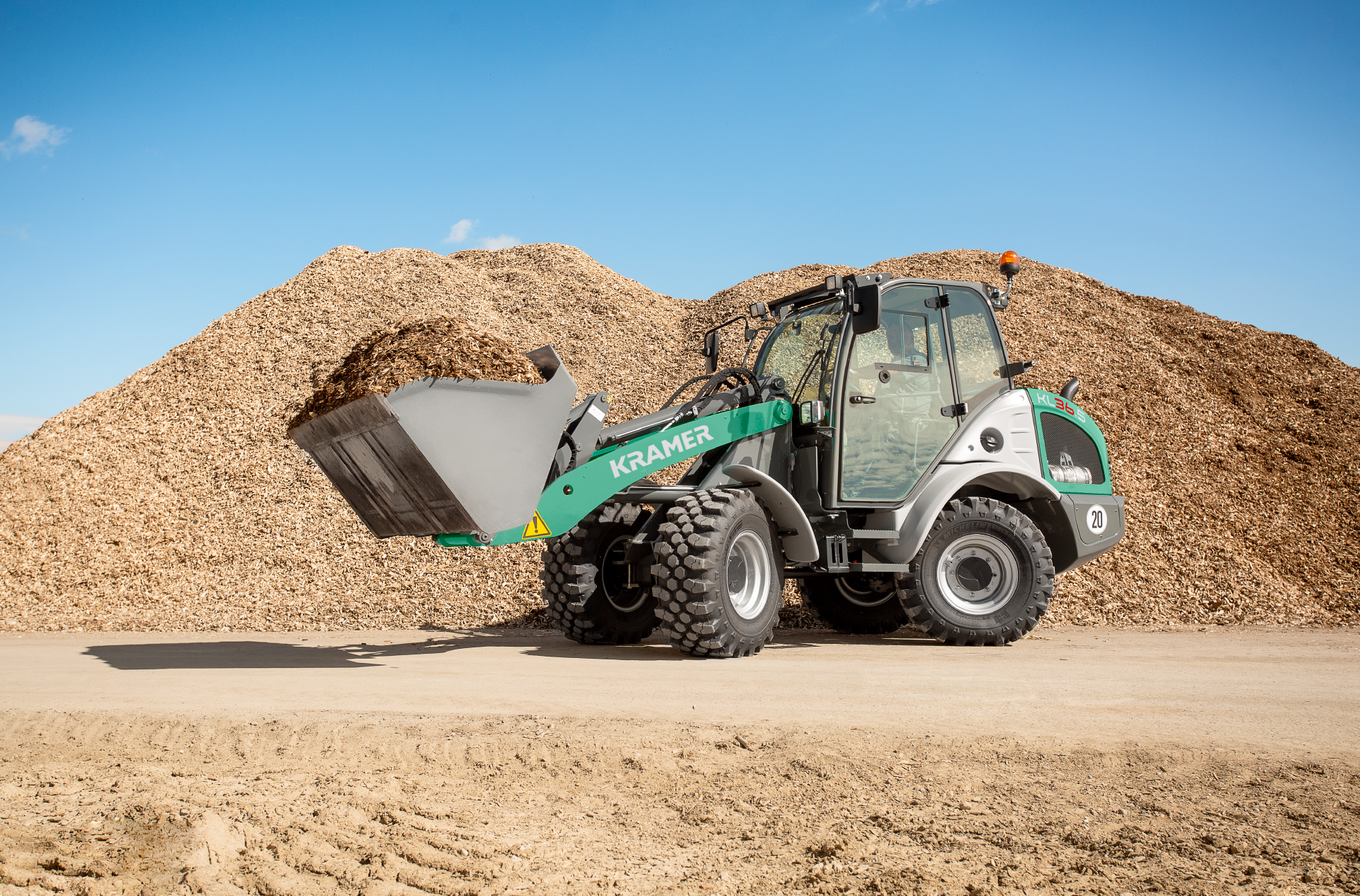

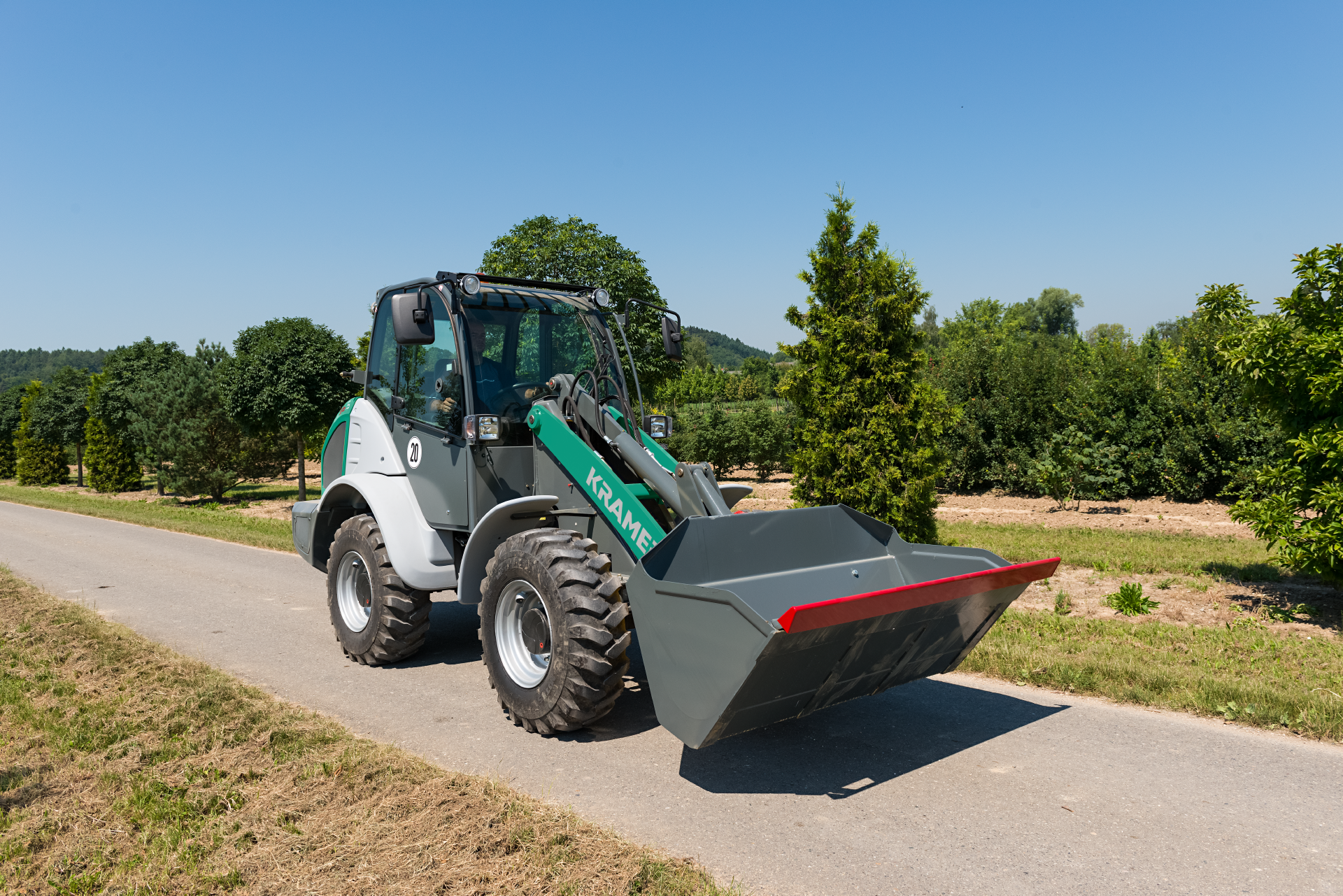

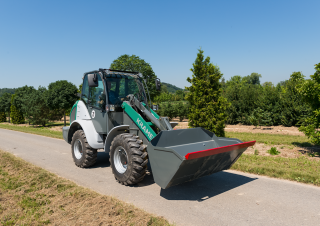

KL36.5L Kramer KL36.5L Specifications & Technical Data (2019—2026)
.png)
.png)
.png)
.png)
Technical specs - KL36.5L Kramer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- operating weight
- 4.693 t
- Standard tyres
- 340/80-20
- Tipping load
- 3050 kg
- Wheel base
- 2.02 m
- Travel speed
- 20 km/h
- Steering mode
- A
- max. height at the shovel pivot point
- 3.499 m
- Overcharging height
- 3.36 m
- Max. discharge height
- 2.82 m
- Turning radius outside
- 2.84 m
- Transport length
- 4.92 m
- Transport width
- 1.74 m
- Transport height
- 2.48 m
- Engine manuf.
- Kohler
- Engine type
- KDI2504TCRS5
- Engine power
- 55.4 kW
- Displacement
- 2.482 l
- Revolutions at max torque
- 2600 rpm
- Max. torque
- 300/1500 Nm
- No. of cylinders
- 4
- Emission level
- V
More technical details, like: weight, turning radius inside, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Download datasheets (PDF)
