KL36.5 Kramer KL36.5 Specifications & Technical Data (2025—2026)

operating weight: 4.693t – Tipping load: 3700kg – Wheel base: 2.02m – Travel speed: 20km/h – Steering mode: A – max. height at the shovel pivot point: 3.35m

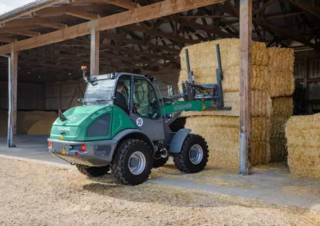

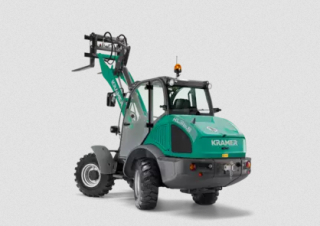

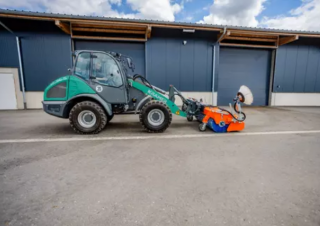

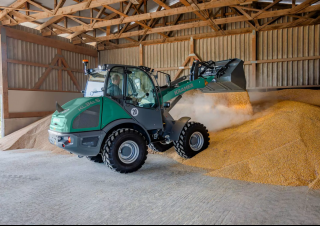

Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5
Yard loader Kramer KL36.5

Technical specs - KL36.5 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

operating weight
4.693 t
Tipping load
3700 kg
Wheel base
2.02 m
Travel speed
20 km/h
Steering mode
A
max. height at the shovel pivot point
3.35 m
Overcharging height
3.21 m
Max. discharge height
2.68 m
Turning radius outside
2.84 m
Transport length
5.27 m
Transport width
1.74 m
Transport height
2.48 m
Engine manuf.
Rehlko
Engine type
k.A.
Engine power
55.4 kW
Displacement
2.482 l
No. of cylinders
4
Emission level
V

More technical details, like: weight, standard tyres, turning radius inside, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No
