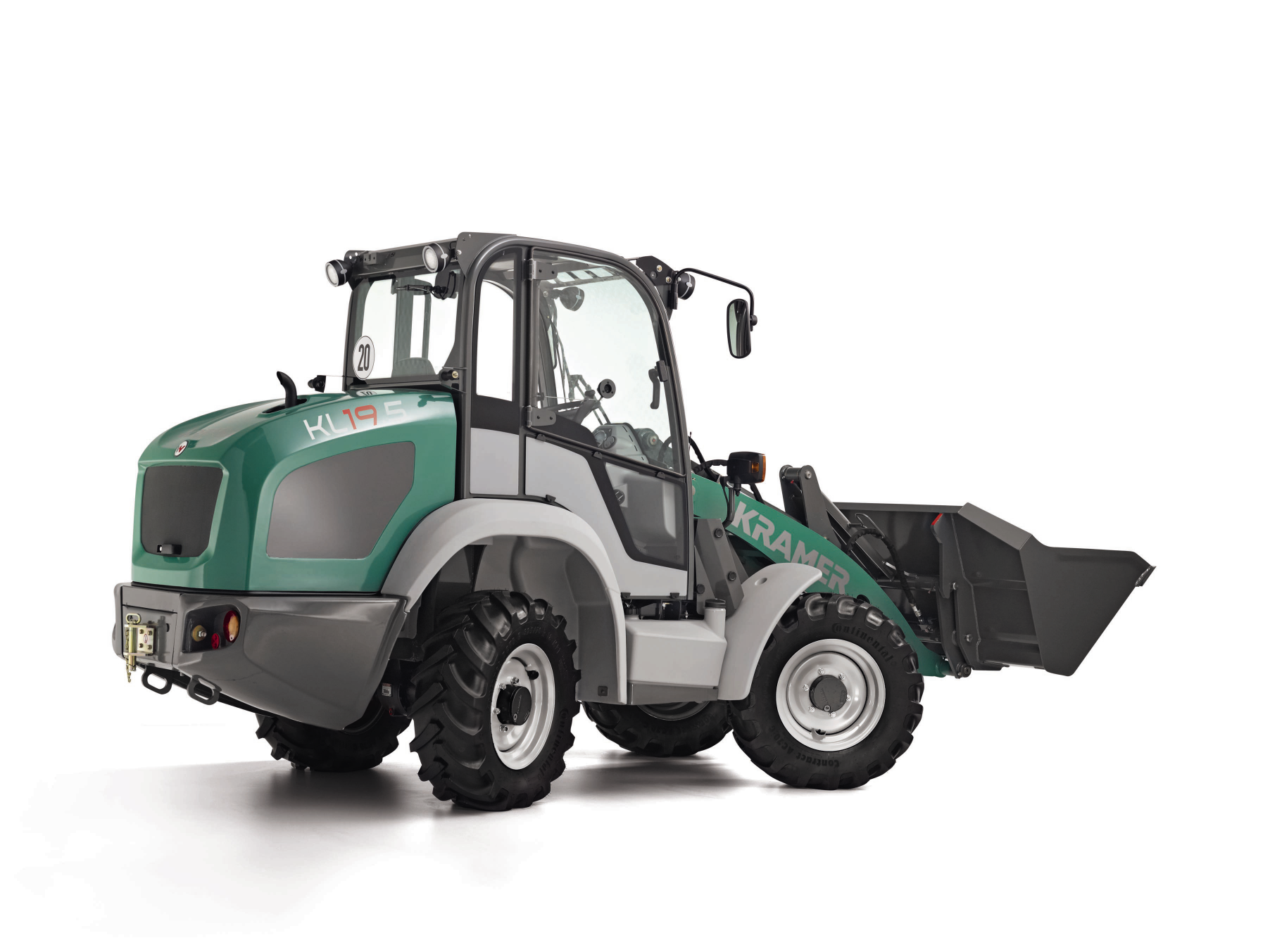

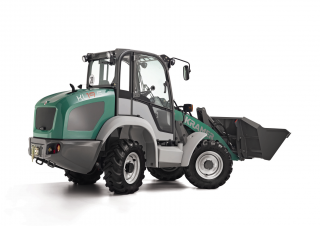

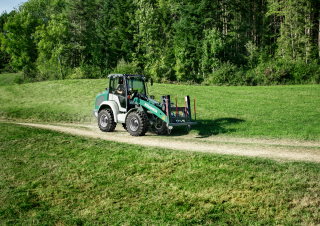

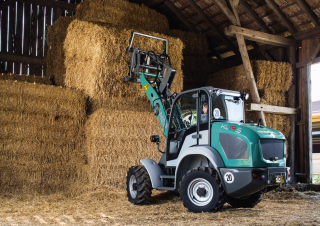

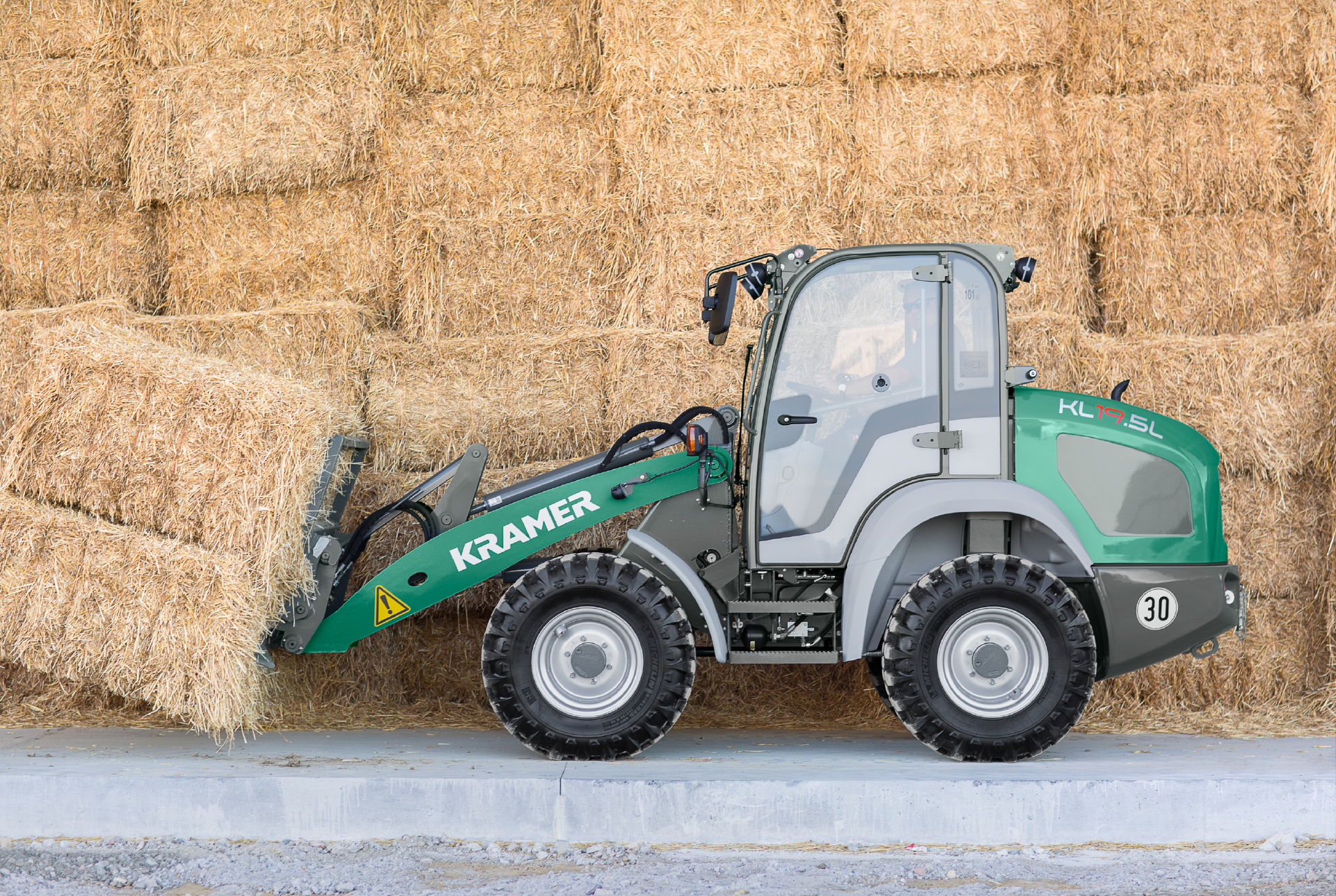

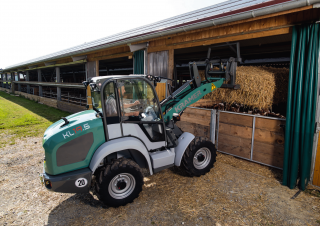

KL19.5L Kramer KL19.5L Specifications & Technical Data (2019—2026)

operating weight: 3.45t – Standard tyres: 10.5-18 – Tipping load: 1780kg – Wheel base: 1.85m – Travel speed: 20km/h – Steering mode: A

KL19.5L

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - KL19.5L Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

operating weight: 3.45 t

Standard tyres: 10.5-18

Tipping load: 1780 kg

Wheel base: 1.85 m

Travel speed: 20 km/h

Steering mode: A

max. height at the shovel pivot point: 3.3 m

Overcharging height: 3.15 m

Max. discharge height: 2.65 m

Turning radius outside: 2.76 m

Transport length: 5.14 m

Transport width: 1.59 m

Transport height: 2.39 m

Engine manuf.: Yanmar

Engine type: 4TNV88C

Engine power: 34 kW

Displacement: 2.19 l

Revolutions at max torque: 1950 rpm

Max. torque: 140 Nm

No. of cylinders: 4

Cylinder bore x stroke: 88x90 mm

Emission level: V

More technical details, like: weight, turning radius inside, model series, dimension lxwxh are available in the full technical specs.

Special equipment

Cabin: No
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Kramer KL19.5L FAQ

When did production of the Kramer KL19.5L start?

The Kramer KL19.5L was first produced in 2019.

What is the operating weight of the Kramer KL19.5L?

The Kramer KL19.5L has an operating weight of 3.45 tonnes.

What are the physical dimensions of the Kramer KL19.5L yard loader?

The Kramer KL19.5L has a transport length of 5.14 meters, a transport width of 1.59 meters, and a transport height of 2.39 meters.

What is the travel speed of the Kramer KL19.5L yard loader?

The Kramer KL19.5L yard loader has a travel speed of 20 km/h.

What are the maneuverability specifications of the Kramer KL19.5L yard loader?

The Kramer KL19.5L yard loader features all-wheel steering and has an outside turning radius of 2.76 meters.

What are the wheel and tyre specifications of the Kramer KL19.5L?

The Kramer KL19.5L is equipped with standard tyres sized 10.5-18.

What is the wheelbase of the Kramer KL19.5L?

The Kramer KL19.5L has a wheelbase of 1.85 meters.

What is the tipping load capacity of the Kramer KL19.5L?

The Kramer KL19.5L has a tipping load capacity of 1780 kilograms.

What are the working height and reach specifications of the Kramer KL19.5L yard loader?

The Kramer KL19.5L has an overcharging height of 3.15 meters, a maximum discharge height of 2.65 meters, and a maximum height at the shovel pivot point of 3.3 meters.

How much is a Kramer KL19.5L Yard loader (2019u20132025) worth?

The residual value of the Kramer KL19.5L depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Buy & Rent

Compare Kramer KL19.5L with similar Yard loader

Kramer KL19.5L

operating weight:: 3.45 t

Standard tyres:: 10.5-18

Tipping load:: 1780 kg

Wheel base:: 1.85 m

Kramer KL10.5

operating weight:: 1.555 t

Standard tyres:: 28x9.00-15

Tipping load:: 1080 kg

Wheel base:: 1.525 m
