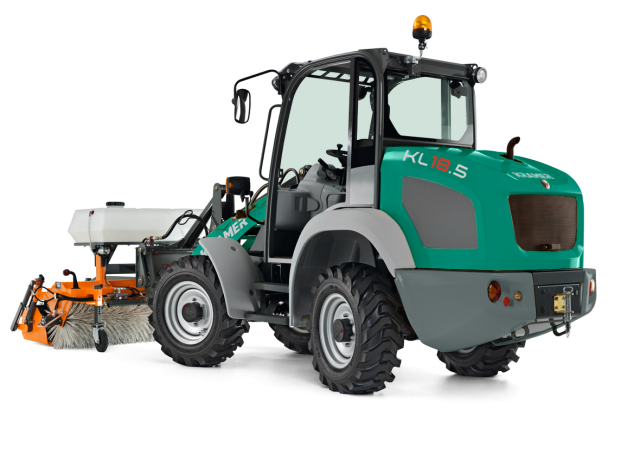

KL18.5 Kramer KL18.5 Specifications & Technical Data (2019—2026)
.png)
Technical specs - KL18.5 Kramer
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- operating weight
- 2.685 t
- Standard tyres
- 10.5-18
- Tipping load
- 1800 kg
- Wheel base
- 1.85 m
- Travel speed
- 20 km/h
- Steering mode
- A
- max. height at the shovel pivot point
- 2.84 m
- Overcharging height
- 2.61 m
- Max. discharge height
- 2.08 m
- Turning radius outside
- 2.7 m
- Transport length
- 4.79 m
- Transport width
- 1.59 m
- Transport height
- 2.39 m
- Engine manuf.
- Yanmar
- Engine type
- 4TNV88C
- Engine power
- 34 kW
- Displacement
- 2.19 l
- Revolutions at max torque
- 1950 rpm
- Max. torque
- 140 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 88x90 mm
- Emission level
- V
More technical details, like: weight, turning radius inside, model series, dimension lxwxh are available in the full technical specs.
Special equipment
- Cabin
-
Yes
- telescopic
-
No
- Aircondition
-
No
- Quick hitch hydr.
-
Yes
- Quick hitch mech.
-
No
Download datasheets (PDF)
Kramer KL18.5 FAQ
What is the operating weight of the Kramer KL18.5?
What are the physical transport dimensions of the Kramer KL18.5 yard loader?
What is the travel speed of the Kramer KL18.5 yard loader?
What are the maneuverability specifications of the Kramer KL18.5 yard loader?
What are the standard tyre specifications for the Kramer KL18.5?
What is the wheelbase of the Kramer KL18.5 yard loader?
What is the tipping load capacity of the Kramer KL18.5?
What are the working height and reach specifications of the Kramer KL18.5 yard loader?
How much is a Kramer KL18.5 Yard loader (2019u20132025) worth?
Buy & Rent
Compare Kramer KL18.5 with similar Yard loader
.png)

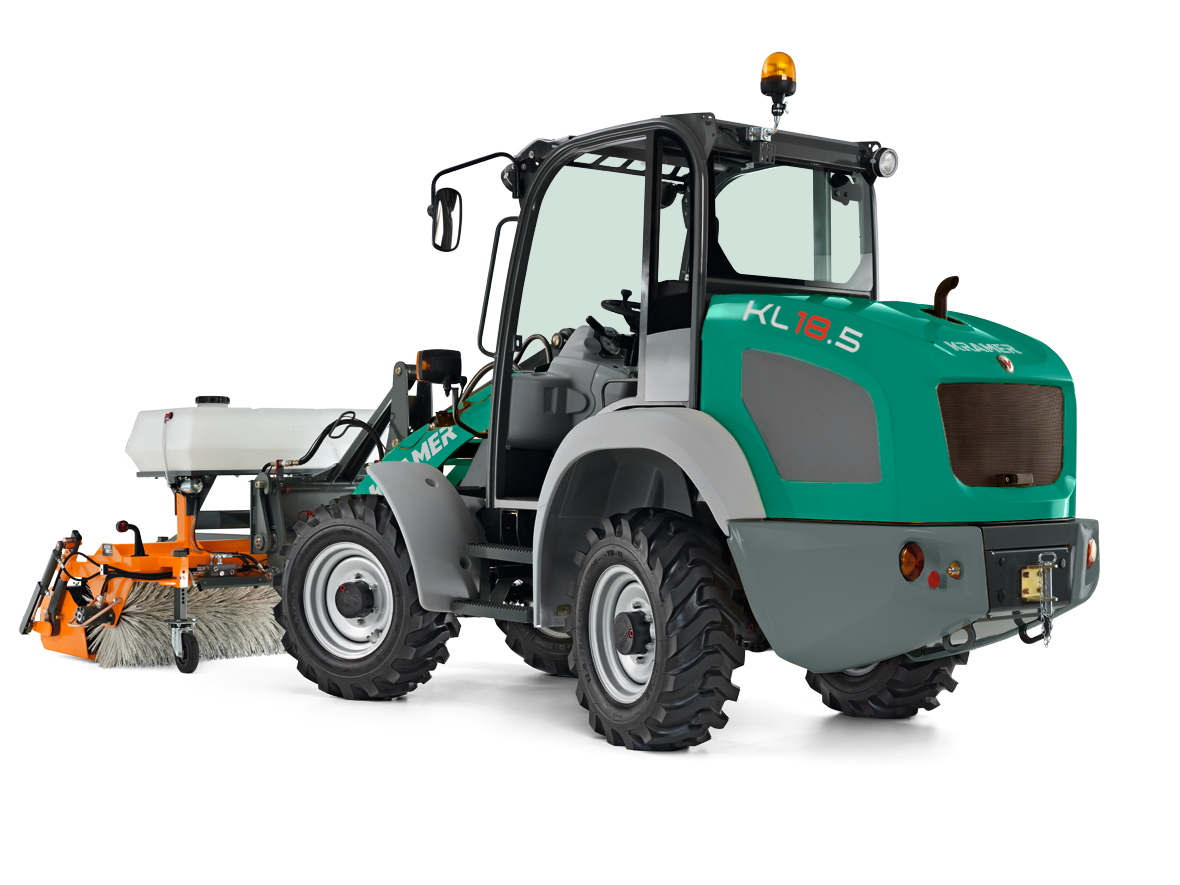

Kramer KL18.5
