560-80 AGRI Xtra JCB 560-80 AGRI Xtra Specifications & Technical Data (2021—2026)

Weight: 11.36t – Standard tyres: 500/70 R24 – Wheel base: 2.75m – Travel speed: 40km/h – Steering mode: A – Overcharging height: 6.64m

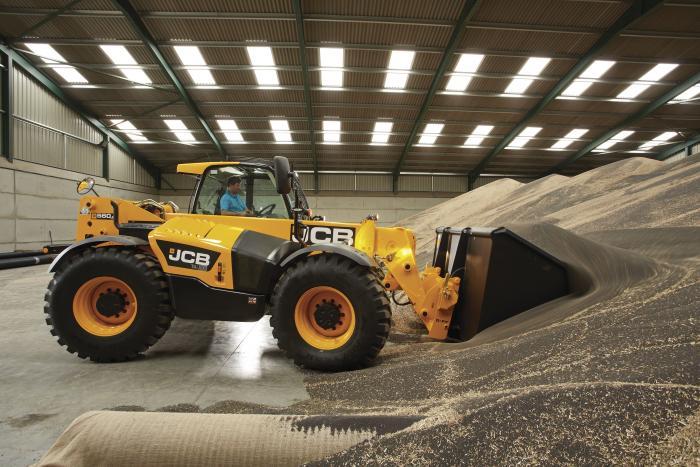

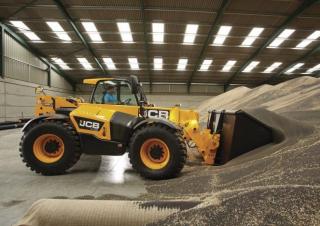

Yard loader JCB 560-80 AGRI Xtra

Visit JCB live at

Technical specs - 560-80 AGRI Xtra JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.36 t
Standard tyres
500/70 R24
Wheel base
2.75 m
Travel speed
40 km/h
Steering mode
A
Overcharging height
6.64 m
Turning radius outside
4.1 m
Transport length
5.42 m
Transport width
2.55 m
Transport height
2.63 m
Model series
560
Engine manuf.
JCB
Engine type
DieselMax 448
Engine power
112 kW
Displacement
4.8 l
Revolutions at max torque
2200 rpm
Max. torque
600/1500 Nm
No. of cylinders
4
Cylinder bore x stroke
106x135 mm
Emission level
V

More technical details, like: operating weight, tipping load, max. height at the shovel pivot point, max. discharge height, turning radius inside, dimension lxwxh are available in the full technical specs.

Special equipment

Cabin
Yes
telescopic
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

JCB 560-80 AGRI Xtra FAQ

When was the JCB 560-80 AGRI Xtra first produced?

The JCB 560-80 AGRI Xtra was first produced in 2021.

What is the weight of the JCB 560-80 AGRI Xtra?

The JCB 560-80 AGRI Xtra has a weight of 11.36 tonnes.

What are the transport dimensions of the JCB 560-80 AGRI Xtra yard loader?

The JCB 560-80 AGRI Xtra has a transport length of 5.42 meters, a transport width of 2.55 meters, and a transport height of 2.63 meters.

What is the travel speed of the JCB 560-80 AGRI Xtra?

The JCB 560-80 AGRI Xtra has a travel speed of 40 km/h.

What are the maneuverability specifications of the JCB 560-80 AGRI Xtra?

The JCB 560-80 AGRI Xtra features all-wheel steering and has an outside turning radius of 4.1 meters.

What are the tyre specifications for the JCB 560-80 AGRI Xtra?

The JCB 560-80 AGRI Xtra is equipped with standard tyres sized 500/70 R24.

What is the wheelbase of the JCB 560-80 AGRI Xtra?

The JCB 560-80 AGRI Xtra has a wheelbase of 2.75 meters.

What is the overcharging height of the JCB 560-80 AGRI Xtra yard loader?

The JCB 560-80 AGRI Xtra has an overcharging height of 6.64 meters.

How much is a JCB 560-80 AGRI Xtra Yard loader (2021u20132025) worth?

The residual value of the JCB 560-80 AGRI Xtra depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
