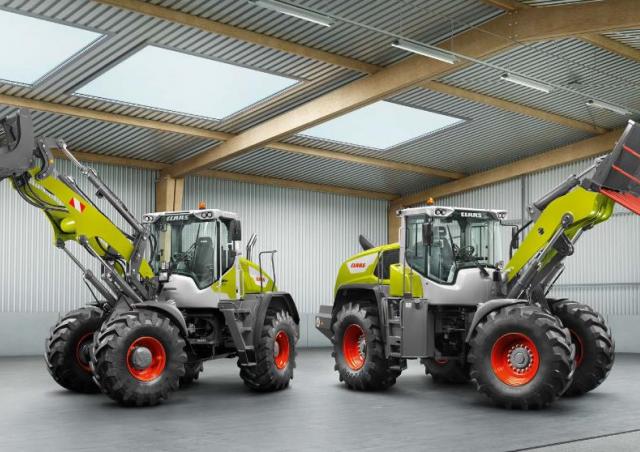

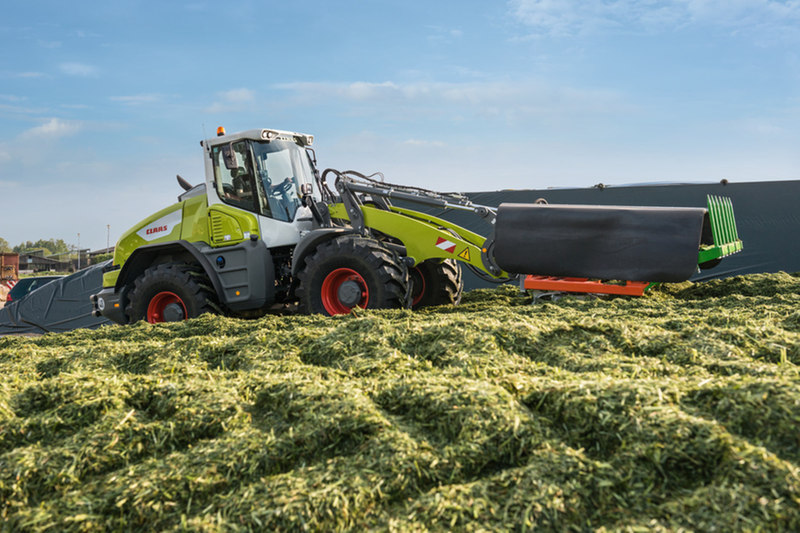

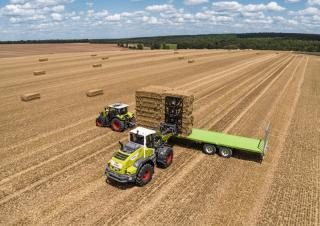

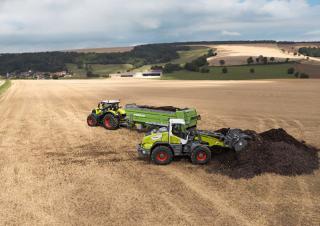

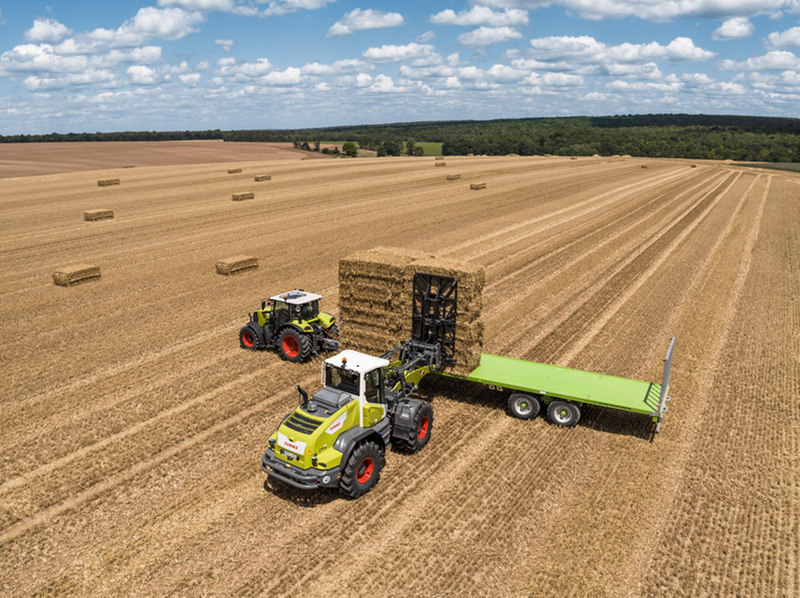

Torion 1410 Claas Torion 1410 Specifications & Technical Data (2020—2022)

Weight: 13.9t – Standard tyres: 20.5 R25 – Tipping load: 9100kg – Wheel base: 2.975m – Travel speed: 40km/h – Steering mode: KL

Torion 1410

Years of manufacture: 2020—2022

Data sheet
Valuate & Sell
Spare parts
Transport
News

Technical specs - Torion 1410 Claas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 13.9 t

Standard tyres: 20.5 R25

Tipping load: 9100 kg

Wheel base: 2.975 m

Travel speed: 40 km/h

Steering mode: KL

max. height at the shovel pivot point: 3.93 m

Max. discharge height: 3.93 m

Turning radius outside: 6.09 m

Transport length: 7.72 m

Transport width: 2.48 m

Transport height: 3.25 m

Engine manuf.: DPS

Engine type: 4045CB551

Engine power: 123 kW

Displacement: 4.5 l

Revolutions at max torque: 2400 rpm

Max. torque: 697/1400 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: operating weight, overcharging height, turning radius inside, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin: Yes
telescopic: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Claas Torion 1410 FAQ

When was the Claas Torion 1410 manufactured?

The Claas Torion 1410 was manufactured from 2020 to 2022.

What is the weight of the Claas Torion 1410?

The Claas Torion 1410 has a weight of 13.9 tonnes.

What are the physical dimensions of the Claas Torion 1410 yard loader?

The Claas Torion 1410 has a transport length of 7.72 meters, a transport width of 2.48 meters, and a transport height of 3.25 meters.

What is the travel speed of the Claas Torion 1410?

The Claas Torion 1410 has a travel speed of 40 km/h.

What are the maneuverability specifications of the Claas Torion 1410?

The Claas Torion 1410 features articulated-frame steering and has an outside turning radius of 6.09 meters.

What are the standard tyre specifications for the Claas Torion 1410?

The Claas Torion 1410 is equipped with standard tyres sized 20.5 R25.

What is the wheelbase of the Claas Torion 1410?

The Claas Torion 1410 has a wheelbase of 2.975 meters.

What is the mass capacity of the Claas Torion 1410?

The Claas Torion 1410 has a tipping load of 9100 kilograms.

What are the maximum discharge height and the maximum height at the shovel pivot point for the Claas Torion 1410?

The Claas Torion 1410 has a maximum discharge height of 3.93 meters and a maximum height at the shovel pivot point of 3.93 meters.

How much is a Claas Torion 1410 Yard loader (2020u20132022) worth?

The residual value of the Claas Torion 1410 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
