Torion 1410 Claas Torion 1410 Specifications & Technical Data (2017—2020)

Weight: 13.45t – Standard tyres: 20.5 R25 – Tipping load: 6700kg – Wheel base: 2.975m – Travel speed: 40km/h – Steering mode: KL

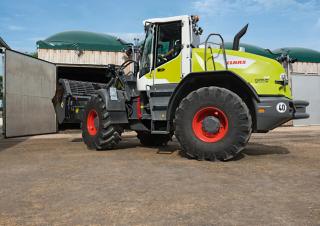

Yard loader Claas Torion 1410

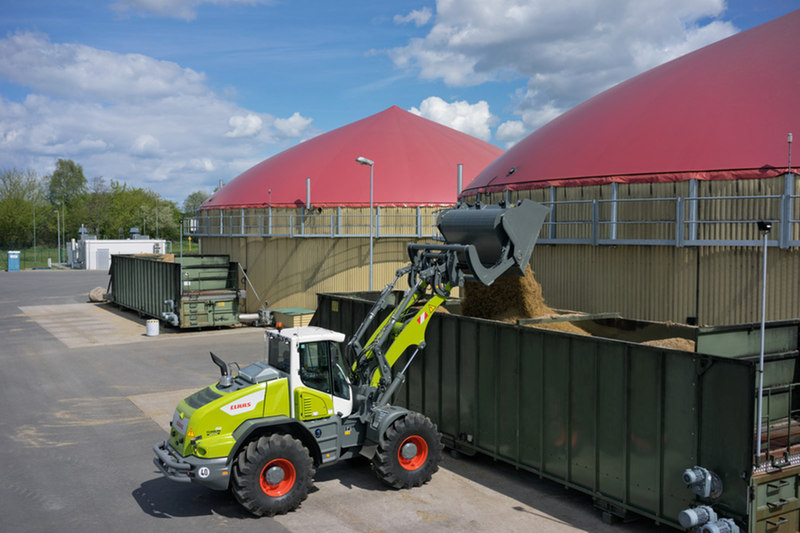

Yard loader Claas Torion 1410

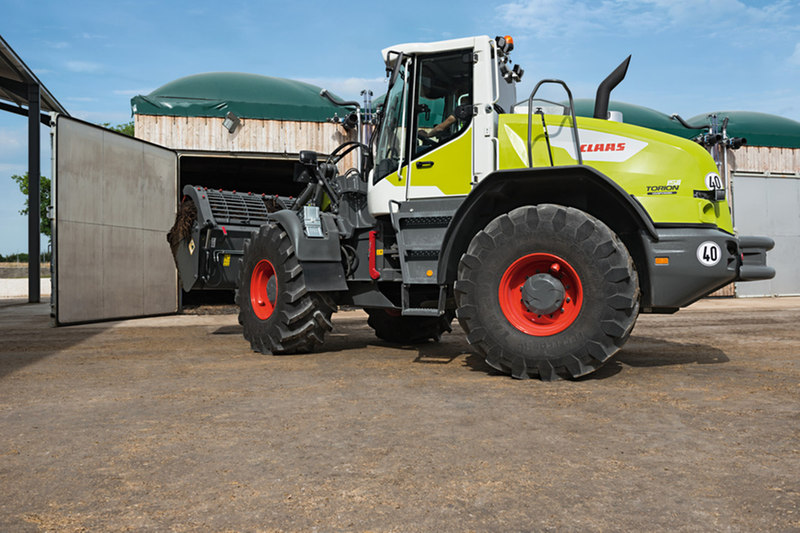

Yard loader Claas Torion 1410

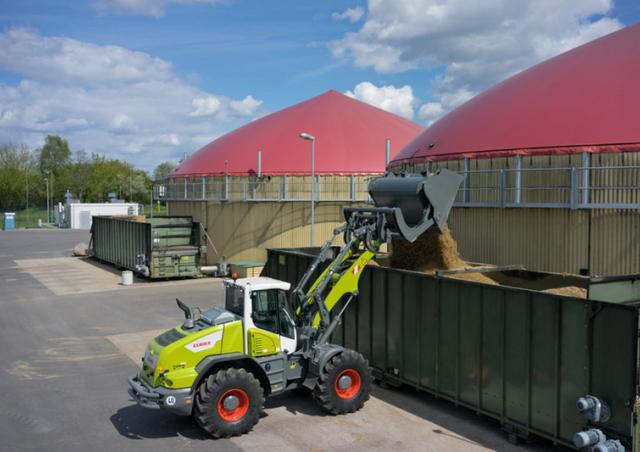

Yard loader Claas Torion 1410

Technical specs - Torion 1410 Claas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.45 t
Standard tyres
20.5 R25
Tipping load
6700 kg
Wheel base
2.975 m
Travel speed
40 km/h
Steering mode
KL
Max. discharge height
3.93 m
Turning radius outside
6.09 m
Transport length
6.53 m
Transport height
3.25 m
Engine manuf.
DPS
Engine type
k.A.
Engine power
114 kW
Displacement
4.5 l
Max. torque
682 Nm
No. of cylinders
4
Emission level
IV

More technical details, like: operating weight, max. height at the shovel pivot point, overcharging height, turning radius inside, transport width, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Special equipment

Cabin
No
telescopic
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Claas Torion 1410 FAQ

When was the Claas Torion 1410 manufactured?

The Claas Torion 1410 was manufactured from 2017 to 2020.

What is the weight of the Claas Torion 1410?

The Claas Torion 1410 has a weight of 13.45 tonnes.

What are the physical dimensions of the Claas Torion 1410 yard loader?

The Claas Torion 1410 has a transport length of 6.53 meters and a transport height of 3.25 meters.

What is the travel speed of the Claas Torion 1410?

The Claas Torion 1410 has a travel speed of 40 km/h.

What are the maneuverability specifications of the Claas Torion 1410?

The Claas Torion 1410 features articulated-frame steering and has an outside turning radius of 6.09 meters.

What are the wheel and tyre specifications of the Claas Torion 1410?

The Claas Torion 1410 is equipped with standard tyres sized 20.5 R25.

What is the wheelbase of the Claas Torion 1410?

The Claas Torion 1410 has a wheelbase of 2.975 meters.

What is the mass capacity of the Claas Torion 1410?

The Claas Torion 1410 has a tipping load capacity of 6700 kilograms.

What is the maximum discharge height of the Claas Torion 1410?

The Claas Torion 1410 has a maximum discharge height of 3.93 meters.

How much is a Claas Torion 1410 Yard loader (2017u20132020) worth?

The residual value of the Claas Torion 1410 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
