Primus 10/3500 Lemken Primus 10/3500 Specifications & Technical Data (2015—2023)

Working width: 30m – Linkage type: FS 30 – Transport length: 5.9m – Transport width: 2.9m – Transport height: 3.6m – Standard tyres: 300/95 R46

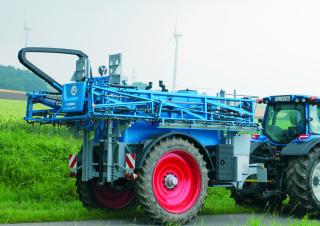

Trailed field sprayers Lemken Primus 10/3500

Primus 10/3500

Years of manufacture: 2015—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Primus 10/3500 Lemken

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Working width: 30 m

Linkage type: FS 30

Transport length: 5.9 m

Transport width: 2.9 m

Transport height: 3.6 m

Standard tyres: 300/95 R46

Weight excl. attachment: 2520 kg

No. of partial widths: 13

Pump capacity: 260 l/min

Barrel volume: 3200 l

More technical details, like: foldable linkage, boom folding, pump type, model series are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control: No

Download datasheets (PDF)

Lemken Primus 10/3500 FAQ

When was the Lemken Primus 10/3500 manufactured?

The Lemken Primus 10/3500 was manufactured from 2015 to 2023.

What is the weight of the Lemken Primus 10/3500?

The Lemken Primus 10/3500 has a weight excluding attachments of 2520 kilograms.

What are the transport dimensions of the Lemken Primus 10/3500?

The Lemken Primus 10/3500 has a transport length of 5.9 meters, a transport width of 2.9 meters, and a transport height of 3.6 meters.

What are the tyre specifications of the Lemken Primus 10/3500?

The Lemken Primus 10/3500 is equipped with standard tyres sized 300/95 R46.

What is the working width of the Lemken Primus 10/3500?

The Lemken Primus 10/3500 has a working width of 30 meters.

What is the volume capacity of the Lemken Primus 10/3500?

The Lemken Primus 10/3500 has a barrel volume capacity of 3200 liters.

What are the key spraying system components of the Lemken Primus 10/3500?

The Lemken Primus 10/3500 uses an FS 30 model linkage and has 13 partial widths.

What are the spraying and pump system specifications of the Lemken Primus 10/3500?

The Lemken Primus 10/3500 has a pump capacity of 260 liters per minute.

How much is a Lemken Primus 10/3500 Trailed field sprayer (2015u20132023) worth?

The residual value of the Lemken Primus 10/3500 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
