FG9145 CHD FG9145 Specifications & Technical Data (2020—2024)

Working width: 45m – Standard tyres: 13.6 R48 – Foldable linkage: 4-fach – boom folding: h – No. of partial widths: 13 – Pump type: Membrane

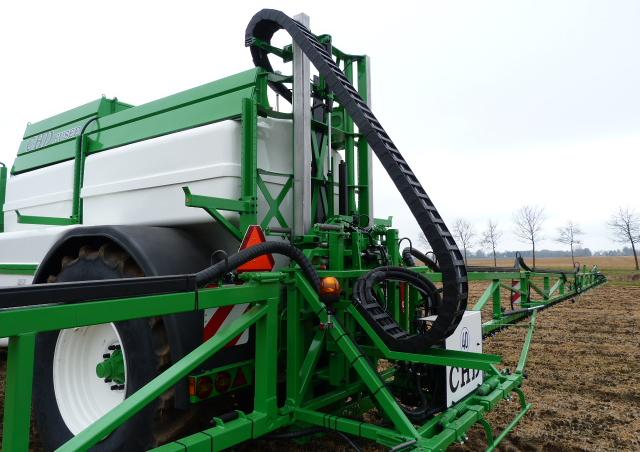

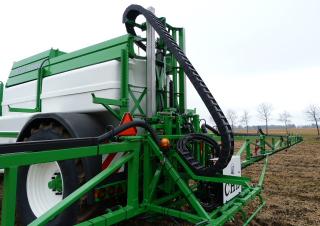

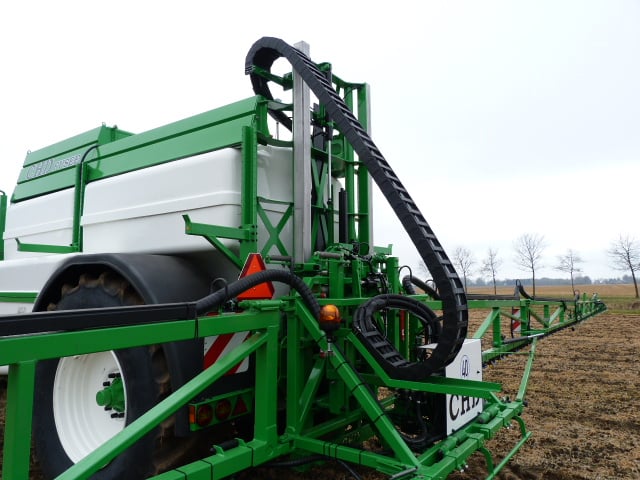

Trailed field sprayers CHD FG9145

Technical specs - FG9145 CHD

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Working width
45 m
Standard tyres
13.6 R48
Foldable linkage
4 -fach
boom folding
h
No. of partial widths
13
Pump type
Membrane
Pump capacity
560 l/min
Barrel volume
9000 l

More technical details, like: linkage type, transport length, transport width, transport height, weight excl. attachment, model series are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control
Yes

CHD FG9145 FAQ

When was the CHD FG9145 manufactured?

The CHD FG9145 was manufactured from 2020 to 2024.

What are the tyre specifications of the CHD FG9145 trailed field sprayer?

The CHD FG9145 is equipped with standard tyres sized 13.6 R48.

What is the working width of the CHD FG9145 trailed field sprayer?

The CHD FG9145 has a working width of 45 meters.

What is the volume capacity of the CHD FG9145 trailed field sprayer?

The CHD FG9145 has a barrel volume capacity of 9000 liters.

What are the spraying system components of the CHD FG9145?

The CHD FG9145 has 13 partial widths, a hydraulic boom folding system, and its boom folds into 4 sections.

What are the spraying and pump system specifications of the CHD FG9145?

The CHD FG9145 is equipped with a membrane type pump that has a capacity of 560 liters per minute.
