FG9142 CHD FG9142 Specifications & Technical Data (2020—2024)

Working width: 42m – Standard tyres: 13.6 R48 – Foldable linkage: 3-fach – boom folding: h – No. of partial widths: 13 – Pump type: Membrane

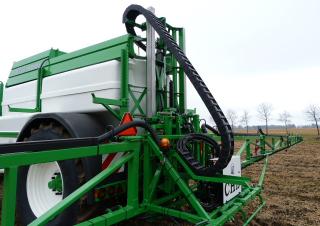

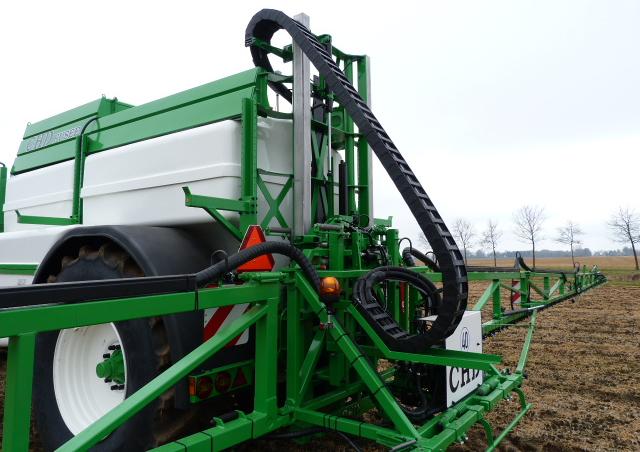

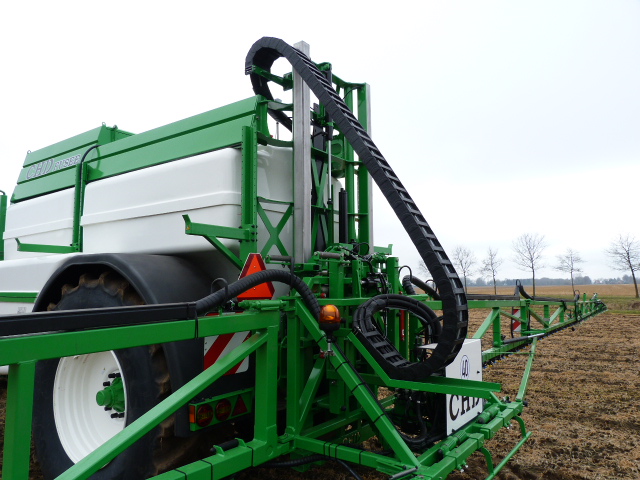

Trailed field sprayers CHD FG9142

Technical specs - FG9142 CHD

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Working width
42 m
Standard tyres
13.6 R48
Foldable linkage
3 -fach
boom folding
h
No. of partial widths
13
Pump type
Membrane
Pump capacity
560 l/min
Barrel volume
9000 l

More technical details, like: linkage type, transport length, transport width, transport height, weight excl. attachment, model series are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control
Yes

CHD FG9142 FAQ

When was the CHD FG9142 manufactured?

The CHD FG9142 was manufactured from 2020 until 2024.

What are the standard tyre specifications for the CHD FG9142?

The CHD FG9142 is equipped with standard tyres sized 13.6 R48.

What is the working width of the CHD FG9142 trailed field sprayer?

The CHD FG9142 trailed field sprayer has a working width of 42 meters.

What is the volume capacity of the CHD FG9142 trailed field sprayer?

The CHD FG9142 has a barrel volume capacity of 9000 liters.

What are the key spraying system components of the CHD FG9142?

The CHD FG9142 has 13 partial widths and a boom that folds hydraulically into 3 sections.

What are the spraying and pump system specifications of the CHD FG9142?

The CHD FG9142 is equipped with a membrane type pump that has a capacity of 560 liters per minute.
