UG 3000 Super (28) Amazone UG 3000 Super (28) Specifications & Technical Data (2013—2026)

ISOBUS offers many advantages

All AMAZONE ISOBUS sprayers are certified to UT 2.0 in accordance with the AEF conformity test. This means that these AMAZONE machines can be operated via any terminal which is available on the market that has also been certified according to UT 2.0. In addition, with an ISOBUS compatible SectionControl licence, AMAZONE ISOBUS sprayers can be switched via a third-party ISOBUS terminal. AMAZONE’s AMATRON 3, CCI 100 and AMAPAD terminals and all AMAZONE ISOBUS machines support the AUX AEF functionality. This means, that, for instance, the keys of an existing AUX-N compatible multi-function joystick can be reprogrammed to suit an individual’s needs. So, any function is there, exactly where the operator wants it to be.

ISOBUS terminals

ISOBUS is the name for a communication standard, valid world-wide, between operator terminals, tractors and implements on the one hand and agricultural office software on the other hand. That means with one terminal you can control all ISOBUS compatible implements.

Special characteristics of AMAZONE ISOBUS sprayers

Up to three user profiles and individual interfaces for different drivers can be created. The operation menu can be optimally matched to the differing numbers of keys on other ISOBUS terminals. Any machine function can be freely positioned in the menu set-up. Complete documentation via TaskController (ISO-XML). As an alternative to documentation via TaskController, the simple recording of field data (worked area, required time and applied rate) is possible. The recorded data can then be captured as a screen shot and then exported via a USB stick.

2-terminal solution

A twin-terminal solution with the simultaneous use of a tractor ISOBUS terminal and AMATRON 3 or CCI 100 is recommended if the tractor terminal does not support the Section Control function or if you intend to use the sprayer via AMATRON 3 or CCI 100 and a separate screen.

Amatron 3

AMATRON 3 is fully downwardly compatible to AMATRON+ and upwardly compatible to the ISOBUS standard and forms a bridge between the non-ISOBUS and ISOBUS world. AMATRON 3 enables the user to safely and comfortably operate both AMAZONE implements with AMATRON+ (AMABUS) and implements that meet the ISOBUS standard. Needless to say, even if these are not from AMAZONE.

Accurate metering and simple operation

The AMATRON 3 operator terminal allows the fully automatic regulation of the pre-set application rate (l/ha). Rate changes are possible in pre-selected % steps. Due to its clear, simple and logical handling and its illuminated keys, this terminal is especially operator-friendly. For monitoring the system a high contrast and low reflection display has been installed. The very compact shape of the terminal requires little space in the tractor cab. By using two flow meters, the application rate is extremely precisely maintained, particularly at low spray rates.

Even more precision with GPS-Switch, GPS-Track and GPS-Maps

Available as optional equipment: GPS-Switch automated headland and part-width section control, GPS-Track parallel guidance and GPS-Maps part-area site specific application map function.

GPS-Switch for AMATRON 3

This GPS assisted operator terminal system automates the exact control of the machine on the headlands, around the field border and when spraying in wedges. The working width and the arrangement of the part-width sections are taken into account. The automatic GPS-Switch part-width section control offers precision, comfort and safety: simply select the desired degree of overlap and leave the GPS-Switch in automatic mode. So, even in difficult circumstances, such as wider working widths, limited visibility at dawn or dusk, or in high crops, the job can be mastered. In addition: you save up to 5 % on crop protection agents, whilst at the same time safeguarding the environment and can fully focus on monitoring the sprayer.

GPS-Maps for AMATRON 3

The additional module GPS-Maps enables GPS-based processing of application maps in a Shape file format. Both in AMABUS, and also in ISOBUS mode. The direct application rate can be used or the amount of spray agent. With AMATRON 3, the spray rates can still be adapted. Task Controller is available as standard and enables the processing of application maps in ISO-MXL format, both in AMABUS and also in ISOBUS mode, even without GPS Maps.

Future proof technology

The serial interface (RS232), that enables use to be made of sensor technology (e.g. Yara N-Sensor) or different GPS terminals, is integrated, as standard, into the comprehensive equipment level provided by AMATRON 3 and AMASPRAY+. So, depending on the target and the terminal, several possibilities are offered, both for part-area site specific application from a map or using a sensor. You, as the operator, can decide for yourself on the right system for your conditions and application.

Documentation with ASD

Starting from field records, the automatic plot related documentation (ASD) offers the possibility to exchange, via a blue tooth interface, application plans and actual spray programmes with the AMASPRAY+ and AMATRON 3 operator terminals. Documentation becomes more precise and simpler. Many hand-written steps are no longer required. ASD now enables documentation in conjunction with many major field record database providers in Europe. The ASD interface is available as an open standard for all device and software providers. With ASD, AMAZONE offers a practical, value for money documentation system for all types of farming.

The benefits

The CCI ISOBUS terminal from AMAZONE is the result of the cooperation with several other manufacturers of agricultural machinery who are joint participants in the Competence Center ISOBUS eV (CCI). With CCI, AMAZONE and its partners have laid the foundation to introduce ISOBUS into practice. The CCI is the basis to convert all AMAZONE machinery and implements successively to the ISOBUS standard.

Display features

The bright 8.4” colour display with its high screen resolution and ambient light sensor matches the brightness automatically to the light conditions. This avoids the driver in twilight or at night being blinded by too bright a display. Easy input via the operator-friendly touchscreen display, or via the softkeys. Fatigue-free operation at night is assisted by the back-lighting of the keys which are also connected with the light sensor. The proven AMAZONE one-handed operation is still possible because the function of the „soft keys” can be simply mirrored. For intuitive menu guidance and the convenient input of values and text, the terminal is provided with a high-quality touch screen. For the direct quick input and adjustment of the input values, a scroll wheel with actuating function is ergonomically integrated in the housing.

The new dimension in control and monitoring

With the AMAPAD operator terminal, AMAZONE offers an entirely new and high-class solution for GPS application such as automated GPS based part-width section control and Precision Farming applications. AMAPAD features an especially ergonomic, 12.1” touch screen. With the unique „Mini-View“ concept, applications that do not need to be actuated but which, however, need to be monitored, are clearly shown at the side. If needs be, these can be enlarged by „finger tip” widening. The possibility also exists to customise the display, a feature which rounds off the exceptional layout of this operator terminal. In addition to GPS-Switch pro part-width section control, a high-quality professional manual light bar guidance system is also installed as standard. GPS-Track can also be upgraded to an automated steering system.

Camera system to the rear of the UG trailed sprayer

The optionally available camera system mainly serves for safety when manoeuvring. This is ensured even in rain, twilight or in darkness via infrared LEDs and a heated lens. The high resolution, antiglare monitor is backlit and can also display two cameras at once. As an alternative, pictures from the camera can also be displayed on the CCI ISOBUS terminal via the CCI Cam camera function.

Robust, reliable technology

The wide, profile steel frame, compact tank and the robust boom technology all contribute to the required reliability. All the edges are rounded off and all hoses are neatly routed inside the frame.

Hydraulic agitation intensity

The intensity of the hydraulic agitation can, steplessly, be reduced down to nothing in order to avoid any foaming of the crop protection agent or to facilitate spraying out the remaining tank contents. On AMAZONE sprayers, the flushing stream from the self-cleaning pressure filter is used for agitating (1). The pump equipment of the UG Super is suitable for high agitation outputs at low PTO shaft speeds (2).

Fill capacity 400 l/min

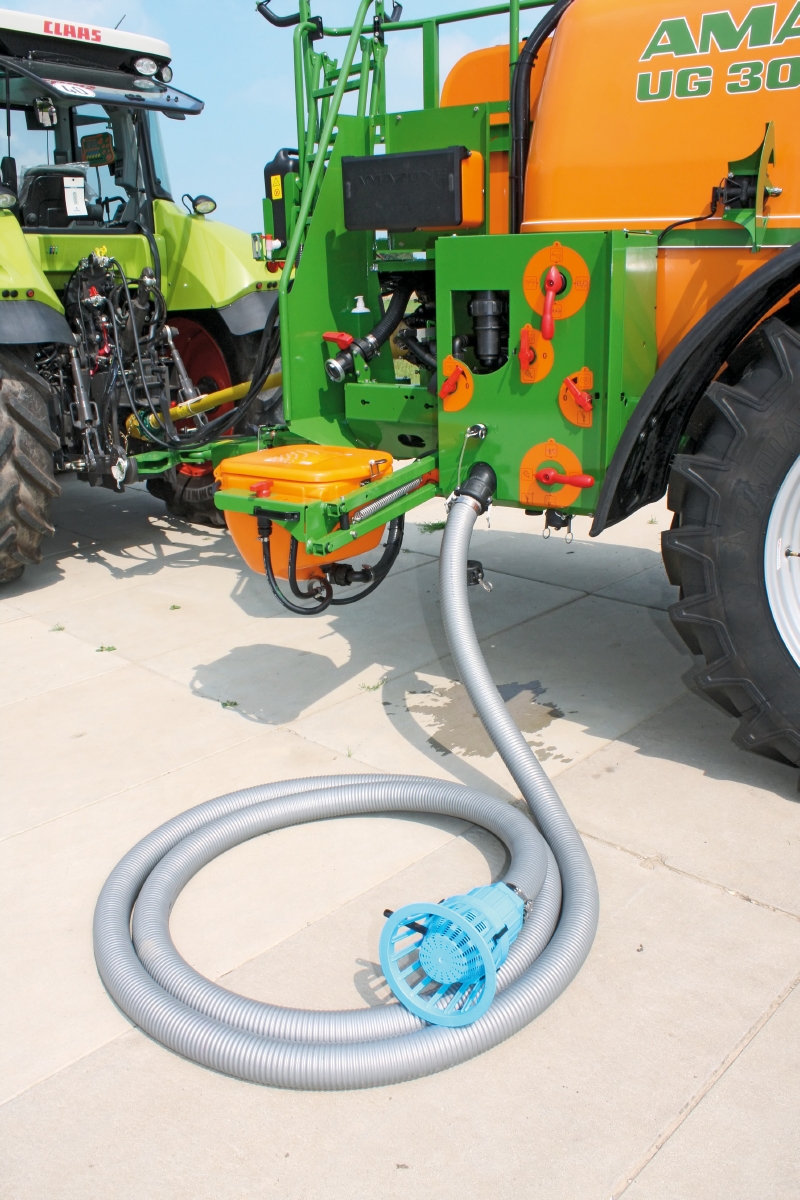

The sprayer can be filled with the help of a suction hose (3") with non-return valve or fill connection with C-coupling. Utilising the additional injector that can be activated, means filling rates of up to 400 l/minute can be achieved.

Fresh water tank with Vario control for flushing and diluting

The large fresh water tank always carries sufficient clean water for flushing and for diluting residual quantities. If the Vario control is set to the “flush” position, the suction filter, pump, valve chest, boom spray line and nozzles are cleaned with fresh water. This is also possible when the spray liquid tank is full. This rules out the possibility of malfunctions caused by dried on spray liquid.

Flushing in with the induction bowl and power injector

The induction bowl is able to quickly and reliably dissolve powdered agents and large quantities of urea through the incorporated rinse ring and, at the same time, to quickly flush them in with the power injector. A rotary nozzle ensures that the spraying agent canisters are easily and conveniently cleaned to make full use of the contents. The closed induction bowl can be flushed for self-cleaning. The fill level indicator is always in view.

Internal and external cleaning

Two powerful rotating nozzles clean the internal walls of the tank. As an option, the boom can be cleaned in the field with the external wash down kit, where, the spray lance with 10 bar working pressure ensures a good cleaning result.

Control of the spray liquid system

The AMAZONE Comfort-Pack controls the most important functions of the liquid system. The intensity of the hydraulic agitator is, depending on the fill level, reduced until completely shut off to prevent foaming of the crop protection agent or to minimise the residual spray volumes. On AMAZONE crop protection sprayers the un-sprayed plant protection agent is delivered back via the return flow into the suction system. In this way, any unintended dilution of the spray agent is prevented. 370 l/min agitation capacity is available to achieve a perfect result even with difficult tank mixes and high concentrations. The 2 interior cleaning nozzles provide an optimum cleaning performance in the tank. The Comfort-Pack automatically ensures that the agitation will be rinsed. Minute final residual volumes of less than 6 litres and the large fresh water contents ensure a very effective cleaning procedure whilst still in the field.

The DUS pressure recirculation system – proven more than 10,000 times

The AMAZONE DUS pressure recirculation system guarantees the safe circulation within the entire system. When starting the spraying operation all the hoses including the spray lines are filled under pressure in the reverse direction with the mixed spray agent. This means the spray lines are always full and immediately ready to use over the entire working width. There is no waiting on the headland. Every time individual part-width sections are shut off, during the turning operation and during transport, the spray liquid circulates continually thanks to the pressure recirculation system. This reliably prevents deposits, blockages or segregation in the spray lines. The concentration of the spray agent always remains constant right up to the nozzles, so the start of spraying is carried out without any problems after, for example, a change of ingredients. During the cleaning operation, fresh water flushes the spray lines out right up to the nozzles without any spraying being necessary. During this cleaning procedure the concentrated spray liquid is returned back to tank via the pressure recirculation system leaving the spray lines clean.

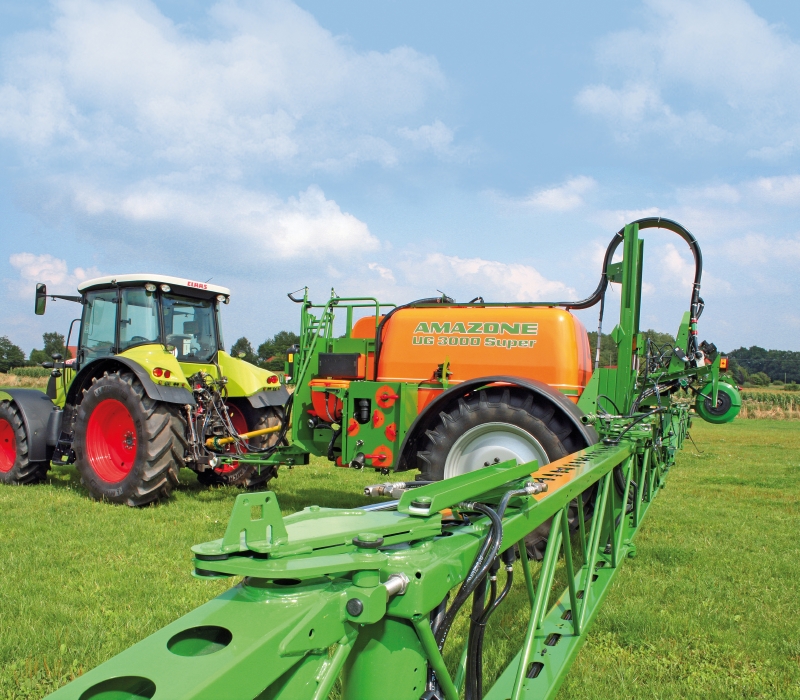

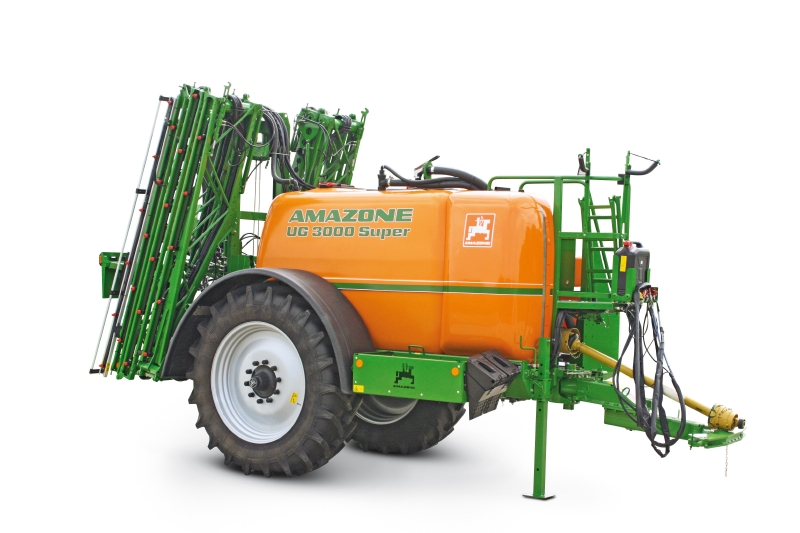

UG Trailed Sprayer

The 2,200 and 3,000 litre UG trailed sprayer is characterised by its robust and operator-friendly design. With its Super-S2 boom or, from choice, the Super-L1 boom in working widths of 15 to 28 m, it is an especially efficient machine.

AutoTrail Steering Systems

AutoTrail steering systems are software-controlled and can be calibrated precisely to give near-perfect track following. In work, the steering system can either be manually overridden or switched off via the AmaPilot multi-function joystick.

Operator Station

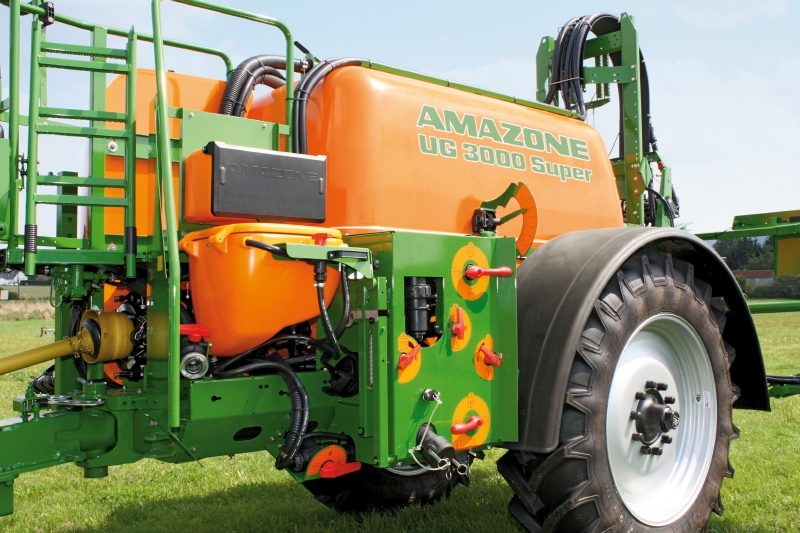

Clearly laid out operator station: All control elements are logically and unmistakably arranged directly to the front left-hand side of the sprayer. All the working functions can be quickly and intuitively understood, thus preventing any operator errors.

AMASPRAY+ – Simple and Versatile

AMASPRAY+ enables the simple yet fully automatic regulation of the UG. Switches, integrated into the operator terminal, make possible the isolation of 5, 7 or 9 boom part-width sections. AMASPRAY+ has digital pressure indication and digital tank level indication. It registers both the quantity sprayed and the area worked. The actuation of the hydraulic functions, however, is carried out via the tractor control valves. AMASPRAY+ also visually indicates boom tilt and locking. As an option, AMASPRAY+ enables one-sided folding of the boom or alternatively the access to the boundary and end nozzle spraying systems. The AMASPRAY+ operator terminal with serial interface can also be used for the automatic documentation (ASD) and part area site-specific application.

Electrically-Controlled TG Valve Chest

For actuation using either ISOBUS or AMASPRAY+, modern valve chest technology is utilised. The part-width boom sections are switched on and off quickly and drip-free via electric motor valves with pressure relief. In all situations, the spray rate is exactly and quickly controlled directly via the computer, negating the need for any mechanical equal pressure control.

Boom Control and Steering

The ProfiClick switchbox offers the simple and precise actuation of all hydraulic functions of the booms and steering with AMAZONE crop protection implements. It is available in combination with the electro-hydraulic pack “Profi-fold 1” for the entire crop protection sprayer product range from AMAZONE. All the operational functions of the ProfiClick switchbox are ergonomically arranged and directly linked with a function. The potentiometer for the re-adjustment of boom tilt or for the automatic steering of a trailed sprayer can be controlled on the move without looking, thanks to the centre position via a detent function. This allows the driver to concentrate perfectly on driving. The ProfiClick switchbox for actuating the hydraulic functions of an AMAZONE sprayer can be combined with AMASPRAY+, AMATRON 3, or with any other ISOBUS terminal. Thus, it offers a favourable and comfortable control of the hydraulic functions via an oil circuit. On the tractor, only one single acting spool valve with a pressure-free return flow is required. ProfiClick is available for UF, UG, and UX without steering and the UG with drawbar steering or for a UX with axle steering.

AmaPilot Multi-Function Joystick

Actuating the boom and control chest functions is particularly comfortable via the AmaPilot multi-function joystick. All the functions in the operation menu can also be actuated via the AmaPilot multi-function joystick or other ISOBUS joysticks (AUX-N).

AMACLICK with AMATRON 3

Special crops and bed work often require the on/off switching of the individual part-width sections in the middle of the boom. AMACLICK is an additional ergonomic control unit that can be used either in conjunction with the AmaPilot multi-function joystick or as a standalone system alongside an ISOBUS terminal.

Transport Width

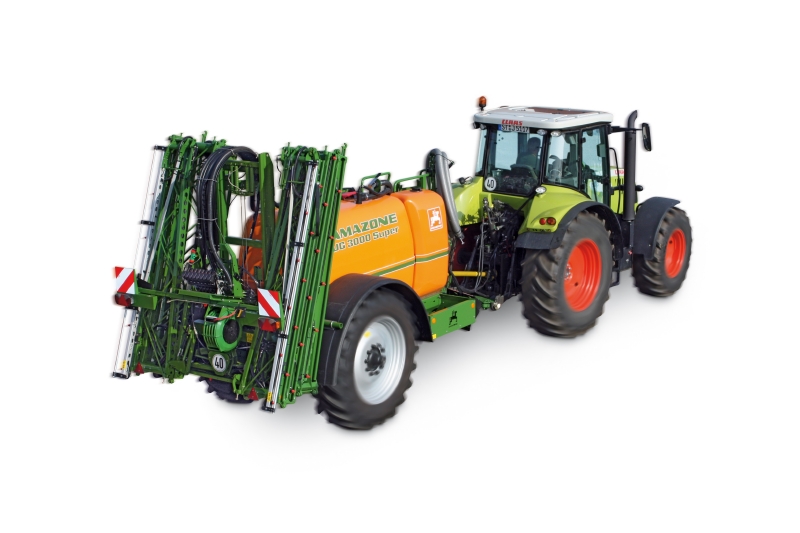

The Super-S2 boom folds fully automatically in and out via hydraulic rams. In the transport position, the boom sits compactly behind the tank with a transport width of only 2.40 m and a transport height of 3.30 m. With steel profiles up to 140 mm wide with multiple bends, the Super-S2 boom is extremely strong.

Shock Damping Suspension

As standard, all AMAZONE booms are equipped with springs and shock absorber pack for damping the vertical roll movements, rubber buffer damping elements with ball suspension to damp down the horizontal yaw movements, and tension springs for the shock absorbed suspension of the entire boom. Also standard is hydraulic height adjustment with guide skids that results in perfect boom guidance and thus, the accurate longitudinal and lateral distribution of the spray agent.

Super-L1 Boom for the UG

AMAZONE offers a side folding Super-L1 boom for the UG trailed sprayers. The boom is available in boom widths from 21 up to 28 metres. This means now a choice of the vertical-folding Super-S2 boom or the side-folding Super-L. The product portfolio includes a three-section folding boom option in widths of 21 m, 24 m, 27 m, and 28 m.

Pre-Select Folding

One-sided boom folding is possible through either an AMASPRAY+ or ISOBUS terminal using the tractor spool valves. The high level of flexibility offered by the pre-select folding function enables all part width sections to be folded individually. Both the left and right-hand sides can be folded in separately and independently of each other to adapt to any circumstances in your fields.

Profi-Fold

Profi-fold is the electro-hydraulic actuation of the boom by means of a continual oil circuit. In this way, the functions of height control, folding out/in, one-sided independent folding, and tilt adjustment (Profi 1) are easily controlled via the ISOBUS terminal or the multi-function joystick. Additional boom tip angling is possible via Profi-fold 2.

DistanceControl with Sensors

By combining each boom option with either Profi-fold 1 (Super-S2 and Super-L1) or Profi-fold 2 (Super-S2), the fully automatic boom guidance system DistanceControl with 2 or DistanceControl plus with 4 sensors can be added. In heavily differing crop heights, or in areas with partially lodged corn, it could be that the boom, when equipped with 2 sensors, dips into the crop. In this case, equipping the boom with four sensors will prevent this. The sensors are electrically connected in parallel, and so it is always the sensor that is closest to the target surface that is actuated.

AutoTrail drawbar steering

AutoTrail drawbar steering is available for both the straight drawbar and the hitch drawbar. A variety of towing eyes offer a solution to all tractor drawbar options. As an alternative to the automatic slope correction adjustment with AutoTrail, there is on this drawbar also a manual hydraulic drawbar steering system for slope correction.

SelfTrail and UniTrail steering systems

SelfTrail and UniTrail steering systems react directly to the steering action of the tractor. The following sprayer axle oversteers by a little when coming into the turn. The tracking qualities are completely independent from forward speed.

Piston diaphragm pumps

The piston diaphragm pumps are particularly reliable, protected when run dry and are safe for liquid fertiliser. The multiple-cylinder design of the pumps simultaneously ensures even delivery with a high suction power and smooth operation. The pumps are available with delivery capacities of 250 l/min (Special) or 370 l/min (Super). The 370 l/min pump setup is a tandem pump, where the spraying pump works together with a separate agitation pump. The tandem pump is ideal for farms with high application rates.

Maintenance-free and with a long service life

The decades of experience in boom design pay off: The conical hinge pin is the intelligent centre of a well thought-out boom philosophy. The boom pivots self-adjust against any play on the conical hinge pins and that ensures, for the end user, an optimised boom function even after many years. Use of stainless steel, the catalytic painting process, with its automobile industry protection standards, as well as the targeted use of plastics and aluminium is the guarantee for high longevity. Exclusively from AMAZONE: all hydraulic connectors are always made from stainless steel!

Liquid fertilising – Safe and user friendly

For coarse droplet distribution of liquid fertiliser, AMAZONE offers a variety of special nozzles. In conjunction with the Super-S2 boom, separate drag hose equipment for risk-free late top fertilising is available. The self-contained aluminium profiles can be attached with a few hand clamps. Drag hoses offer a risk-free late top dressing with liquid fertiliser and stainless steel weights help keep the position of the drag hoses within the crop.

Simultaneously superbly strong yet superbly light

Due to the special profile design AMAZONE sprayer booms are very light yet at the same time very robust. Working widths of 15 to 28 metres allow optimum adaptation to the field sizes and topography on the farm with various folding options. High-grade quality ensures a long operational life even over very high acreages.

Less drift also at higher wind speeds

With the air-assisted injector nozzles, crop protection agents can be applied with very little drift. They are universally usable in all crops and all classifications. Because of the coarse droplet application, these nozzles can also be used in higher wind speeds. AMAZONE offers the agricultural sector a wide range of nozzles from Agrotop, Lechler and Teejet.

Single and multi-nozzle bodies

The nozzle bodies with integrated diaphragm non-return anti-drip valves fit up into the boom profiles reliably preventing any dripping at the nozzle. Self-adjusting bayonet fixings ensure a tool-less quick nozzle change. The triple nozzle bodies are suited to frequent nozzle changes due to different applications and crops. Nozzle protection tubes, as standard on the outer sections, or, if desired, over the entire boom working width, ensures protection for long injector nozzles and multiple nozzle bodies.

Injector nozzles

Injector nozzles (ID, TTI) have a relatively coarse droplet spectrum and are particularly versatile with regard to their field of application. A pressure range of 2 to 8 bar is possible. If coverage quality is at the foreground of the application, the use of standard or anti-drift fine droplet nozzles, such as XR or AD, is recommended. Special care is required here due to the tendency to drift above 3 bar. A good compromise is provided by the modern ID-K or Airmix compact injector nozzles. These have relatively little drift, but do not have too coarse a droplet spectrum and are operated at 2 to 4 bar. When it comes to special coverage qualities, the double flat fan nozzle is an interesting alternative: the AVI Twin from Agrotop also produces droplets that are not too fine.

Electric boundary nozzle switching

In order to extend the normal working width, an asymmetrical nozzle can also be switched on. This is particularly useful if the distances between tramlines are not precise enough. If a one metre buffer zone around the edge of the field needs to remain unsprayed due to distance constraints, end nozzle switching can be used. For precision border spraying between two sensitive crops, the boundary nozzles can be used to make sure the spray pattern is accurately defined.

LED boom lighting for Super-S2 booms

For flexible and efficient operation at twilight and in the dark, LED boom lighting is available. Two far-reaching LED work lights, mounted in the middle of the boom, ensure excellent visibility of all the nozzles at a glance.

LED individual nozzle lighting for Super-L1 and Super-S2 booms

Professional work lighting is today the basis of a flexible, output-increasing solution to operating in twilight and at night. Illumination of the spray fans ensures complete control of the nozzle function at just one glance. LED individual nozzle lighting picks out each individual spray fan. An absolutely immediate assessment of their operation down to the very last nozzle on the boom can be made.
