75E Challenger 75E Specifications & Technical Data (1998—2001)

Engine power: 253.5kW – Model series: 70E – Track width: 630mm – Transmission: 10/2 – Transmission type: LS – Weight: 15.785t

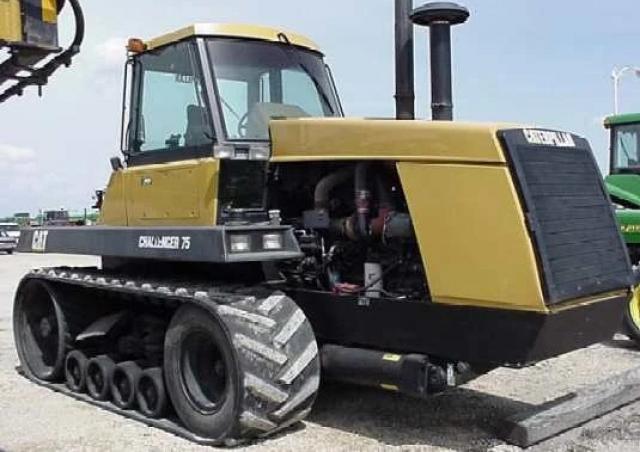

Track tractors Challenger 75E

Technical specs - 75E Challenger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
253.5 kW
Model series
70E
Track width
630 mm
Transmission
10/2
Transmission type
LS
Weight
15.785 t
Engine manuf.
Caterpillar
Engine type
N/a
Displacement
10.3 l
No. of cylinders
6
Cylinder bore x stroke
125x140 mm

More technical details, like: length of travelling mechanism, transport length, transport width, transport height, travel speed, control unit, three point category, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Challenger 75E FAQ

When was the Challenger 75E manufactured and what is its model series?

The Challenger 75E was manufactured from 1998 to 2001 and belongs to the 70E model series.

What is the weight of the Challenger 75E track tractor?

The Challenger 75E track tractor weighs 15.785 tonnes.

What is the engine power of the Challenger 75E?

The Challenger 75E has an engine power of 253.5 kW.

What type of transmission does the Challenger 75E have?

The Challenger 75E is equipped with a Powershift transmission.

What is the track width of the Challenger 75E?

The Challenger 75E has a track width of 630 millimeters.

How much is a Challenger 75E Track tractor (1998u20132001) worth?

The residual value of the Challenger 75E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
