Precision Disk 550T 40 Case IH Precision Disk 550T 40 Specifications & Technical Data (2023—2026)

Transport length: 9.09m – Transport width: 5.69m – Transport height: 4.23m – Distance between rows: 254mm – Tank capacity: 4933l – Required power: 194kW

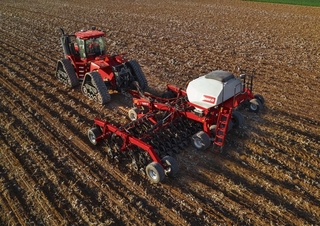

Sowing machines Case IH Precision Disk 550T 40

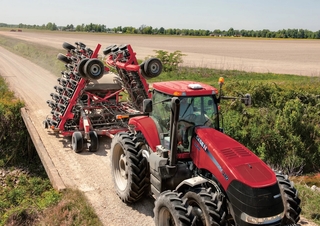

Sowing machines Case IH Precision Disk 550T 40

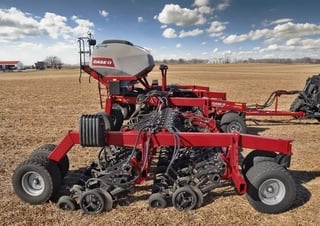

Sowing machines Case IH Precision Disk 550T 40
Sowing machines Case IH Precision Disk 550T 40
Sowing machines Case IH Precision Disk 550T 40
Sowing machines Case IH Precision Disk 550T 40

Technical specs - Precision Disk 550T 40 Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Transport length
9.09 m
Transport width
5.69 m
Transport height
4.23 m
Distance between rows
254 mm
Tank capacity
4933 l
Required power
194 kW
Weight
12860 kg

More technical details, like: working width, Ø pressure roller, no. of plowshares, type of plowshares, no. of pressure rollers, attachment are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Revolutions control
No
Pack Ring Roller
No
Drill manager
No
Row marker
No

Download datasheets (PDF)

Case IH Precision Disk 550T 40 FAQ

When did production of the Case IH Precision Disk 550T 40 start?

The Case IH Precision Disk 550T 40 was first produced in 2023.

What is the weight of the Case IH Precision Disk 550T 40 sowing machine?

The Case IH Precision Disk 550T 40 sowing machine weighs 12,860 kilograms.

What are the transport dimensions of the Case IH Precision Disk 550T 40?

The Case IH Precision Disk 550T 40 has a transport length of 9.09 meters, a transport width of 5.69 meters, and a transport height of 4.23 meters.

What is the required power for the Case IH Precision Disk 550T 40?

The Case IH Precision Disk 550T 40 requires a power of 194 kW.

What is the tank capacity of the Case IH Precision Disk 550T 40?

The Case IH Precision Disk 550T 40 has a tank capacity of 4933 liters.

What is the row configuration of the Case IH Precision Disk 550T 40?

The Case IH Precision Disk 550T 40 has a row spacing of 254 millimeters.

How much is a Case IH Precision Disk 550T 40 Sowing machine (2023u20132025) worth?

The residual value of the Case IH Precision Disk 550T 40 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
