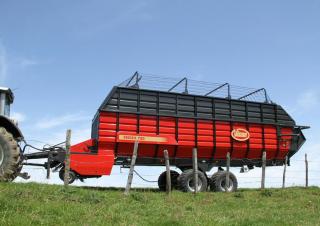

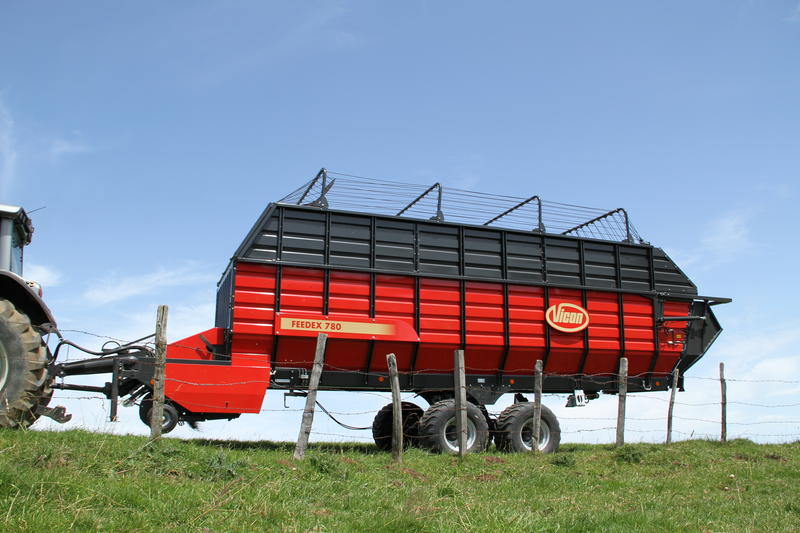

Feedex 780 Vicon Feedex 780 Specifications & Technical Data (2013—2020)

Suitable for all situations

With its low center of gravity and its low empty weight, the Feedex also has a large clearance under chassis allowing access even in steep places.

IsoMatch Tellus GO - Compact ISOBUS terminal

IsoMatch Tellus GO is a complete ISOBUS terminal that can control all ISOBUS machines with ease. Its compact design makes it easy to integrate it into the tractor cab, while offering a comfortable 7-inch touchscreen for perfect machine configuration and control. The sturdy keys and the right-hand rotary knob give direct access to the main functions, for optimal use while driving. Controlling your equipment has never been easier.

IsoMatch Tellus PRO

IsoMatch Tellus PRO is the first ISOBUS universal terminal to view and control two different ISOBUS interfaces at the same time. You can control the wagon via the top screen interface and check the excellent filling on the camera screen below. The full touch screen is intuitive and offers large icons for a simplified configuration of the machine and optimum comfort, a valuable asset for your long days of work.

IsoMatch Grip

This ISOBUS auxiliary device is made for comfortable machine control and efficient farming. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired.

IsoMatch (Multi)Eye

Connect up to 4 cameras to the IsoMatch Universal Terminals. It gives you full control and overview of the machine operation from every side you want.

Feedex Trailers

With their C-profile bars to support frames and uprights, the all-steel crates of Feedex trailers are designed for the most demanding jobs. Additional crossbars prevent twisting even during maximum trailer load. High quality steels and durable powder coating ensure long-term quality even with little maintenance.

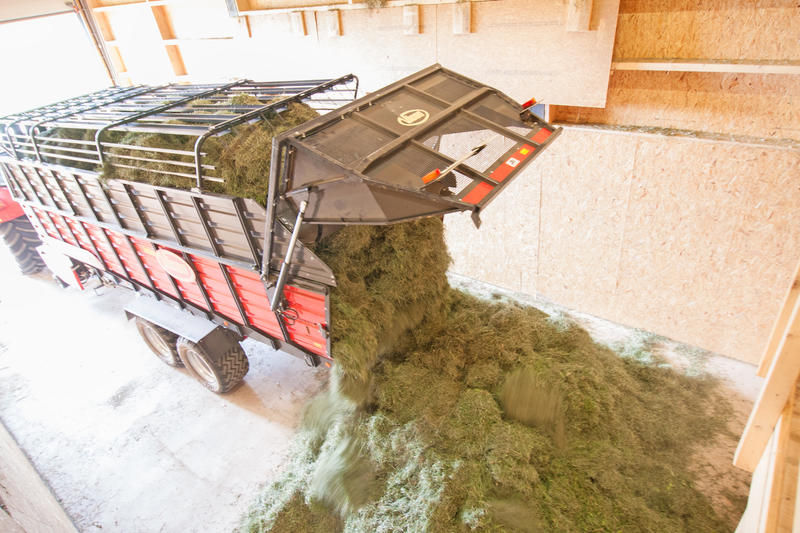

Hydraulic tailboard

The hydraulic tailgate offers swift emptying and convenient operation from the tractor. Once the material is unloaded, gate closing is sensor controlled.

Comfort tailboard

Two hydraulic arms open and close the sensor controlled tailgate. The standard filling level indicator ensures the machine is filled to its maximum capacity.

More ground clearance

Thanks to the hydraulic drawbar, the ground clearance can reach 600mm under the pick-up, guaranteeing a safe entry into any silo.

Safe silage

Feedex trailers are proven in silage with its smooth interior walls, sturdy front walls and watertight hatches that provide trouble-free work.

Full-width quality – powerful pick-up unit

The pick-up boasts five rows of tines, which are spaced at a narrow 56 mm and which gently and cleanly pick up the crop from a width of up to 1.85 m. The roller crop guard (standard feature all Feedex models) ensures a smooth transfer of the material to the feeder unit. Oversized pneumatic 15” gauge wheels provide positive but gentle guidance to the tines on the torsionable and spring-loaded pick-up unit. Adjusted to an accurate height, the gauge wheels provide clean gathering without losses. The flexible double-spring tines are bolted to strong section tubes – a design that protects the tines from damage and effectively cuts out crop contamination.

Quality of cut – just as you want it

The cutting system on Vicon forage wagons cuts the crop to a nominal 40 mm for superior quality. Fully lowered, the unit gives convenient access to all knives for regrinding in mounted position or easy removal as required.

RotoControl Feeder Unit

The Vicon RotoControl feeder unit pulls in the material with ease, providing maximum throughputs and crop protection. Four arm controlled swing arms feed the material through the cutting system (five optional feeder arms on Feedex 360/390. Serial for Feedex 440/650/780). The doublefinger tines ensure positive crop feed and exceptionally light and precise cuts. The cuts are gentle in fresh daily forage or precise and short in silage. Up to 33 knives chop the crop at uniform 40mm lengths. Blockages may be an occasional issue when the material is gathered from big swaths. No problem for the feeder unit, which hydraulically lowers the loading channel for convenient and swift removal of blockages from the tractor cab. No need to leave the tractor. No time lost.

Superior quality – gentle treatment of silage, hay and forage

Gentle treatment of hay, forage and wilted grass is one major plus for maintaining topquality forage. Minimizing losses and fragmentation as well as maintaining a healthy crop structure are key aspects for viable livestock farming.

Clean pick-up

The arm-controlled feeder unit with forged double tines manages enormous masses of material and the standard lift-out limit switch is gentle both on man and machine during headland turns. The standard 4-knife cutting system cuts the crop to suitable lengths that are easy to digest. Applications that require shorter cuts are catered for by the optional 16-knife system giving gentle yet precise silage cuts.

Built-in protection

Each knife in the cutter system is individually protected from impact with foreign objects and stones. The heavy spring-loaded knife breaks back from impact and returns to its cutting position without suffering any damage at all.

Superior quality - treatment in sweetness for hay and forage

In particular, the RotoControl system guarantees delicate fodder treatment. Delicate manipulation of the material avoids leaf losses and deteriorate the structure of the grass, which is a decisive element for the nutrition of animals.

Optimum loading and unloading

As the material enters the machine, it is transferred fast and effectively to the rear by the hydraulic chain-and-slat conveyor for full utilisation of its capacity. The slat-and-chain conveyor may also be operated from a control at the rear of the machine in addition to the cab based control. Besides, there is variable control of loading/unloading speeds.

When it gets tight for space

The hay extensions fold down and into the steel body to pass through low gates, reducing the total height of the single-axle Feedex 300 and Feedex 360 models to 2.25m. The hydraulic fold system is available as an option.

Easy control from PilotBox-T

All hydraulic functions – body, tailboard, drawbar, chain-and-slat conveyor, pick-up and cutting system – can be preselected on the PilotBox-T control unit and operated via the tractor control valve – a simple and cost-effective solution that eliminates the need for a separate hydraulic system on the forage wagon.

Safety, in the silo as on the road

The chassis of the trailers Feedex responds to all requirements of comfort and safety through a path of 1.95m, wide tires and a boogie axle. Feedex 390 and 440 are equipped with a hydraulic (optional air-) brake on each wheel, thus offering maximum security when traveling. This design is perfect for businesses, and the size of farms means that flexibility is essential.
