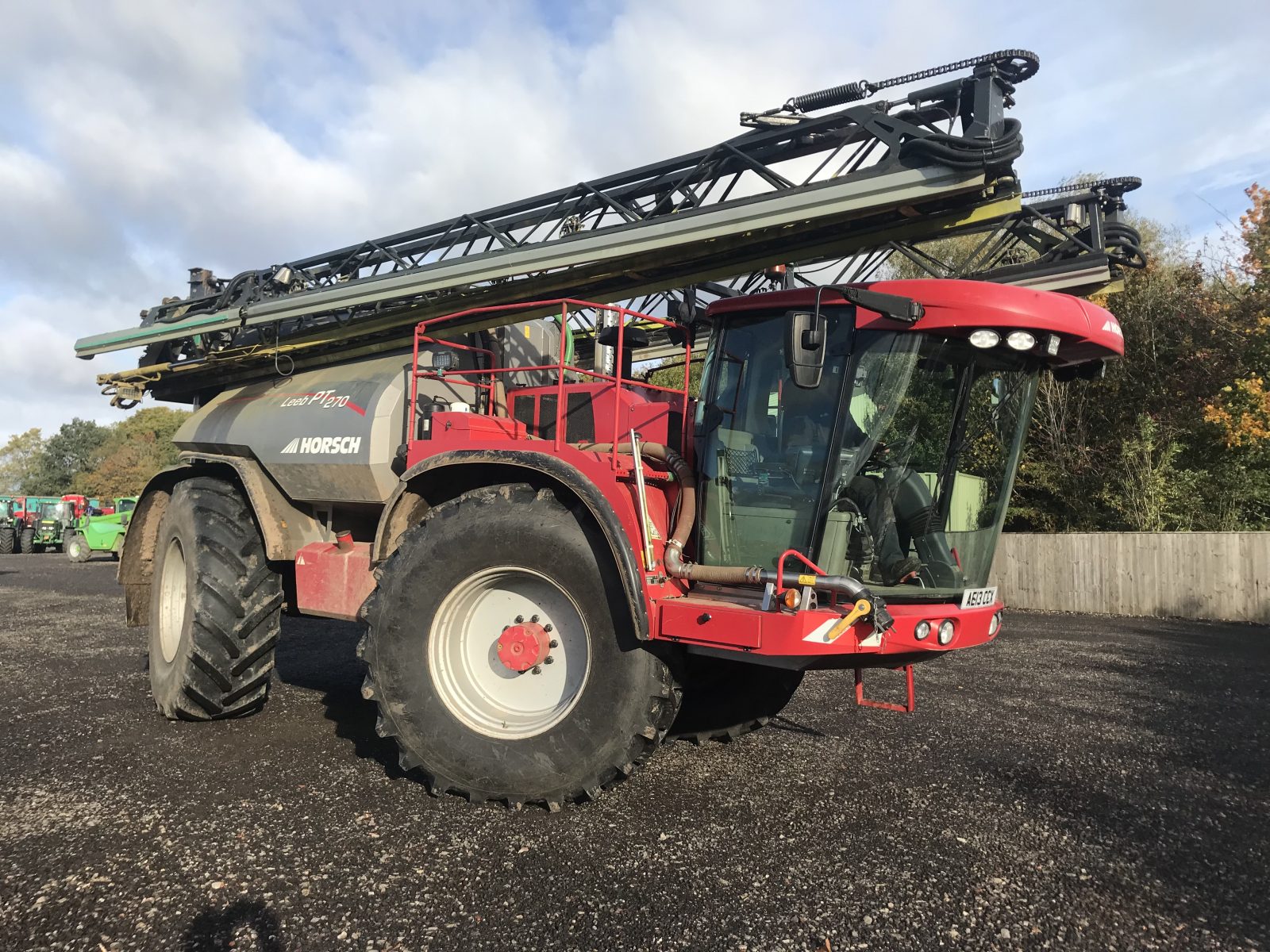

PT 270 Horsch PT 270 Specifications & Technical Data (2011—2015)
.jpg)
Technical specs - PT 270 Horsch
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.6 t
- Standard tyres
- 18.4 R 46
- No. of partial widths
- 5
- Working width
- 15 m
- Travel speed
- 40 km/h
- Barrel volume
- 8000 l
- Pump capacity
- 185 l/min
- Transport length
- 7.2 m
- Transport width
- 2.8 m
- Transport height
- 3 m
- Engine manuf.
- Deutz
- Engine type
- TCD 2013 L6 2V
- Engine power
- 200 kW
- Displacement
- 7.146 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 1050 Nm
More technical details, like: pump type, linkage type, foldable linkage, drive, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
is a 0 for the size specification so that means, that no information is available.
Special equipment
- Hydr. Hillside /slope control
-
No
Horsch PT 270 FAQ
What is the weight of the Horsch PT 270?
What are the transport dimensions of the Horsch PT 270?
What is the travel speed of the Horsch PT 270?
What are the standard tyre specifications for the Horsch PT 270?
What is the working width of the Horsch PT 270?
What is the volume capacity of the Horsch PT 270?
What are the spraying system components of the Horsch PT 270?
What are the spraying and pump system specifications of the Horsch PT 270?
How much is a Horsch PT 270 Self-propelled field sprayer (2011u20132015) worth?
Buy & Rent
Compare Horsch PT 270 with similar Self-propelled field sprayers
.jpg)

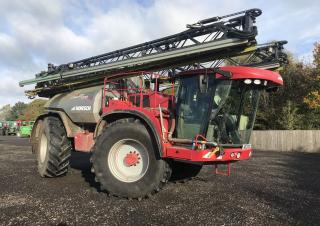

Horsch PT 270
