Pantera 4504 W (40) Amazone Pantera 4504 W (40) Specifications & Technical Data (2022—2022)

Weight: 10.887t – Pump type: Altek P 260 – Linkage type: Super L2-TG – Standard tyres: 520/85 R42 – Foldable linkage: 4-fach – No. of partial widths: 9

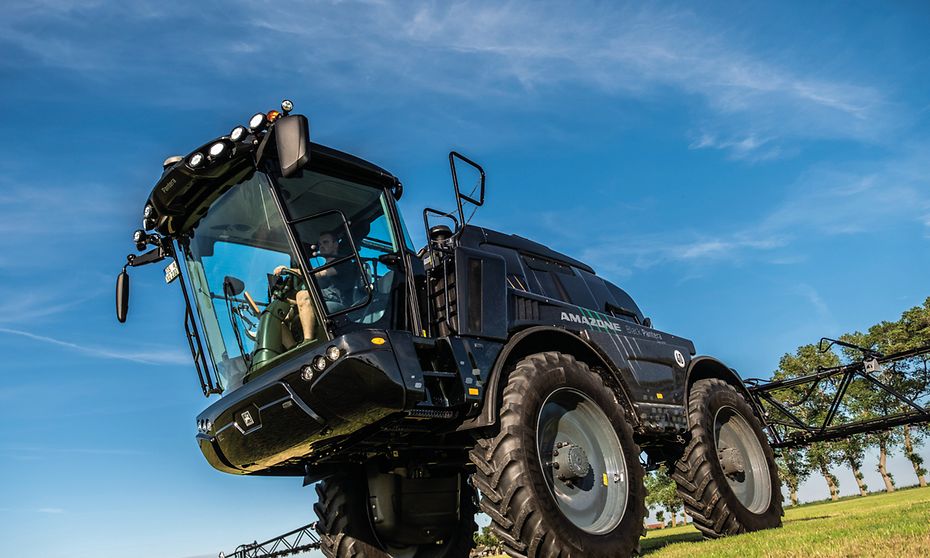

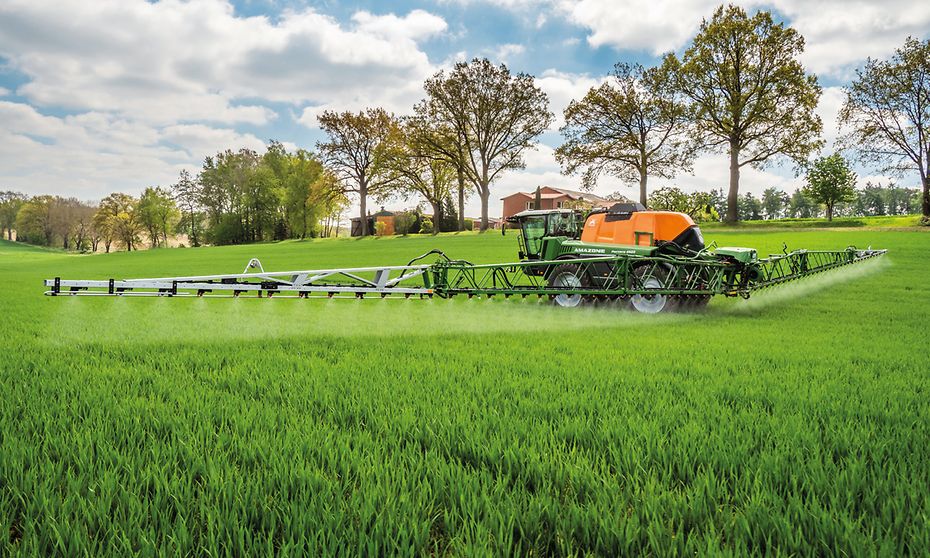

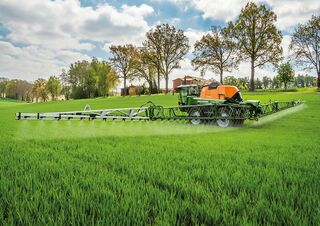

Self-propelled field sprayers Amazone Pantera 4504 W (40)
Self-propelled field sprayers Amazone Pantera 4504 W (40)
Self-propelled field sprayers Amazone Pantera 4504 W (40)
Self-propelled field sprayers Amazone Pantera 4504 W (40)
Self-propelled field sprayers Amazone Pantera 4504 W (40)
Self-propelled field sprayers Amazone Pantera 4504 W (40)
Self-propelled field sprayers Amazone Pantera 4504 W (40)
Self-propelled field sprayers Amazone Pantera 4504 W (40)

Technical specs - Pantera 4504 W (40) Amazone

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.887 t
Pump type
Altek P 260
Linkage type
Super L2-TG
Standard tyres
520/85 R42
Foldable linkage
4 -fach
No. of partial widths
9
Working width
40 m
Travel speed
50 km/h
Barrel volume
4500 l
Pump capacity
520 l/min
Transport length
8.6 m
Transport width
3 m
Transport height
3.9 m
Engine manuf.
Deutz
Engine type
k.A.
Engine power
160 kW
No. of cylinders
6
Emission level
V

More technical details, like: drive, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control
No

Download datasheets (PDF)

Amazone Pantera 4504 W (40) FAQ

When was the Amazone Pantera 4504 W (40) manufactured?

The Amazone Pantera 4504 W (40) was manufactured in 2022.

What is the weight of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) has a weight of 10.89 tonnes.

What are the transport dimensions of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) has a transport length of 8.6 meters, a transport width of 3 meters, and a transport height of 3.9 meters.

What is the travel speed of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) has a travel speed of 50 km/h.

What are the tyre specifications of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) is equipped with standard tyres sized 520/85 R42.

What is the working width of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) has a working width of 40 meters.

What is the volume capacity of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) has a barrel volume capacity of 4500 liters.

What are the key spraying system components of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) features a Super L2-TG model linkage, a foldable boom with 4 sections, and has 9 partial widths.

What are the spraying and pump system specifications of the Amazone Pantera 4504 W (40)?

The Amazone Pantera 4504 W (40) is equipped with an Altek P 260 model pump that has a capacity of 520 liters per minute.

How much is a Amazone Pantera 4504 W (40) Self-propelled field sprayer (2022u20132022) worth?

The residual value of the Amazone Pantera 4504 W (40) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
