Pantera 4504 S (40) Amazone Pantera 4504 S (40) Specifications & Technical Data (2022—2022)

Weight: 10.566t – Pump type: Altek P 260 – Linkage type: Super L2-TG – Standard tyres: 520/85 R42 – Foldable linkage: 4-fach – No. of partial widths: 9

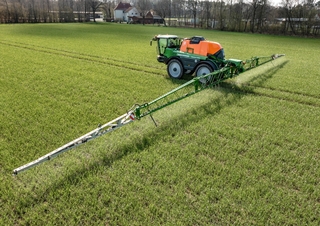

Self-propelled field sprayers Amazone Pantera 4504 S (40)

Pantera 4504 S (40)

Years of manufacture: 2022—2022

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Pantera 4504 S (40) Amazone

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.566 t

Pump type: Altek P 260

Linkage type: Super L2-TG

Standard tyres: 520/85 R42

Foldable linkage: 4 -fach

No. of partial widths: 9

Working width: 40 m

Travel speed: 50 km/h

Barrel volume: 4500 l

Pump capacity: 520 l/min

Transport length: 8.6 m

Transport width: 3 m

Transport height: 3.9 m

Engine manuf.: Deutz

Engine type: k.A.

Engine power: 160 kW

No. of cylinders: 6

Emission level: V

More technical details, like: drive, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control: No

Amazone Pantera 4504 S (40) FAQ

When was the Amazone Pantera 4504 S (40) manufactured?

The Amazone Pantera 4504 S (40) was manufactured in 2022.

What is the weight of the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) has a weight of 10.57 tonnes.

What are the transport dimensions of the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) has a transport length of 8.6 meters, a transport width of 3 meters, and a transport height of 3.9 meters.

What is the travel speed of the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) has a travel speed of 50 km/h.

What are the wheel and tyre specifications of the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) is equipped with standard tyres sized 520/85 R42.

What is the working width of the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) has a working width of 40 meters.

What is the barrel volume capacity of the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) has a barrel volume capacity of 4500 liters.

What are the key spraying system components of the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) features a Super L2-TG model linkage, has 9 partial widths, and its boom folds into 4 sections.

What are the spraying and pump system specifications for the Amazone Pantera 4504 S (40)?

The Amazone Pantera 4504 S (40) is equipped with an Altek P 260 model pump with a capacity of 520 liters per minute.

How much is a Amazone Pantera 4504 S (40) Self-propelled field sprayer (2022u20132022) worth?

The residual value of the Amazone Pantera 4504 S (40) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
