Pantera 4503 (36) Amazone Pantera 4503 (36) Specifications & Technical Data (2019—2021)

Weight: 10.932t – Pump type: Altek P 260 – Linkage type: Super L-TG – Standard tyres: 520/85 R42 – No. of partial widths: 9 – Working width: 36m

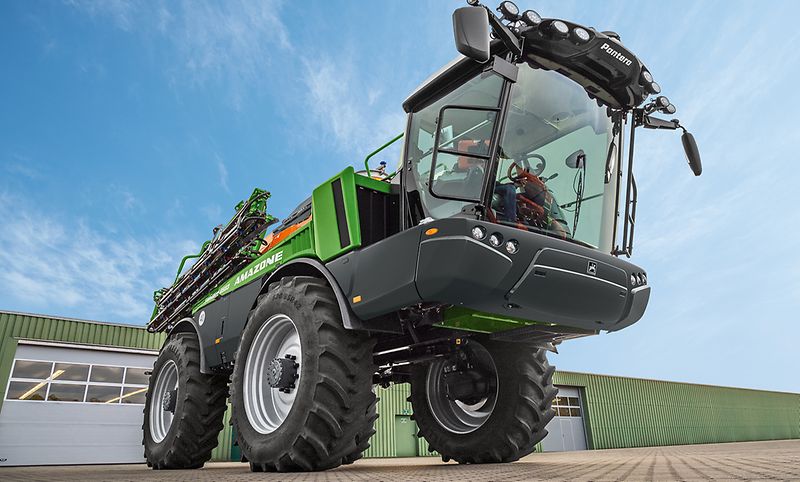

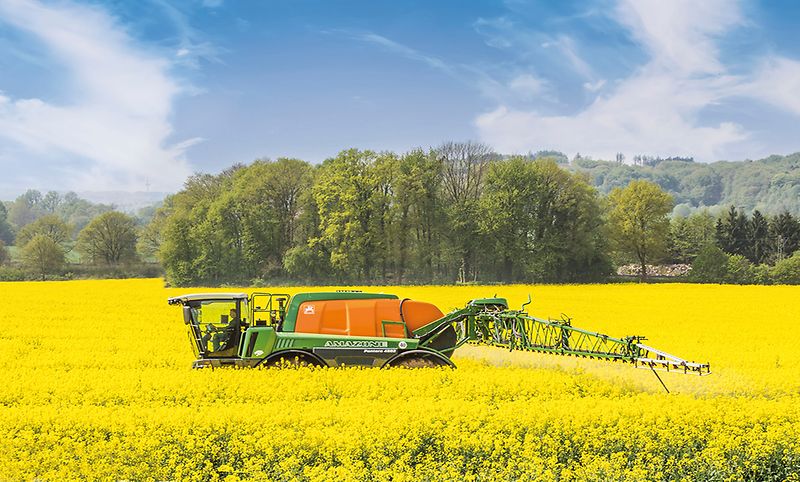

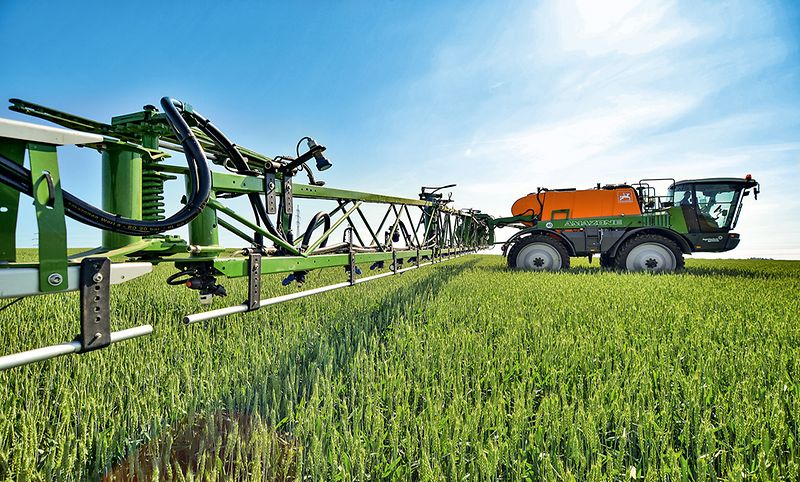

Self-propelled field sprayers Amazone Pantera 4503 (36)

Pantera 4503 (36)

Years of manufacture: 2019—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Pantera 4503 (36) Amazone

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.932 t

Pump type: Altek P 260

Linkage type: Super L-TG

Standard tyres: 520/85 R42

No. of partial widths: 9

Working width: 36 m

Travel speed: 50 km/h

Barrel volume: 4500 l

Pump capacity: 520 l/min

Transport length: 8.6 m

Transport width: 2.55 m

Transport height: 3.9 m

Engine manuf.: k.A.

Engine type: k.A.

Engine power: 160 kW

Emission level: V

More technical details, like: foldable linkage, drive, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control: No

Download datasheets (PDF)

Amazone Pantera 4503 (36) FAQ

When was the Amazone Pantera 4503 (36) manufactured?

The Amazone Pantera 4503 (36) was manufactured from 2019 to 2021.

What is the weight of the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) has a weight of 10.93 tonnes.

What are the transport dimensions of the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) has a transport length of 8.6 meters, a transport width of 2.55 meters, and a transport height of 3.9 meters.

What is the travel speed of the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) has a travel speed of 50 km/h.

What are the standard tyre specifications for the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) comes with standard tyres sized 520/85 R42.

What is the working width of the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) has a working width of 36 meters.

What is the volume capacity of the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) has a barrel volume capacity of 4500 liters.

What are the key spraying system components of the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) uses a Super L-TG model linkage and has 9 partial widths.

What are the spraying and pump system specifications for the Amazone Pantera 4503 (36)?

The Amazone Pantera 4503 (36) is equipped with an Altek P 260 model pump that has a capacity of 520 liters per minute.

How much is a Amazone Pantera 4503 (36) Self-propelled field sprayer (2019u20132021) worth?

The residual value of the Amazone Pantera 4503 (36) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
