Pantera 4502 (28) Amazone Pantera 4502 (28) Specifications & Technical Data (2013—2017)

Weight: 9.667t – Pump type: Altek P 260 – Linkage type: Super L-TG – Standard tyres: 380/90 R46 – No. of partial widths: 7 – Working width: 28m

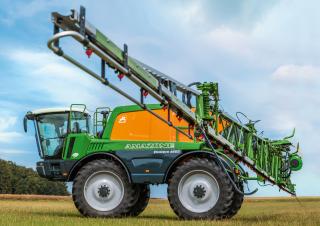

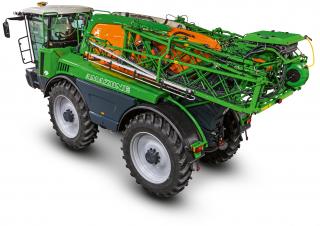

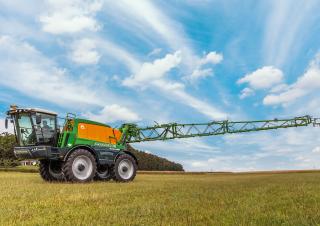

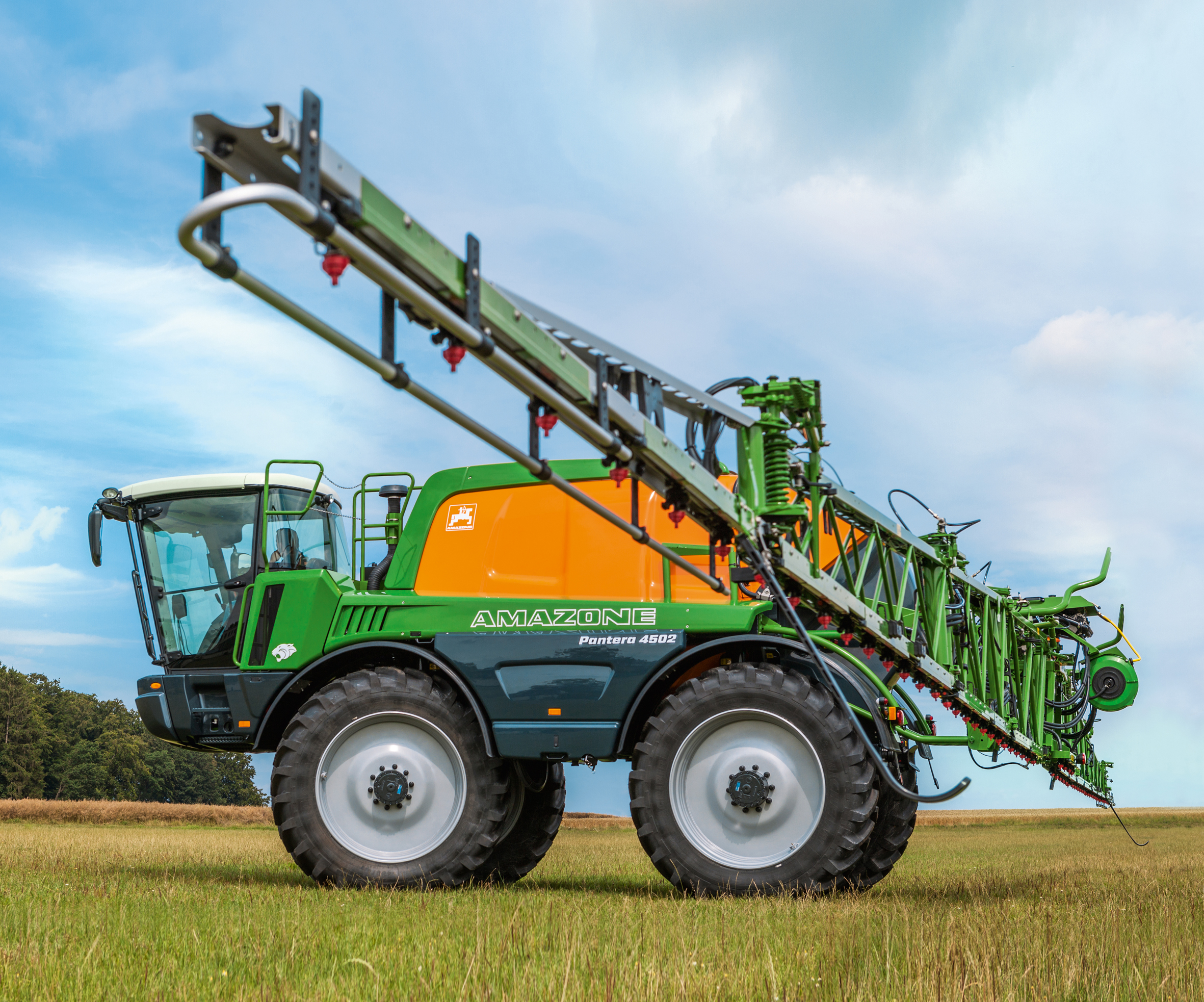

Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)
Self-propelled field sprayers Amazone Pantera 4502 (28)

Technical specs - Pantera 4502 (28) Amazone

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.667 t
Pump type
Altek P 260
Linkage type
Super L-TG
Standard tyres
380/90 R46
No. of partial widths
7
Working width
28 m
Travel speed
40 km/h
Barrel volume
4500 l
Pump capacity
520 l/min
Transport length
9.4 m
Transport width
2.55 m
Transport height
3.8 m
Engine manuf.
k.A.
Engine type
k.A.
Engine power
160 kW

More technical details, like: foldable linkage, drive, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Hydr. Hillside /slope control
No

Amazone Pantera 4502 (28) FAQ

When was the Amazone Pantera 4502 (28) manufactured?

The Amazone Pantera 4502 (28) was manufactured from 2013 to 2017.

What is the weight of the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) has a weight of 9.67 tonnes.

What are the transport dimensions of the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) has a transport length of 9.4 meters, a transport width of 2.55 meters, and a transport height of 3.8 meters.

What is the travel speed of the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) has a travel speed of 40 km/h.

What are the standard tyre specifications for the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) is equipped with standard tyres sized 380/90 R46.

What is the primary working width of the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) has a working width of 28 meters.

What is the volume capacity of the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) has a barrel volume capacity of 4500 liters.

What are the key spraying system components of the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) features a Super L-TG model linkage and has 7 partial widths.

What are the spraying and pump system specifications of the Amazone Pantera 4502 (28)?

The Amazone Pantera 4502 (28) is equipped with an Altek P 260 model pump with a capacity of 520 liters per minute.

How much is a Amazone Pantera 4502 (28) Self-propelled field sprayer (2013u20132017) worth?

The residual value of the Amazone Pantera 4502 (28) depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
