Vari-Master L OL 4E NHS Kuhn Vari-Master L OL 4E NHS Specifications & Technical Data (2020—2026)

max. working width: 2.2m – Weight: 2.15t – No. of furrows: 4 – Body spacing: 1010mm – Required power: 103kW – Attachment: ZD

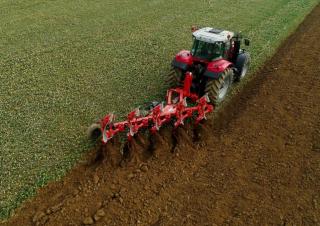

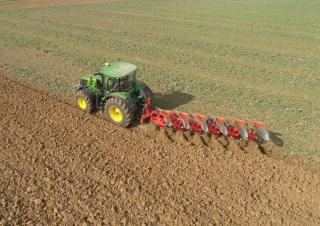

Ploughs Kuhn Vari-Master L OL 4E NHS
Ploughs Kuhn Vari-Master L OL 4E NHS
Ploughs Kuhn Vari-Master L OL 4E NHS
Ploughs Kuhn Vari-Master L OL 4E NHS
Ploughs Kuhn Vari-Master L OL 4E NHS
Ploughs Kuhn Vari-Master L OL 4E NHS

Technical specs - Vari-Master L OL 4E NHS Kuhn

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. working width
2.2 m
Weight
2.15 t
No. of furrows
4
Body spacing
1010 mm
Required power
103 kW
Attachment
ZD
Frame height
900 mm
Cutting width
550 mm
construction type
V
Stone protection
h

More technical details, like: transport width, leg thickness are available in the full technical specs.

Special equipment

Tyres for transport
No
Packer arm
No

Download datasheets (PDF)

Kuhn Vari-Master L OL 4E NHS FAQ

When did production of the Kuhn Vari-Master L OL 4E NHS start?

The Kuhn Vari-Master L OL 4E NHS was first produced in 2020.

What is the weight of the Kuhn Vari-Master L OL 4E NHS?

The Kuhn Vari-Master L OL 4E NHS weighs 2.15 tonnes.

What is the required power for the Kuhn Vari-Master L OL 4E NHS?

The Kuhn Vari-Master L OL 4E NHS requires 147 kW of power.

What are the primary working dimensions of the Kuhn Vari-Master L OL 4E NHS?

The Kuhn Vari-Master L OL 4E NHS has a maximum working width of 2.2 meters and a cutting width of 550 millimeters.

What type of implement hitching does the Kuhn Vari-Master L OL 4E NHS use?

The Kuhn Vari-Master L OL 4E NHS uses a drawbar attachment for implement hitching.

What are the key tillage and cultivation components of the Kuhn Vari-Master L OL 4E NHS?

The Kuhn Vari-Master L OL 4E NHS features hydraulic stone protection, has 4 furrows, a body spacing of 1010 mm, a frame height of 900 mm, and a variometer construction type.

How much is a Kuhn Vari-Master L OL 4E NHS Plough (2020u20132025) worth?

The residual value of the Kuhn Vari-Master L OL 4E NHS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
