Altis 2-1500 Kuhn Altis 2-1500 Specifications & Technical Data (2016—2026)

Balance is the key

With their light weight, suspension during transport and 3D suspension, ALTIS 2 sprayers are designed to offer constant balance throughout the spraying process to ensure high output and total reliability.

Prevent blockages, adopt quadruple filtration!

ALTIS 2 sprayers are equipped with four levels of filtration. After filling (1), the suction filter (2) and the delivery filter under pressure (3) will prevent any larger impurities from reaching the boom. Bowl filters on the boom (4), positioned after the section valves, as close as possible to the nozzle, will keep blockages down to a minimum. All the filters can be cleaned, even when the sprayer tank is full.

Full control with a single circuit

With a single circuit, you are fully in control of anything you do with your sprayer. With ALTIS 2 sprayers, imagine what you are doing before you even touch any valves!

The smart sprayer!

KUHN electronic solutions, with BUSCAN technology on ALTIS 2 sprayers, offer excellent versatility and increase both spraying accuracy and driving comfort. Discover the farming of the future.

Essential for spraying accuracy: REB3 unit

The REB3 unit groups together all sprayer functions. Adapted to the accuracy of crop protection work, it was designed to be as easy to use as possible, with good ergonomics.

Make spraying simpler with VISIOREB

Automatic section cutout is becoming the standard, both for application accuracy and for your comfort. Designed around the GPS Section Control function with a 7-inch touchpad, the VISIOREB regulation unit is perfectly adapted to spraying. Whether preparing, spraying or visualising, the VISIOREB terminal facilitates spraying in all stages of your work.

Outstanding ergonomics!

With its latest generation colour touch screen, the VISIOREB terminal offers outstanding ergonomics. With its uncluttered and intuitive menus, you can prepare your sprayer in just a few clicks. From controlled sprayer filling to nozzle selection, the VISIOREB unit will only ask you the questions required to perform high-quality work in your chosen field.

Kuhn “+” points

MONITOR YOUR WORK WITH VISUALISATION Modify the view angle for your field, as required! Rear view, top view or automatic mode? Anything is possible! You can even move the machine manually. At the headland, the zoom allows you to check that all hidden areas of your field have been treated.

Functions of the VISIOREB terminal

In addition to controlling the functions integrated into the REB3 unit, the VISIOREB terminal proposes the following points as standard: Assistance for filling, with a built-in computer Contrast that automatically adapts to the working conditions A visual aid to ensure that the entire field has been treated Increased intuitive operation via visual indicators Facilitated field control, providing improved traceability.

All in one: a single pipe for increased simplicity!

ALTIS 2 and PF sprayers are only connected by a single pipe. Quick-connections make coupling easy and quick. No additional units are required for spraying. You just choose which tank you wish to work with by clicking on the REB3 or VISIOREB unit in the cab.

Increase your spraying accuracy: continuous circulation

Accuracy when you start work in the field: even when spraying stops, the product flows continuously through the boom at a high rate. Priming is continuous and the risk of deposits is very low. Opening and closing accuracy: an air circuit controls the anti-drip valves directly and the spray opens and closes instantly.

Control the boom-end jets

To increase spraying width, an additional asymmetric jet can be installed on the boom-ends. These jets are controlled manually or electrically from the cab. They will allow you to increase the spraying overlap between two passes or for field borders.

PPE locker

Personal protective equipment is compulsory for your safety during your spraying work. This watertight locker allows you to keep your PPE in good condition and in a handy location. A second locker is located on the right-hand side of ALTIS 2 sprayers.

Work under optimum conditions: work lights

To make the most of optimum spraying conditions (low temperature and high humidity), night work is possible. One LED lamp is located below the boom on each side for perfect spraying control, even at night.

Cleaning the sprayer

To clean the sprayer in the field, an automatic 15 m hose reel with manual spray gun is positioned near the boom.

2 tanks that balance each other out

The tanks are designed to maintain excellent left/right balance irrespective of fill level. Their deep sump design ensures excellent draining. The specific shape of the sump (double-slope) remains effective, even when tilting. The walls of the polyethylene tanks are perfectly smooth, both inside and out, to facilitate cleaning.

Automatic Filling System

DILUSET and e-SET setting up systems integrate as standard a system that allows you to fill the sprayer tank automatically with a selected volume. The plus point of e-Set is that there is no need to climb up into the cab; the selected volume is displayed on the setting up unit!

Visualise the volume in the tank

You have excellent visibility over the gauges, whether from the setting up area or the tractor cab. The gauge on the rinsing tank will also help you to split up the rinsing operations easily.

Centralised filling

Whether filling the main tank or the rinsing tank, these operations can be performed from the centralised setting up area. Quick couplings will help you connect the pipe very easily, without any tools.

Filling with high-volume pumps

With the high-volume piston-diaphragm or centrifugal pumps on ALTIS 2 sprayers, you will save time when filling the main tank. Spend less time in the filling area to make the most of your time in the field and increase your work output.

Simple, both inside and out

Setting up your sprayer is a key stage in the spraying process. With two main valves, the total number of handling operations from filling to rinsing is considerably reduced, eliminating any risk of error and ensuring that you rinse all parts of the sprayer! Simple setting up also involves having a shorter circuit for reduced dead storage volumes to facilitate the rinsing stages.

Manuset

Complete control when preparing your products. During rinsing operations, 360° with the delivery valve ensures that you send clear water into all sprayer circuits.

Diluset +

Rinse your sprayer or boom from the cab! During filling operations, pumping automatically stops at the required value, while you maintain control in the setting up area with the Diluset + unit.

Kuhn “+” points

360° FOR 30% LESS HANDLING The multi-function handwheel allows you to rinse the entire sprayer with one hand, saving you time during the setting up process. Reduced handling by up to 30% in comparison to some competitors allows you to set up the machine trouble-free.

By increasing your capacity by 75%, you improve your productivity

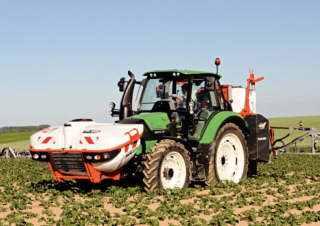

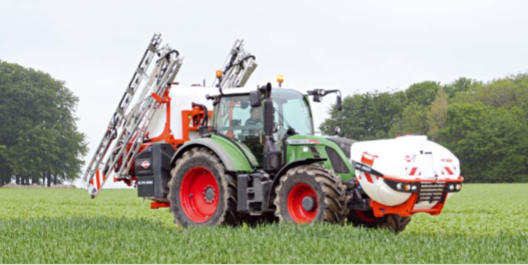

The combination of ALTIS 2 and PF sprayers offers a capacity of 2500 to 3500 litres which, with the performance of today’s tractors, makes it a cheaper solution than a self-propelled sprayer with the same capacity. PF front-end sprayers, with a capacity of 1000 to 1500 litres, provide optimal weight distribution on the tractor to maintain excellent stability, even when tilting.

A proper sprayer: complete and independent

Front-end sprayers are not simply front tanks; their design is based on boom sprayers and makes them autonomous and independent. The circuits of these sprayers integrate functions such as product incorporation, mixing and rinsing. Electric or hydraulic drive motors of up to 125 L/min are used to supply the circuits, and setting up areas are available in either manual (MANUSET) or motorised version (DILUSET).

Clear water? 1 product? 2 products? it’s possible!

Both sprayers offer several strategies, a large capacity of up to 3500 litres with a single product or two separate capacities for 2 different products. The PF can also simply be used as a clear water feeder (PF S version).

Functional & ergonomic design

PF sprayers adopt a compact shape to provide users with excellent visibility over the front of the tractor. The needle gauge is easily visible from the cab and indicates the volume at the front. LED front and side lights are available as a supplement to the signaling lights for night spraying. (It is prohibited to install road lights on a front-end tool.)

A design worthy of the largest models

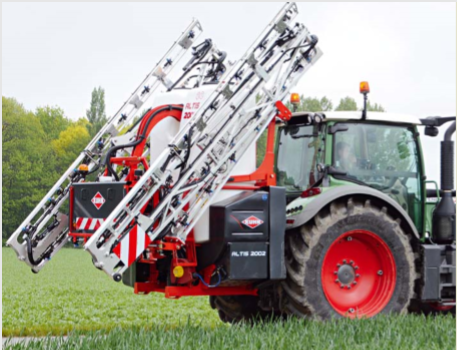

ALTIS 2 mounted sprayers have been designed on the same basis as our trailed and self-propelled sprayers. The OPTILIFT system with parallelogram will guarantee a level of quality and reliability that’s worthy of the largest models.

Simple yet suited to your needs

First and foremost, ALTIS 2 are simple, reliable sprayers that you will quickly come to grips with.Quick, easy couplingSimple, trouble-free setting upIntuitive electronic regulation solutions.

It all starts with quick and easy coupling!

Attachment is downtime that must be kept as short as possible, especially if the tractor is assigned to a number of other tasks. The number of connections and the Easy-Hitch design makes the sprayer operational in under 3 minutes!

A light-weight triangle

The Easy-Hitch automatic coupling triangle weighs only 17 kg and is therefore easy to handle and install on the rear lifting arms of the tractor. The sprayer angle is adjusted directly before sprayer coupling and without any effort! The triangle is locked onto the sprayer safely and automatically without any risk of it becoming detached while you work.

A more beneficial position

The pump is positioned at the rear on ALTIS 2 sprayers, which provides easy access for servicing and allows the use of a long transmission to facilitate coupling. The operator can leave enough space to secure the connections before reversing and locking on the sprayer.

A perfectly balanced design

The overall design of ALTIS 2 mounted sprayers is based on a simple fact: you cannot always use your main tractor for spraying. The "L" design coupled with the OPTILIFT parallelogram offers a reduced unladen weight compared to the competition, and also helps to carry up to 2000 litres of spraying mixture.

Centre of gravity close to the tractor

With the EasyHitch automatic coupling system, the lifting arms of the tractor are fully integrated into the frame on ALTIS 2 sprayers. The load is therefore transferred vertically on the lower arms, lifting needs are very low and the adherence of the front wheels of the tractor is preserved.

“l” frame

The unique "L-shaped" frame offers a reduced unladen weight in comparison to the competition and helps to carry 2000 litres of spraying mixture. Its one-piece machine-welded design with high elastic strength ensures outstanding robustness and long life for the sprayer.

A parallelogram just like on larger models!

OPTILIFT is the keystone of ALTIS 2 mounted sprayer design. Nowadays, many manufacturers of trailed and self-propelled sprayers have swapped sliding mast lifting systems in favour of parallelogram lifting systems. Naturally, ALTIS 2 mounted sprayers have followed this trend by proposing OPTILIFT which features a parallelogram lifting system, essential for sprayer performance.

Kuhn sos order

Express delivery! You are sure of getting the spare parts you need every day of the year - including weekends and bank holidays. With KUHN sos order, downtimes are kept to a minimum and your productivity is preserved.

E-set

In addition to the RINS-ASSIST function and the automatic filling system, e-SET guarantees 1:10 dilution of any residues. With the EASYSET unit, no searching for valve positions, just select the required function.

RPB: compact, simple and efficient

The RPB electronic unit automatically adapts the quantity of spraying product to the speed of the tractor (DPAE regulation). Only important information is displayed on the working screen (Dose/Ha, Pressure and Speed). While spraying, the operator can: Modulate the dose Open and close sections sequentially Switch on the boom lights. The boom folding and unfolding control, via function selector, is directly integrated into the unit.

Kuhn “+” points

Keep an eye on information that is important to you, while you work. Very easy to read and clearly displayed in large letters. The following information is displayed on a single working screen: Dose applied, and selected Theoretical pressure Forward speed. The optional equipment is coupled to the GPS Section Control: H MATIC: when the spray opens, the boom is already at spraying height.

It displays only what you need, when you need it!

Dose applied, pressure, speed, volume remaining in the tank or, alternatively, section control? It’s all there, and nothing else. The functions are displayed when you click or at the headland to let you control the options as required. VISIOREB will not drown you in unwanted information and lets you only display what you need, while you work.

Gps section control: simply high-performance

The boom sections open and close automatically. Fully integrated into the REB3 or VISIOREB regulation unit, the configurable system is simple to control according to requirements. Work in daylight or at night without fatigue and with the same efficiency: No additional boxes or wires Only 3 operating modes (manual, contour or automatic) Various configurations can be programmed to optimise overlap.

Modulate the dose – modulation maps

To reduce your production costs, dose modulation is now possible between fields. Integrating a recommendation map into your GPS will allow the regulation unit to apply the selected value directly.

Modulate the dose – n-sensor

The regulation unit is compatible with many nitrogen sensors. You apply only products that the plant needs, without any excess! You can then use all the potential of your soil.

Already equipped with a guide bar?

Compatibilities exist with many guide bars equipped with GPS section cutouts. Cutouts such as Trimble, CNH, Raven, Top Con, Teejet, Arag or Rinex are compatible. This is your opportunity to increase the benefits from the equipment on your tractor. A simple interface will make the REB3 unit compatible with your section cutout.

Speed sensor via gps

Equipping your sprayer with a GPS antenna makes it capable of measuring the forward speed itself. The wheel sensors on your farm tractors may be discontinued. With this sensor, slippage is taken into account, providing improved regulation quality.
