XMS108 Kubota XMS108 Specifications & Technical Data (2017—2022)

Control Panel

Intuitive control panel design separates suction and pressure sides. It is conveniently located on the left-hand side of the sprayer.

Full Integration Concept

It is easy to operate the XMS1 sprayer with the control panel, chemical inductor, handwash tank, and clean clothes locker all on the same side of the sprayer. The chemical inductor is securely stored when it is not in use.

18 Litre Hand Wash Tank

Everything is available to keep your hands clean. Easy access to fill the tank via the opening in the cover. You can wash your hands using the hand wash tap.

Chemical Inductor

The graduated chemical inductor with a capacity of 30 litres is mounted on a pivoting point and fully integrated in the frame. The rotating can-wash nozzle releases water when pushed downwards. The circular rinsing system is no add-on: it is part of the design!

130 Litre Clean Water

The sprayer can be cleaned in the field with water from the clean water tank. The level sight gauge indicates the amount of water in the clean water tank. An external cleaning set is optional and includes a 15m hose, a brush with insert for soap, all linked to the pressure side of the pump.

Clean Cloth Locker

The clean clothes locker allows you to keep your safety and cleaning equipment or tools with you on the sprayer.

Hydrant Filling

The optional 2 inch hydrant filling device allows filling under pressure at high capacity. A GEKA adapter for 1 inch filling is available as an option.

Filling via the 1.5 Inch Suction Hose

Water is filtered initially by the filter on the hose and then by the suction filter. At the same time, you can use the chemical inductor to add and premix chemicals. A CAMlock adapter for 2 inch filling is available as an option.

Environmental Focus

ENFO priming and rinsing system is standard on all our spray computers. This smart technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of chemicals, and saving water are the benefits for you and your environment.

Automatic Priming of Spray Lines

Before spraying starts, the spray lines are filled with chemicals exactly up to the nozzle by automatic section shut off. This means no waste of chemicals and accurate application from the first moment!

Automatic Rinsing of Spray Lines

After finishing or interruption, the pesticides are automatically flushed out of the spray lines. This means using up to the last litre of mixture and rinsing the spray lines with the minimum amount of clean water.

Easy Hitch

The XMS1 makes life simple for you: Enough space to connect the PTO shaft, hydraulic and electric cables. Drive backwards to connect to the sprayer. Lift up the sprayer. Push in the storage legs and the XMS1 is ready to go! A parking frame is available for easy hitching and storage of the sprayer.

A complete range of mounted field sprayers

Kubota now offers a complete range of mounted sprayers. The XMS1 joins the existing XMS2 mounted field sprayer range, to offer a comprehensive mounted sprayer range, including the XFT front tank.

Xms210 - 213 - 216 - 218

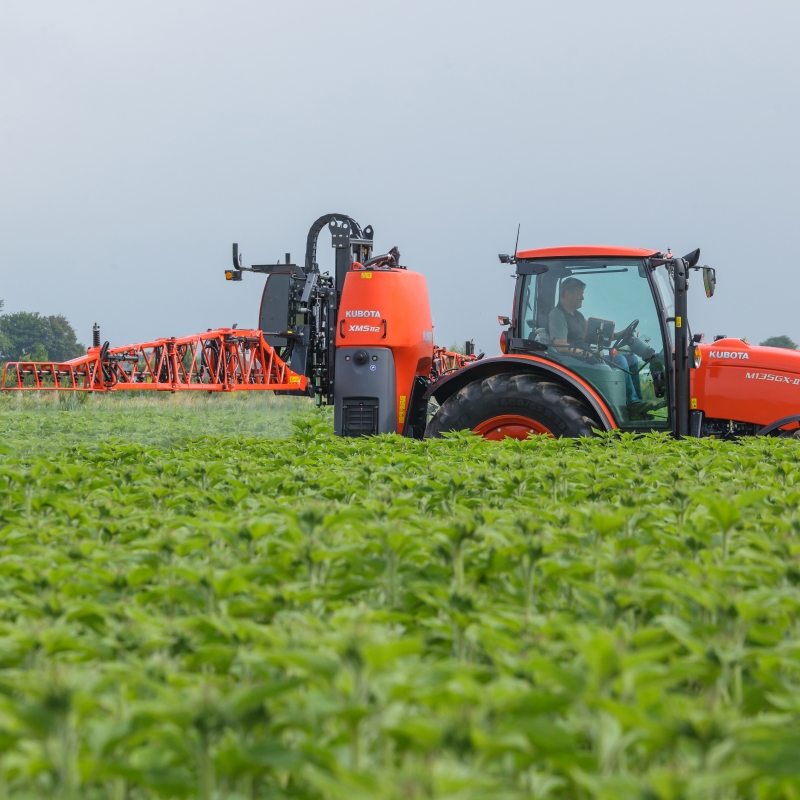

The XMS2 is an ISOBUS compatible mounted sprayer available in 4 different tank sizes: 1000, 1300, 1600 and 1800 litres and 2 different boom types (HOSA and HC). The HC boom range is even available up to 30 metres. The centre of the gravity of the sprayer is close to the tractor for maximum weight transfer. It is very easy to work with the control panel. The valves are well protected behind the door. To operate the XMS2 you can use the EC remote control, FMC spray computer, IsoMatch Tellus GO or the IsoMatch Tellus terminal.

XFT Comfort or XFT Pro

The XFT front tank has a nominal volume of more than 1100 litres. The XFT is that front end weight, adding stability to your tractor. In combination with the XMS2 mounted sprayer, the XFT provides a total volume of around 3000 litres, making this combination a serious alternative to a self propelled sprayer. The XFT is available as Comfort (manual control panel) or Pro (electrical control panel) version. You can select the front tank from the cab or through the EasySet valve panel. Without a front PTO shaft or hydraulic hoses, hitching and unhitching the XFT is extremely simple.

Starguide IV: Automatic GPS section control and guidance by D-GPS

Those who have used it will never go back. Starguide IV will change your spraying days forever: spray around the headland and Starguide IV will control the spray sections automatically as you cover the remainder of the field. Starguide IV is easy to operate: after spraying a field boundary the overlap and headland management are controlled for the rest of the field!

The Starguide IV enables you

Spraying in the dark Accurate spraying by full overlap control Increased operator comfort

Additional Features

Easy to operate intuitive 5.7” touch screen Field view with covered areas and overlap Single and double overlap in different colours GPS status warnings USB slot for data export in different formats RXA-30 antenna

Multiple folding possibilities

The HC boom gives you the functionalities for one side folding, symmetrical reduction and asymmetrical reduction depending on the choice for the electric hydraulic command.

Hosa boom

The HOSA is a unique boom having an advanced Z-folding principle: the lateral movement enables you to quickly reduce boom width and pass obstacles in the field. The aluminium profile is designed for maximum resistance. No welding provides remarkable strength, and the anodised hardened surface protects against scratches and corrosion.

Light weight, maximum strength

The HC boom has been designed for 100% integration of spray lines and nozzles, ensuring light weight and maximum strength.
