5105GF John Deere 5105GF Specifications & Technical Data (2017—2021)

Model rating
5,50 / 10

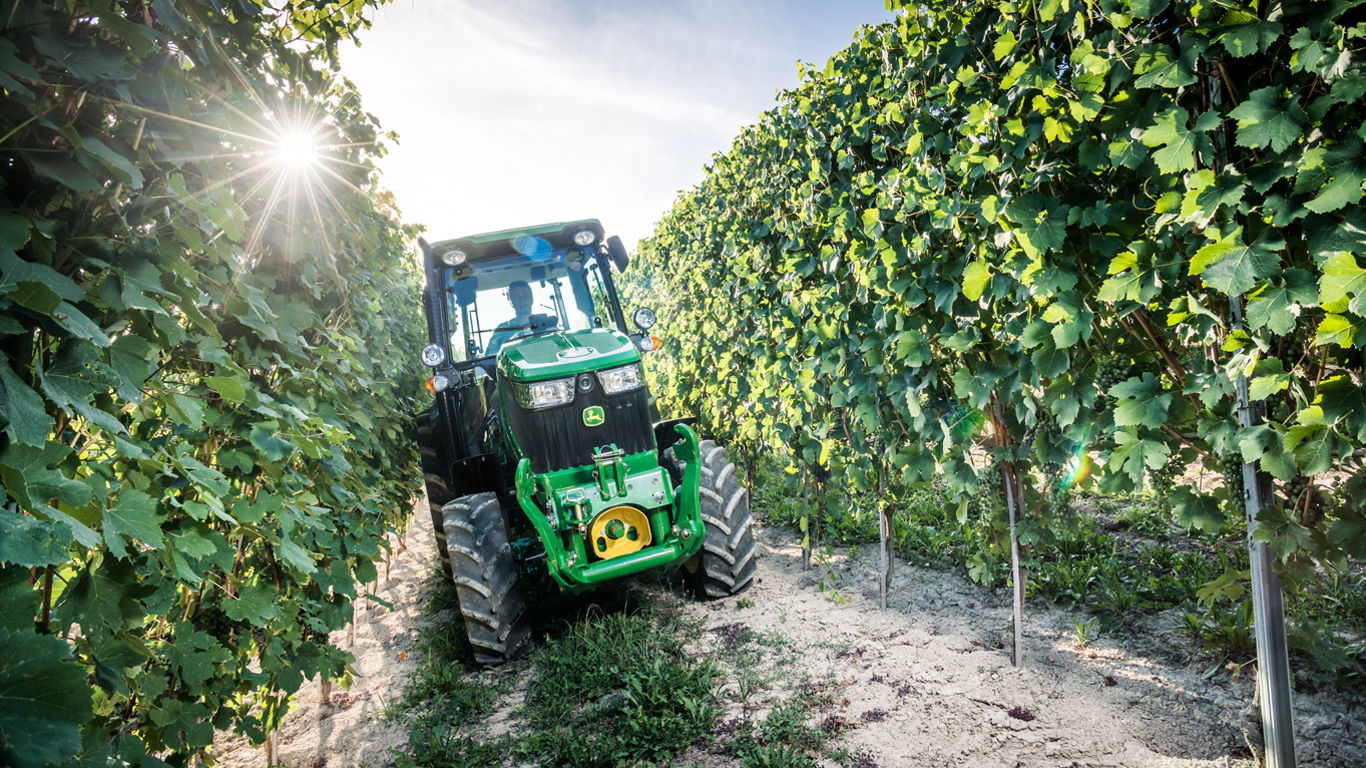

The John Deere 5105GF is a 4 wheel drive tractor manufactured from 2017 to 2021. It has a weight of 3.035 tons and is equipped wit…

The John Deere 5105GF is a 4 wheel drive tractor manufactured from 2017 to 2021. It has a weight of 3.035 tons and is equipped with a 77 kW engine. The tractor has a transport length of 3648 meters and a travel speed of 35 km/h. It has a transport width of 1.951 meters and a transport height of 2.42 meters. The special equipment included with this tractor is a cabin.

4WD Tractors John Deere 5105GF
4WD Tractors John Deere 5105GF
4WD Tractors John Deere 5105GF
4WD Tractors John Deere 5105GF
4WD Tractors John Deere 5105GF
4WD Tractors John Deere 5105GF

Technical specs - 5105GF John Deere

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
77 kW
Model series
5G
Back tyres
380/70 R24
Front tyres
280/70 R18
Transport length
3.648 m
Transport width
1.951 m
Transport height
2.42 m
Travel speed
35 km/h
Transmission
24/24
Transmission type
m
Weight
3.035 t
Control unit
-/2 ew/dw
Steering
h
Engine manuf.
FPT
Engine type
F 34
Displacement
3.4 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
III B

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

John Deere 5105GF FAQ

When was the John Deere 5105GF manufactured?

The John Deere 5105GF was manufactured from 2017 to 2021 and belongs to the 5G model series.

What is the weight of the John Deere 5105GF?

The John Deere 5105GF has a weight of 3.04 tonnes.

What are the transport dimensions of the John Deere 5105GF?

The John Deere 5105GF has a transport length of 3.65 meters, a transport width of 1.95 meters, and a transport height of 2.42 meters.

What is the engine power of the John Deere 5105GF?

The John Deere 5105GF has an engine power of 77 kW.

What is the travel speed of the John Deere 5105GF?

The John Deere 5105GF has a travel speed of 35 km/h.

What are the drivetrain and transmission specifications of the John Deere 5105GF?

The John Deere 5105GF has a mechanical transmission with 24 forward speeds and 24 reverse speeds.

What type of steering does the John Deere 5105GF have?

The John Deere 5105GF has hydraulic steering.

What are the wheel and tyre specifications of the John Deere 5105GF?

The John Deere 5105GF has front tyres sized 280/70 R18 and back tyres sized 380/70 R24.

How much is a John Deere 5105GF 4WD Tractor (2017u20132021) worth?

The residual value of the John Deere 5105GF depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
