Explorer 100 MD SAME Explorer 100 MD Specifications & Technical Data (2019—2025)

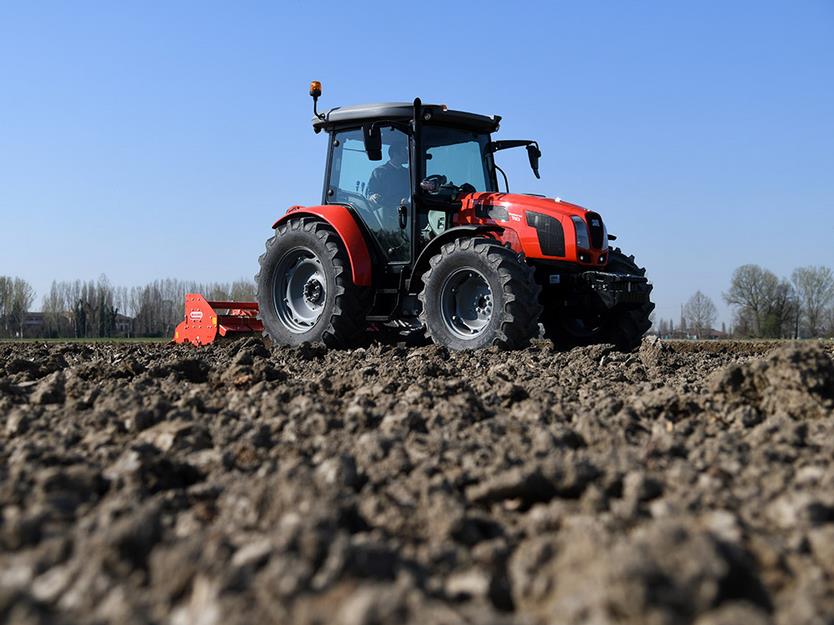

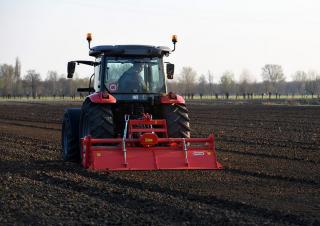

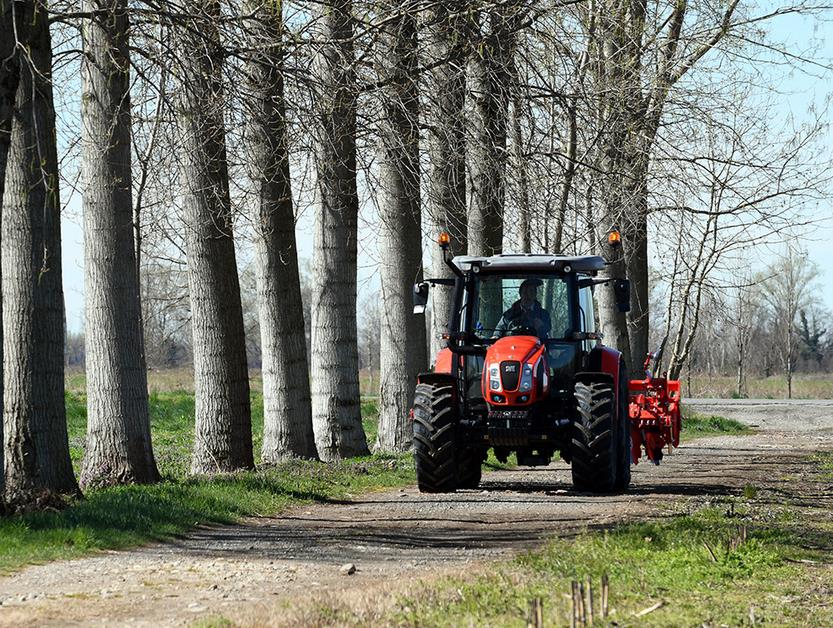

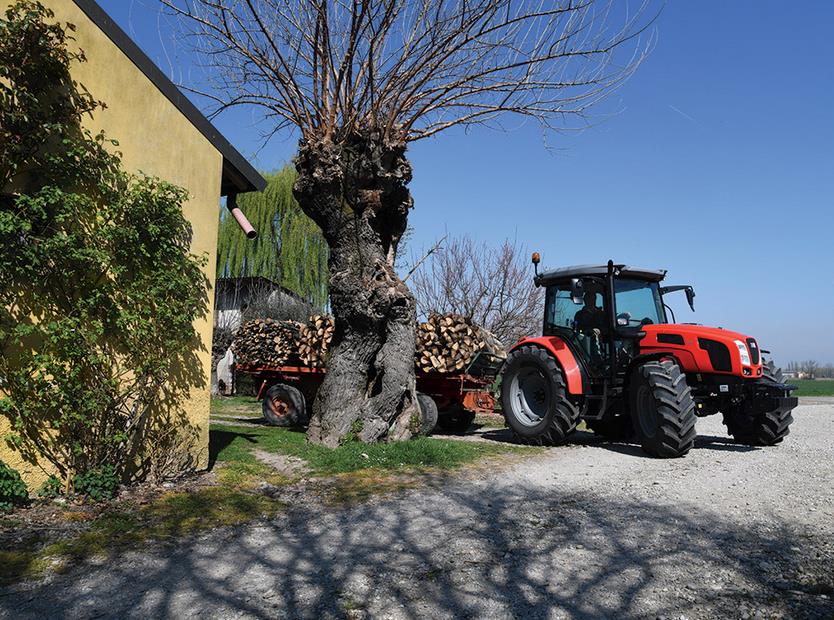

The SAME Explorer 100 MD is a 2 Wheel-Drive Tractor manufactured since 2019, weighing 3.92 tons and powered by a 75 kW engine. It …

The SAME Explorer 100 MD is a 2 Wheel-Drive Tractor manufactured since 2019, weighing 3.92 tons and powered by a 75 kW engine. It has a travel speed of 30 km/h and a transport length of 4.426 m, width of 2.273 m, and height of 2.702 m. It is equipped with a 2 control unit (ew/dw) and a cabin as special equipment.

Explorer 100 MD

Years of manufacture: 2019—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Explorer 100 MD SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 75 kW

Model series: Explorer

Back tyres: 16.9 R34

Front tyres: 11.00-16

Transport length: 4.426 m

Transport width: 2.273 m

Transport height: 2.702 m

Travel speed: 30 km/h

Transmission: 16/16

Transmission type: m

Weight: 3.92 t

Control unit: 2 ew/dw

Steering: m

Engine manuf.: SDF

Engine type: FARMotion

Displacement: 3.849 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 4

Emission level: III B

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: No
ISO Bus: No
Aircondition: No

Download datasheets (PDF)

SAME Explorer 100 MD FAQ

When was the SAME Explorer 100 MD first produced?

The SAME Explorer 100 MD was first produced in 2019.

What is the weight of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has a weight of 3.92 tonnes.

What are the physical dimensions of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has a transport length of 4.43 meters, a transport width of 2.27 meters, and a transport height of 2.7 meters.

What is the engine power of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has an engine power of 75.0 kW.

What is the travel speed of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has a travel speed of 30 km/h.

What are the drivetrain and transmission specifications of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has a mechanical transmission with 16 forward speeds and 16 reverse speeds.

What type of steering does the SAME Explorer 100 MD have?

The SAME Explorer 100 MD has mechanical steering.

What are the wheel and tyre specifications of the SAME Explorer 100 MD?

The SAME Explorer 100 MD has front tyres sized 11.00-16 and back tyres sized 16.9 R34.

How much is a SAME Explorer 100 MD 2WD Tractor (2019u20132025) worth?

The residual value of the SAME Explorer 100 MD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
