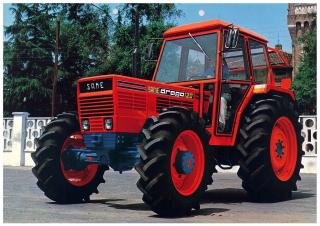

Drago 120 SAME Drago 120 Specifications & Technical Data (1978—1986)

Engine power: 85.8kW – Back tyres: 18.4/15-38 – Front tyres: 9.50-20 – Transport length: 4.24m – Transport width: 2.27m – Transport height: 2.81m

2WD Tractors SAME Drago 120

Technical specs - Drago 120 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
85.8 kW
Back tyres
18.4/15-38
Front tyres
9.50-20
Transport length
4.24 m
Transport width
2.27 m
Transport height
2.81 m
Transmission
12/4
Transmission type
m
Weight
4.15 t
three point category
2
Engine manuf.
SAME
Engine type
1056 P
Displacement
6.2 l
No. of cylinders
6
Cylinder bore x stroke
105x120 mm

More technical details, like: model series, travel speed, control unit, steering, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

SAME Drago 120 FAQ

When was the SAME Drago 120 manufactured?

The SAME Drago 120 was manufactured from 1978 to 1986.

What is the weight of the SAME Drago 120?

The SAME Drago 120 has a weight of 4.15 tonnes.

What are the physical dimensions of the SAME Drago 120 tractor?

The SAME Drago 120 tractor has a transport length of 4.24 meters, a transport width of 2.27 meters, and a transport height of 2.81 meters.

What is the engine power of the SAME Drago 120?

The SAME Drago 120 has an engine power of 85.8 kW.

What type of transmission does the SAME Drago 120 have?

The SAME Drago 120 is equipped with a mechanical transmission.

What are the wheel and tyre specifications of the SAME Drago 120?

The SAME Drago 120 has back tyres sized 18.4/15-38 and front tyres sized 9.50-20.

What is the three-point hitch category of the SAME Drago 120?

The SAME Drago 120 has a category 2 three-point hitch.

How much is a SAME Drago 120 2WD Tractor (1978u20131986) worth?

The residual value of the SAME Drago 120 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
