Dorado 90 SAME Dorado 90 Specifications & Technical Data (2019—2025)

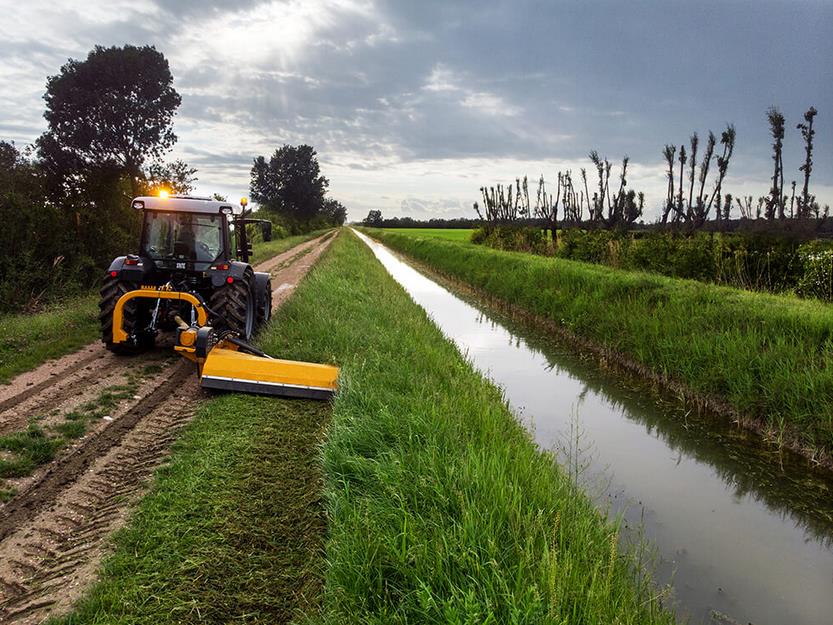

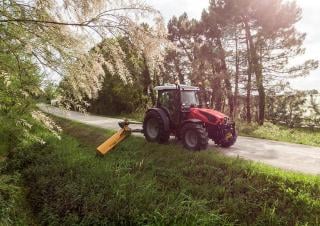

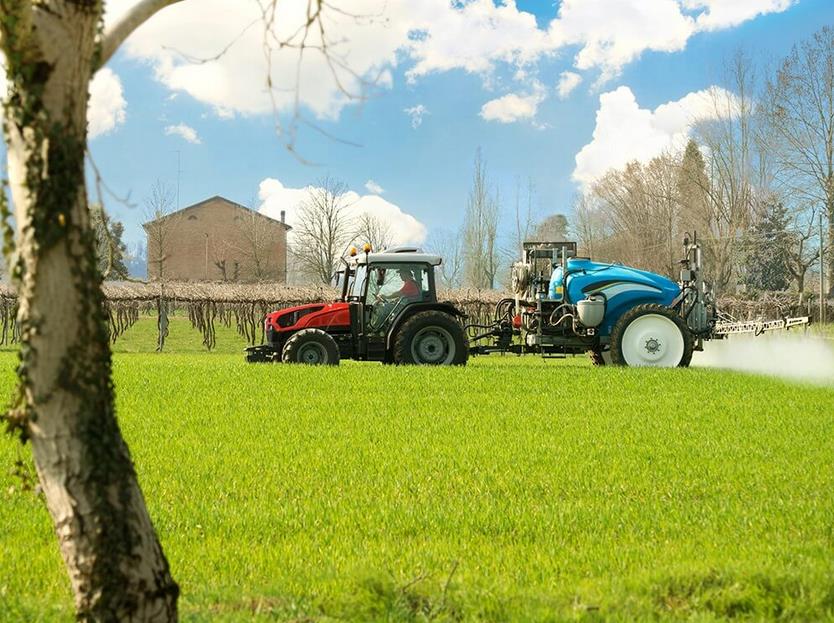

The SAME Dorado 90 is a 2 Wheel-Drive Tractor manufactured since 2019, weighing 3.2 tons and powered by a 65 kW engine. It has a t…

The SAME Dorado 90 is a 2 Wheel-Drive Tractor manufactured since 2019, weighing 3.2 tons and powered by a 65 kW engine. It has a travel speed of 30 km/h and a transport length of 4.257 m, width of 2.18 m, and height of 2.59 m. It is equipped with a 2 control unit (ew/dw) and a cabin as special equipment.

Dorado 90

Years of manufacture: 2019—2025

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Dorado 90 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 65 kW

Model series: Dorado

Back tyres: 480/70 R30

Front tyres: 7.50-18

Transport length: 4.257 m

Transport width: 2.18 m

Transport height: 2.59 m

Travel speed: 30 km/h

Transmission: 30/15

Transmission type: m

Weight: 3.2 t

Control unit: 2 ew/dw

Steering: m

three point category: 2

Engine manuf.: SDF

Engine type: FARMotion

Displacement: 2.887 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 3

Emission level: Tier 4 i

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: No
ISO Bus: No
Aircondition: No

Download datasheets (PDF)

SAME Dorado 90 FAQ

When was the SAME Dorado 90 first produced?

The SAME Dorado 90, part of the Dorado series, was first produced in 2019.

What is the weight of the SAME Dorado 90 tractor?

The SAME Dorado 90 tractor weighs 3.2 tonnes.

What are the physical dimensions of the SAME Dorado 90 tractor?

The SAME Dorado 90 tractor has a transport length of 4.26 meters, a transport width of 2.18 meters, and a transport height of 2.59 meters.

What is the engine power of the SAME Dorado 90?

The SAME Dorado 90 has an engine power of 65.0 kW.

What is the travel speed of the SAME Dorado 90?

The SAME Dorado 90 has a travel speed of 30 km/h.

What are the drivetrain and transmission specifications of the SAME Dorado 90?

The SAME Dorado 90 has a mechanical transmission with 30 forward speeds and 15 reverse speeds.

What type of steering does the SAME Dorado 90 have?

The SAME Dorado 90 has mechanical steering.

What are the wheel and tyre specifications of the SAME Dorado 90?

The SAME Dorado 90 has front tyres sized 7.50-18 and back tyres sized 480/70 R30.

What is the three-point hitch category of the SAME Dorado 90?

The SAME Dorado 90 has a category 2 three-point hitch.
