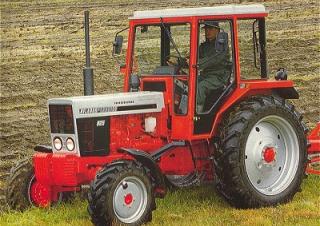

505 Belarus 505 Specifications & Technical Data (1983—1990)

The Belarus 505 is a 2 Wheel-Drive Tractor manufactured from 1983 to 1990. It has a weight of 3.62 tons, an engine power of 48.5 k…

The Belarus 505 is a 2 Wheel-Drive Tractor manufactured from 1983 to 1990. It has a weight of 3.62 tons, an engine power of 48.5 kW, a travel speed of 28 km/h, a transport length of 3.86 m and a transport height of 2.71 m.

2WD Tractors Belarus 505

Technical specs - 505 Belarus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
48.5 kW
Back tyres
15.5-38
Front tyres
7.50-20
Transport length
3.86 m
Transport height
2.71 m
Travel speed
28 km/h
Transmission
9/2
Weight
3.62 t
Engine manuf.
MTZ
Engine type
D-60
Displacement
4.8 l
Revolutions at max torque
1300 rpm
Max. torque
267.1 Nm
No. of cylinders
4
Cylinder bore x stroke
110x125 mm

More technical details, like: model series, transport width, transmission type, control unit, steering, three point category, dimension lxwxh, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Belarus 505 FAQ

When was the Belarus 505 manufactured?

The Belarus 505 was manufactured from 1983 to 1990.

What is the weight of the Belarus 505 tractor?

The Belarus 505 tractor has a weight of 3.62 tonnes.

What are the physical dimensions of the Belarus 505 tractor?

The Belarus 505 tractor has a transport length of 3.86 meters and a transport height of 2.71 meters.

What is the engine power of the Belarus 505 tractor?

The Belarus 505 tractor has an engine power of 48.5 kW.

What is the travel speed of the Belarus 505 tractor?

The Belarus 505 tractor has a travel speed of 28 km/h.

What are the wheel and tyre specifications of the Belarus 505 tractor?

The Belarus 505 tractor has front tyres sized 7.50-20 and back tyres sized 15.5-38.

How much is a Belarus 505 2WD Tractor (1983u20131990) worth?

The residual value of the Belarus 505 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
